Polaris•Schematic assembly

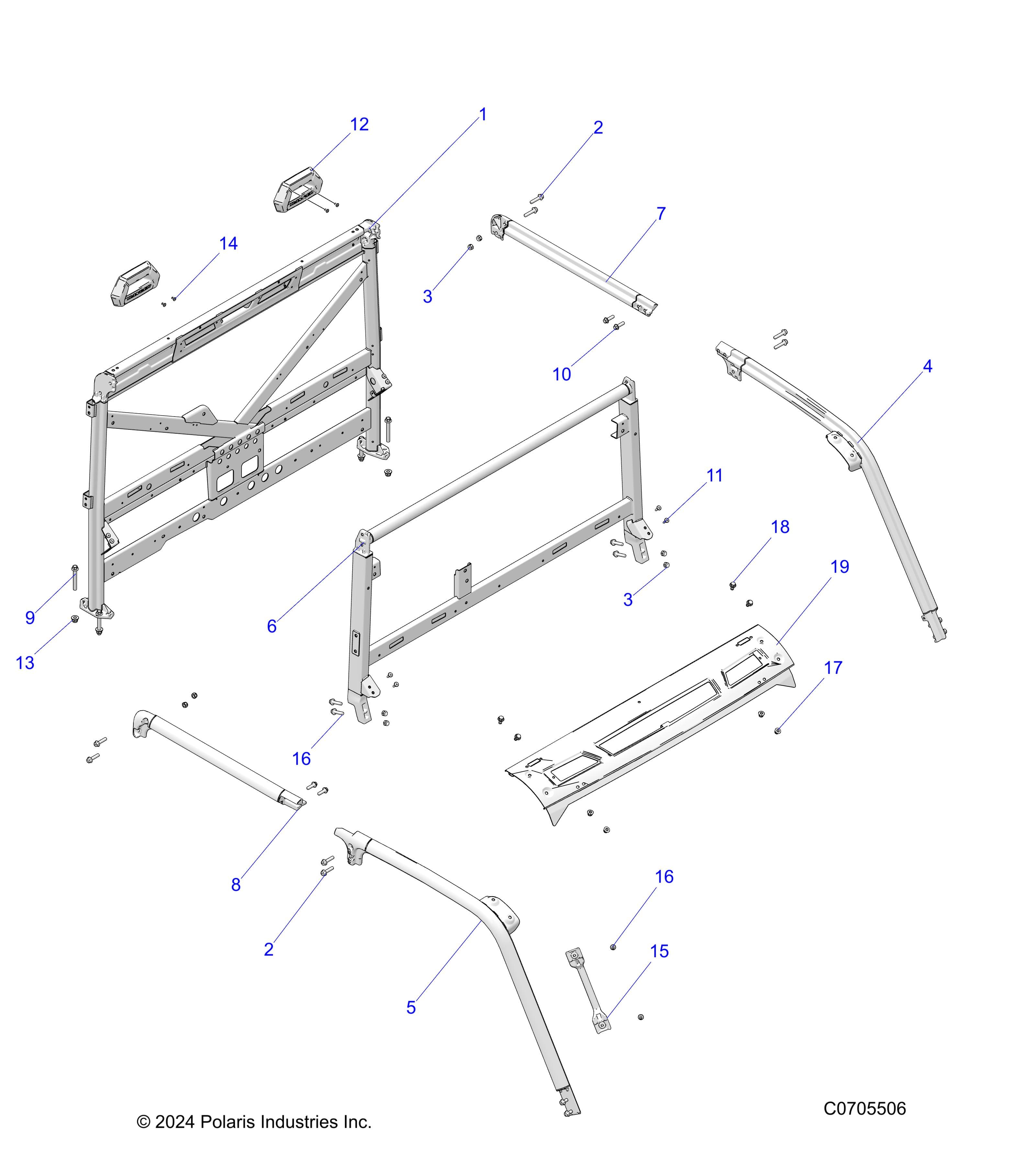

CHASSIS, CAB FRAME - R26RST99AL (C0705506)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION Assembly ID: 247548
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029158-458 | WELD-CAB FRAME,REAR,M.BLK | 1 | $1,299.99 | Out of stock Est. Aug 6, 2026 | |
| 2 | 7521333-45 | SCR-HXFL-M10X1.5X45 10.9 ZFB | 16 | $3.99 | In stock | |
| 3 | 7547746 | NUT-HEX-M10X1.5 10 ZB3 NYL | 12 | $2.99 | In stock | |
| 4 | 1023336-458 | WELD-CAB FRAME, FRT, LH, BLK | 1 | $409.99 | In stock | |
| 5 | 1023337-458 | WELD-CAB FRAME, FRT, RH, BLK | 1 | $409.99 | In stock | |
| 6 | 1029220-458 | WELD-CAB FRAME,CTR,BLK | 1 | $519.99 | In stock | |
| 7 | 1023338-458 | WELD-CAB FRAME, REAR, LH, BLK | 1 | $124.99 | In stock | |
| 8 | 1023339-458 | WELD-CAB FRAME, REAR, RH, BLK | 1 | $124.99 | In stock | |
| 9 | 7518705 | SCR-SHXFL-M12X1.75X90 10.9 ZPC | 4 | $10.99 | In stock | |
| 10 | 7518334 | SCREW-M10X1.50X35 HX/FL-Y/D | 4 | $5.99 | In stock | |
| 11 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 8 | $4.99 | In stock | |
| 12 | 5456311-070 | HEADREST-BASIC,RGR,BLK | 2 | $69.99 | In stock | |
| 13 | 7547441 | NUT-HXFL M12X1.75 8 ZOD NYL | 4 | $5.99 | In stock | |
| 14 | 7621460 | RIVET-POP 3/16 (.376-.500) AL-LFB | 4 | $1.49 | In stock | |
| 15 | 5450844-070 | HANDLE-GRAB,ROPS,BLK | 1 | $39.99 | In stock | |
| 16 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | $2.99 | In stock | |
| 17 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 4 | $2.99 | In stock | |
| 18 | 7519905 | SCR-HXFL-M10X1.5X20 10.9 RIE P | 4 | $2.99 | In stock | |
| 19 | 2208972 | K-PLATE,WSHLD MNT,UPR,RGR,CREW [INCLUDES DECALS] | 1 | $259.99 | In stock |
