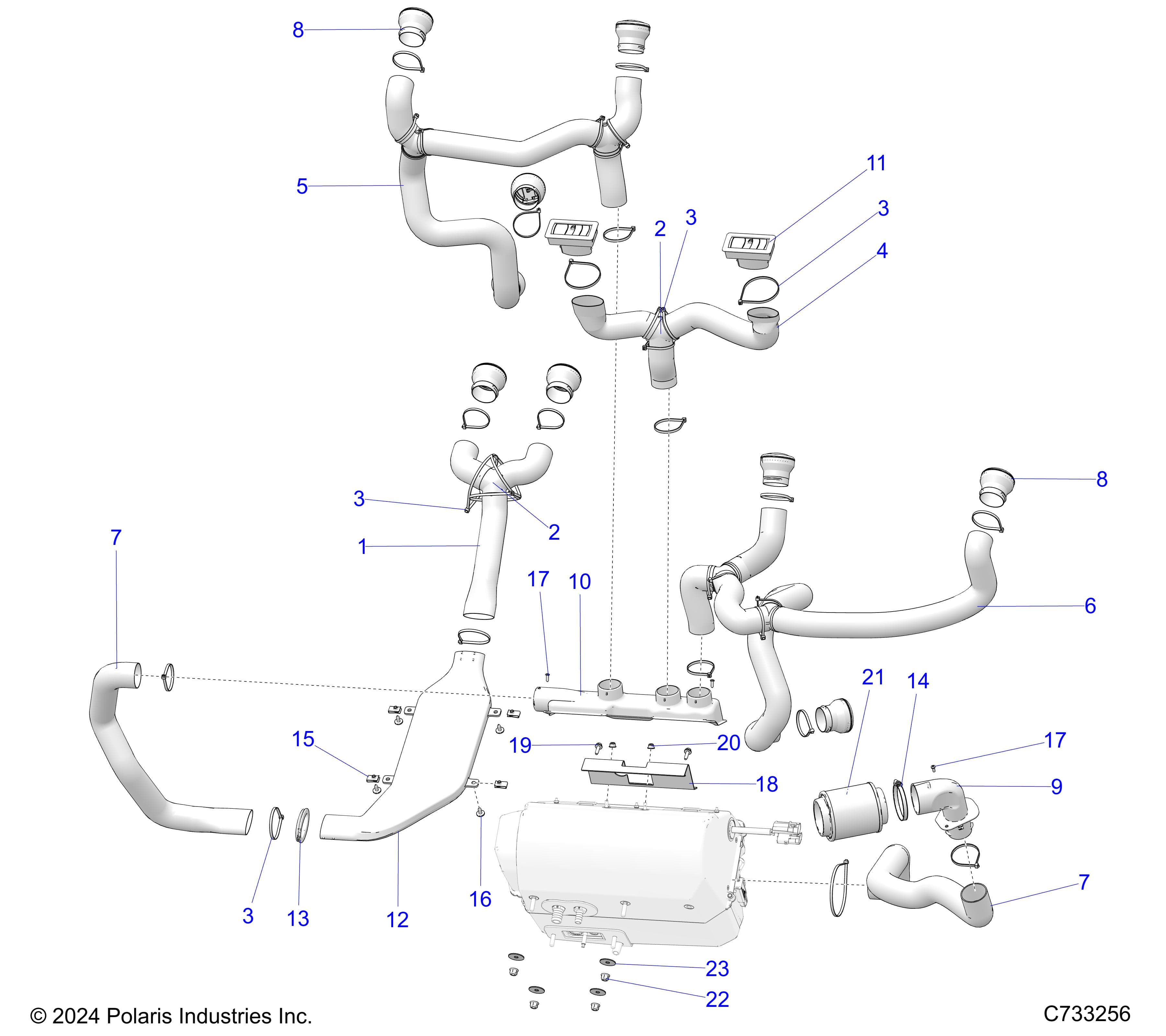

2026 RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION — BODY, HVAC DUCTING - TO 10/01/2025 diagram

Schematic diagram

Polaris•Schematic assembly

BODY, HVAC DUCTING - TO 10/01/2025

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION Assembly ID: 247534

Vehicle Compatibility

  • 2026 Polaris RANGER 1000 XP CREW NORTHSTAR TEXAS EDITION

Checkout Note

Add all available parts in this assembly to your cart. You can also add individual parts using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
12640268DUCTING-REAR1$134.99
In stock
25452894DUCT-Y, HOSE, HTR, XORV6$69.99
In stock
37080761CABLE-TIE,10-102MM,WEATH.-RES.36$2.99
In stock
42637206ASM-DUCTING,DASH,CENTER [INCLUDES 1 OF 2 & 3 OF 3]1$144.99
In stock
52637207ASM-DUCTING,DASH,RH [INCLUDES 1 OF 2 & 3 OF 3]1$159.99
In stock
62639540ASM-DUCTING,DASH,LH [INCLUDES 1 OF 2 & 3 OF 3]1$154.99
In stock
75416208HOSE-FRESH AIR2$44.99
In stock
85452877VENT-ROUND8$39.99
In stock
95453415SUPPORT-FILTER1$34.99
In stock
105453899MANIFOLD-AIR DISTRIBUTOR, HVAC1$44.99
In stock
115453900VENT-DEFROST2$44.99
In stock
125466732DUCT-HVAC,REAR1$84.99
In stock
135814697GROMMET-REAR HVAC DUCT,BLK1$8.99
In stock
147080707CLAMP-BAND,NARROW 60-80MM1$3.99
In stock
157081305CLIP-U SPEED NUT4$2.49
In stock
167518936SCR-M6X1X16 TR/TX-M4$4.99
In stock
177519091SCR-#10X1/2-HI/LO-PN-T25, TRX-M4$3.99
In stock
185263841-329BRKT-MOUNT, HVAC UNIT, BLK1$29.99
In stock
197518529SCR-M6X1.0X20,HXHD,FLG,TDFM,BK2$1.49
In stock
207547339NUT-M6X1.0, FLG-NYLOC-OLIVE D2$1.49
In stock
211262218ASM-FILTER,AIR BOX1$29.99
In stock
227547332NUT- M8X1.25, FLG, NYLOC-OLIVE D4$4.99
In stock
237558715WSHR-FLAT-M8X2.0 LARGE ZTB4$15.99
In stock
