Polaris•Schematic assembly

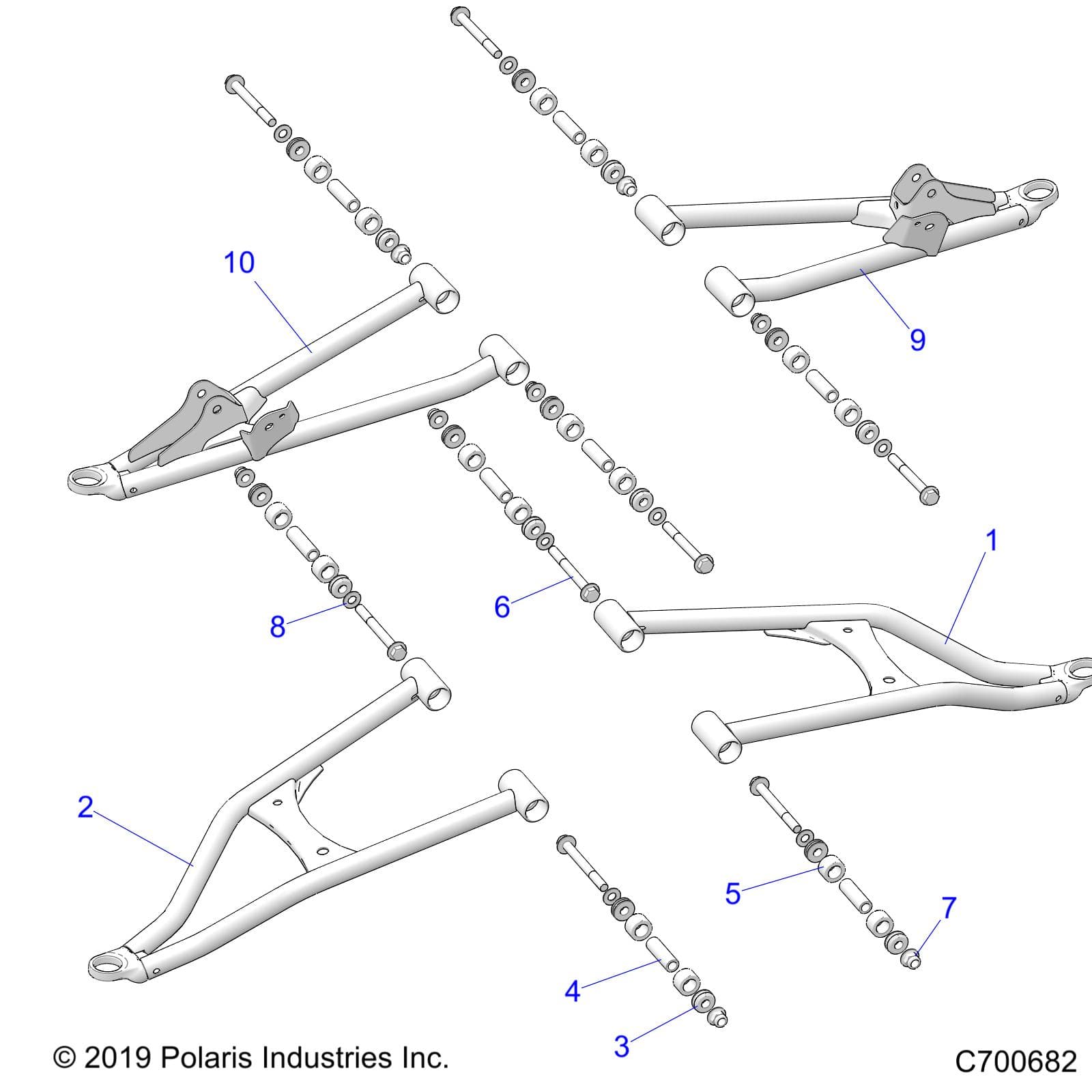

SUSPENSION, FRONT A ARMS - R26RSF99AL (C700682)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW TEXAS EDITION Assembly ID: 247509
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW TEXAS EDITION
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1025701-458 | WELD-A-ARM,FR,LWR,HC,LH,BLK | 1 | $189.99 | In stock | |
| 2 | 1025702-458 | WELD-A-ARM,FR,LWR,HC,RH,BLK | 1 | $189.99 | In stock | |
| 3 | 1543612 | ASM-PIVOT CAP, SEALED, M12 [INCLUDES CAP & ORING] | 16 | $6.99 | In stock | |
| 3 | 5139992 | CAP-PIVOT SEAL,M12 | 16 | $4.99 | In stock | |
| 3 | 5139992 | CAP-PIVOT SEAL,M12 | 16 | $4.99 | In stock | |
| 4 | 5144660 | SHAFT-PIVOT,SHORT,M12 | 8 | $10.99 | In stock | |
| 5 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 16 | $3.99 | In stock | |
| 6 | 7520479 | SCR-HXFL-M12X1.5X105 10.9 ZOD | 8 | $8.99 | In stock | |
| 7 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 8 | $5.99 | In stock | |
| 8 | 7556287 | WSHR-13.0X24.0X2.5 ZPC | 8 | $8.99 | In stock | |
| 9 | 1025698-458 | WELD-A-ARM,FR,UPR,LH,BLK | 1 | $194.99 | In stock | |
| 10 | 1025699-458 | WELD-A-ARM,FR,UPR,RH,BLK | 1 | $194.99 | In stock |
