Polaris•Schematic assembly

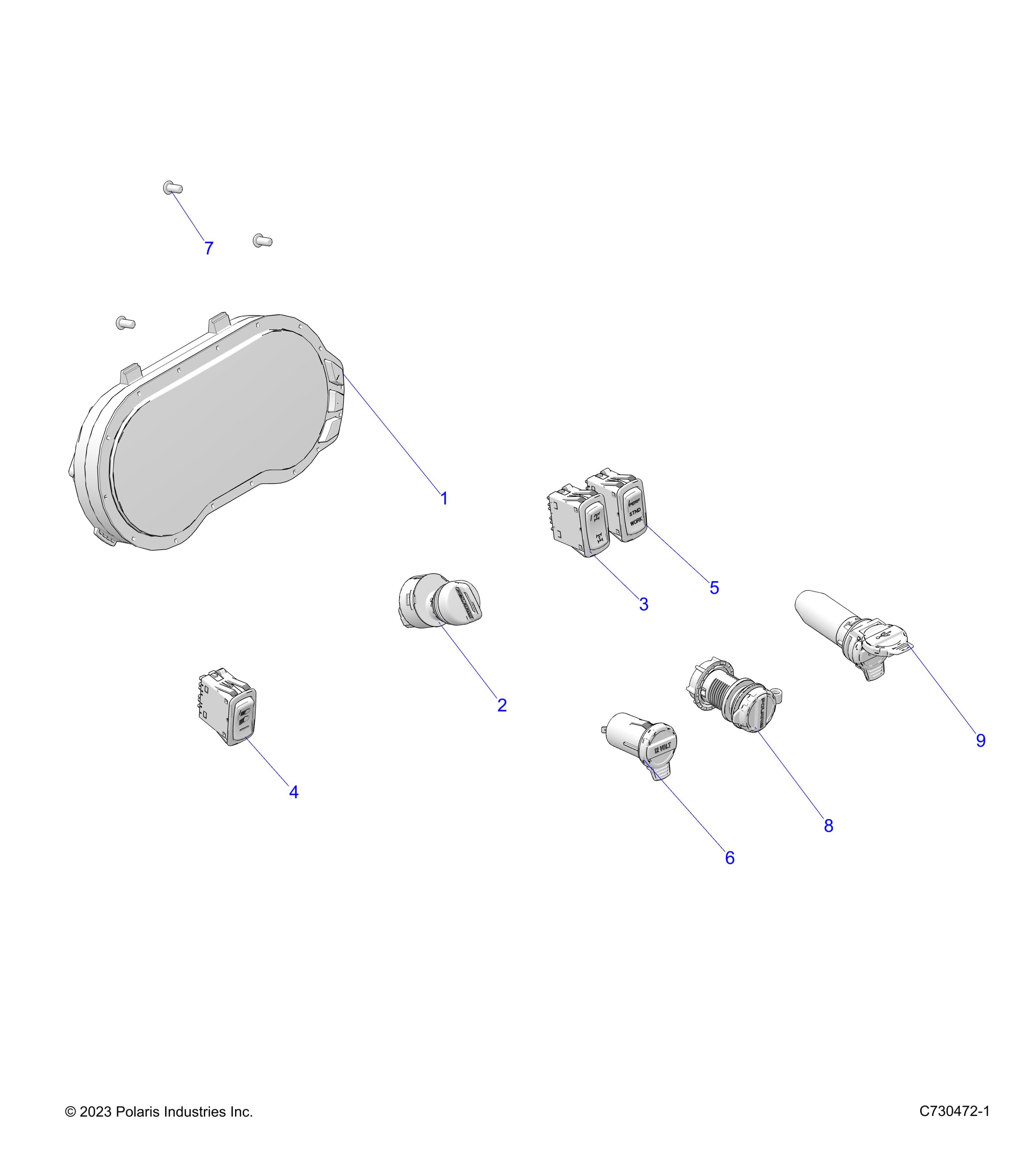

ELECTRICAL, DASH INSTRUMENTS - R26RSF99AL (C730907)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW TEXAS EDITION Assembly ID: 247486
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW TEXAS EDITION
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3286951 | ASM-C4,RZR,RGR,GNRL,500K [TO 09/30/2025] | 1 | Price TBD | Out of stock | |
| 1 | 3287074 | ASM-C4,RZR,RGR,GNRL,500K [FROM 09/30/2025] | 1 | $509.99 | In stock | |
| 2 | 4080345 | SWITCH-KEY,4 POSITION,SEALED [TO 12/05/2025] | 1 | Price TBD | Out of stock | |
| 2 | 4083542 | SWITCH-KEY,4 POSITION,SEALED [FROM 12/05/2025] | 1 | $139.99 | In stock | |
| 3 | 4018371 | SWITCH-AWD | 1 | $119.99 | In stock | |
| 4 | 4080274-01 | SWITCH, HEADLIGHT | 1 | $74.99 | In stock | |
| 5 | 4080274-07 | SWITCH-DRIVEMODE,3MODE,RGR | 1 | $64.99 | Out of stock Est. Sep 28, 2026 | |
| 6 | 4080487 | RECEPTACLE-POD MNT,12 VOLT | 2 | $44.99 | In stock | |
| 7 | 7518330 | SCR-TORX BTNHD,M6X12,0600129 | 3 | $5.99 | In stock | |
| 8 | 2415295 | ASM-CHARGE PORT,BASE | 1 | $54.99 | In stock | |
| 8 | 2415198 | PLUG-HARNESS CHARGE PORT | 1 | Price TBD | Out of stock | |
| 8 | 5417215 | CAP-CHARGE PORT | 1 | $15.99 | In stock | |
| 8 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 9 | 4019210 | PORT-USB | 1 | $109.99 | In stock |
