Schematic diagram
Polaris•Schematic assembly

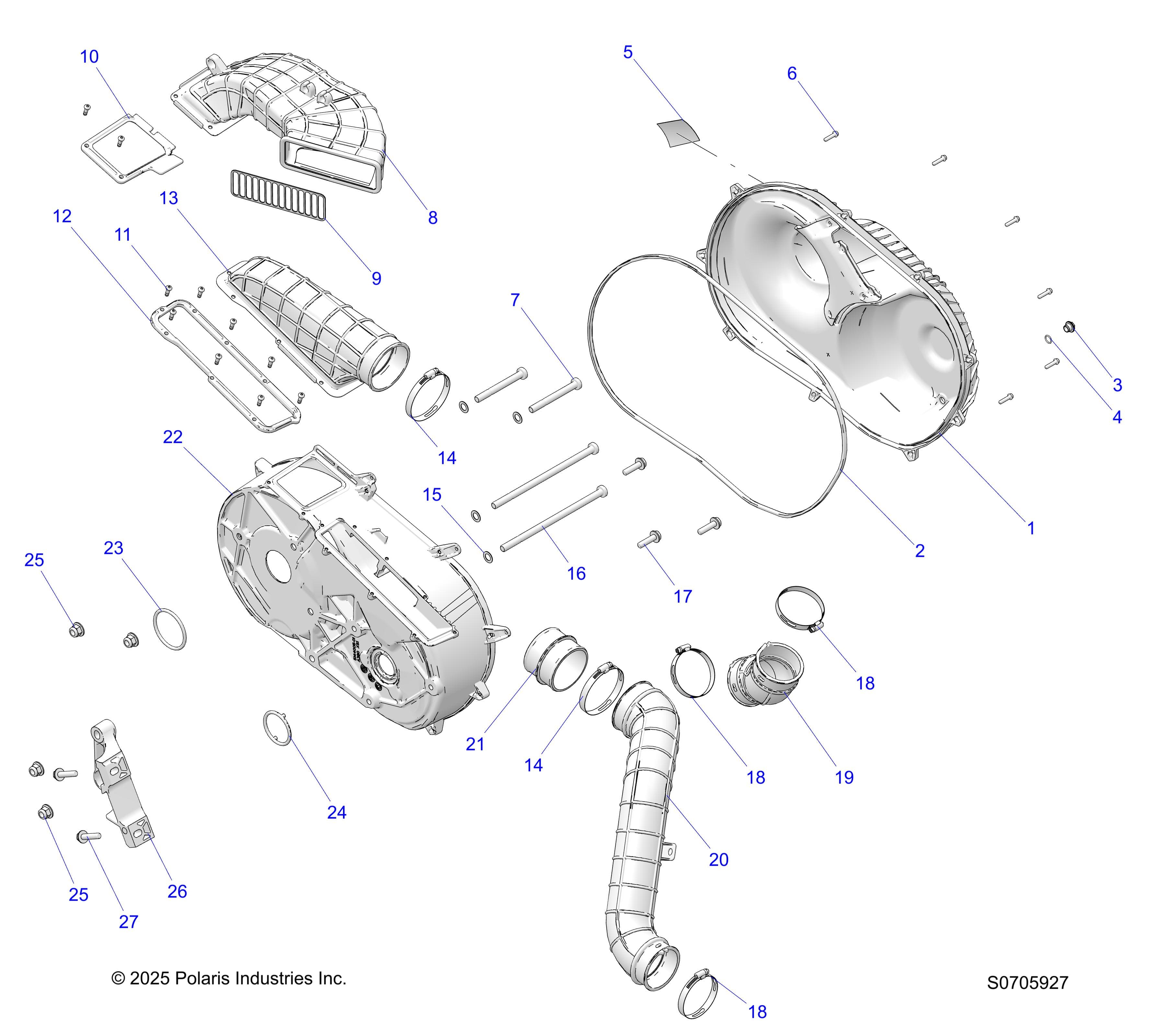

DRIVE TRAIN, CLUTCH COVER & DUCTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 247474
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 1 part is out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2207560 | K-CVR, CLUTCH, OTR, RGR XP [INCLUDES 1,11,12 &15] | 1 | $264.99 | In stock | |
| 2 | 5417715 | SEAL-OUTER CLUTCH COVER | 1 | $29.99 | In stock | |
| 3 | 5454915 | PLUG-DRAIN,9/16-18,PP | 1 | $6.99 | In stock | |
| 4 | 5416606 | O-RING-0.489X0.629X0.070,EPDM | 1 | $4.49 | In stock | |
| 5 | 7177469 | DECAL-BELT,WARNING/CHECK | 1 | Price TBD | Out of stock | |
| 6 | 7519754 | SCR-HXFLG,M6X1.0X25,10.9 | 9 | $4.99 | In stock | |
| 7 | 7520945 | SCR-TXBH-M12X1.75X110 8.8 SPC | 2 | $9.99 | In stock | |
| 8 | 5418050 | DUCT-CLUTCH,OUTLET | 1 | $109.99 | In stock | |
| 9 | 5264258 | BRKT-SCREEN,BELT | 1 | $34.99 | In stock | |
| 10 | 5634514 | MOUNT-OUTLET DUCT | 1 | $34.99 | In stock | |
| 11 | 7518616 | BOLT-M6X1.0X20,PH/TX-OLIVE D | 10 | $1.49 | In stock | |
| 12 | 5634221 | PLATE-INLET CLUTCH DUCT SEAL | 1 | $44.99 | In stock | |
| 13 | 5418049 | DUCT-CLUTCH,INLET | 1 | $109.99 | In stock | |
| 14 | 7081969 | CLAMP-HOSE SLOTTED,92-100 DIA | 2 | $12.99 | In stock | |
| 15 | 7555919 | WASHER-.510X.840X.031 Y | 4 | $4.99 | In stock | |
| 16 | 7520946 | SCR-TXBH-M12X1.75X245 8.8 SPC | 2 | $16.99 | In stock | |
| 17 | 7521294 | SCR-HHSEMS-M10X1.5X40 10.9 SPC | 3 | $6.99 | In stock | |
| 18 | 7082314 | CLAMP-HOSE SLOTTED,75-90 DIA | 3 | $12.99 | In stock | |
| 19 | 5416135 | HOSE-JOINT | 1 | $54.99 | In stock | |
| 20 | 5416170 | HOSE-CLUTCH INLET TO TUNNEL | 1 | $74.99 | In stock | |
| 21 | 5454194 | BOOT-HOSE ADAPTER | 1 | $29.99 | In stock | |
| 22 | 5144005 | COVER-CLUTCH,INNER,MACH | 1 | $239.99 | In stock | |
| 23 | 5415647 | O-RING-0.489X0.629X0.070,EPDM | 1 | $1.99 | In stock | |
| 24 | 5417662 | O-RING-2.25X2.625X.21,NBR,BARB | 1 | $10.99 | In stock | |
| 25 | 7547441 | NUT-HXFL M12X1.75 8 ZOD NYL | 4 | $5.99 | In stock | |
| 26 | 5144809 | BRKT-TRANSJOINT,MAG,MACH | 1 | $59.99 | In stock | |
| 27 | 7518531 | SCR-HXFL-M10X1.5X1.5 8.8 ZY3 | 2 | $5.99 | In stock |
