Polaris•Schematic assembly
CHASSIS, MAIN FRAME & SKID PLATES
Product Description

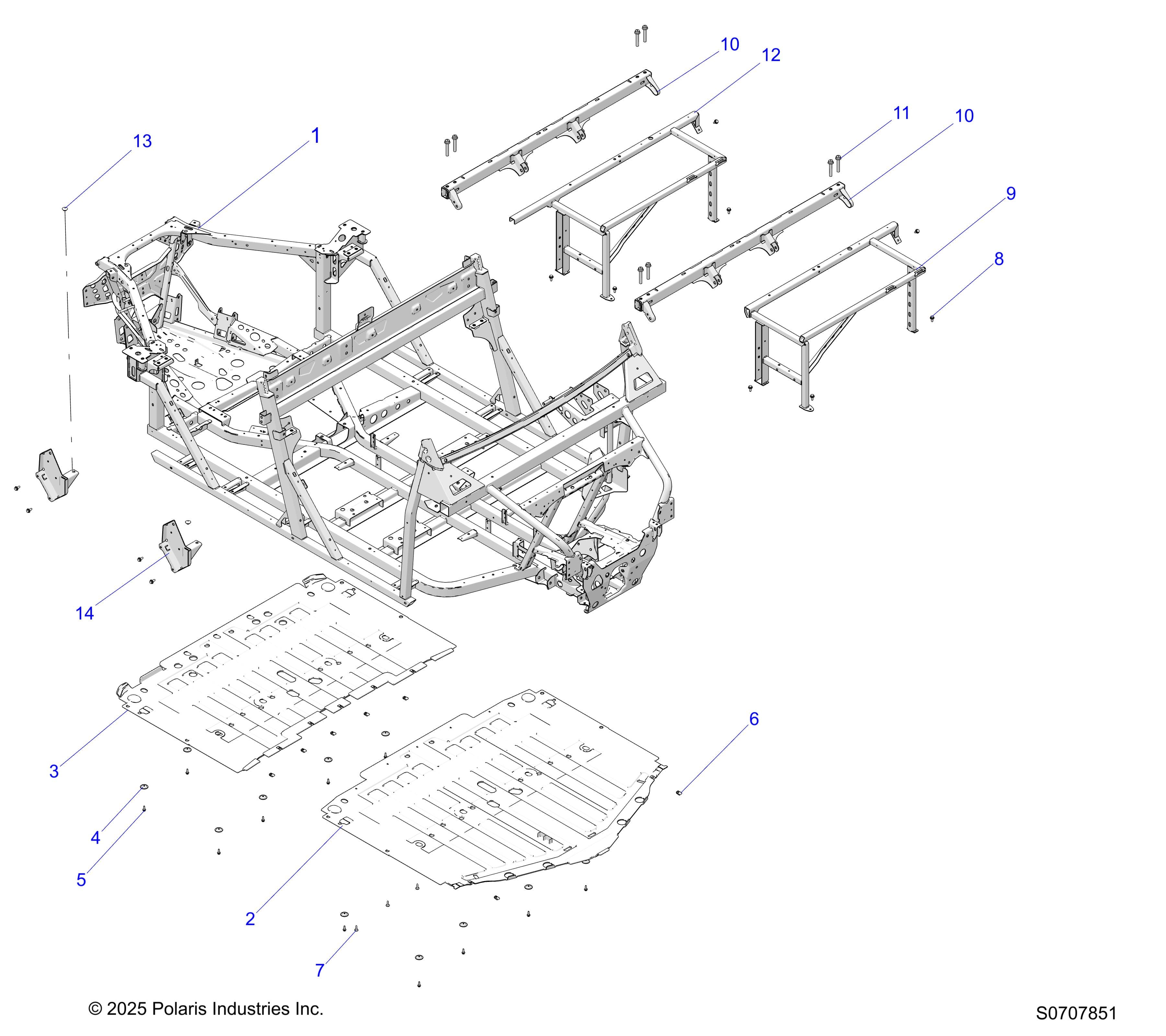

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS Assembly ID: 247457
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2212946 | K-FRAME,MAIN,RGR XP,CREW,BLK [INCLUDES DECAL] | 1 | $3,239.99 | Out of stock | |
| 2 | 5466235-070 | PLATE-SKID,ZG,CREW,FRT,BLK | 1 | $139.99 | Out of stock Est. Aug 31, 2026 | |
| 3 | 5466236-070 | PLATE-SKID,ZG,CREW,REAR,BLK | 1 | $114.99 | In stock | |
| 4 | 7556065 | WASHER-SKID PLATE | 15 | $5.99 | In stock | |
| 5 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 15 | $1.49 | In stock | |
| 6 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 7 | $1.49 | In stock | |
| 7 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 5 | $4.99 | In stock | |
| 8 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 12 | $2.99 | In stock | |
| 9 | 1024457-329 | WELD-SEAT BASE, MAIN, ECOAT | 1 | $304.99 | In stock | |
| 10 | 1029162-329 | WELD-CROSSBAR,BLK | 2 | $364.99 | In stock | |
| 11 | 7521334-75 | SCR-HXFL-M12X1.75X75 10.9 ZFB | 8 | $1.99 | In stock | |
| 12 | 1024456-329 | WELD-SEAT BASE, MAIN, ECOAT | 1 | $304.99 | In stock | |
| 13 | 5413441 | GROMMET, SEAT, BASE | 2 | $4.99 | In stock | |
| 14 | 1023100-458 | WELD-SEAT SPPRT, MNT, PASS, M. BLK | 2 | $49.99 | In stock |
