Polaris•Schematic assembly

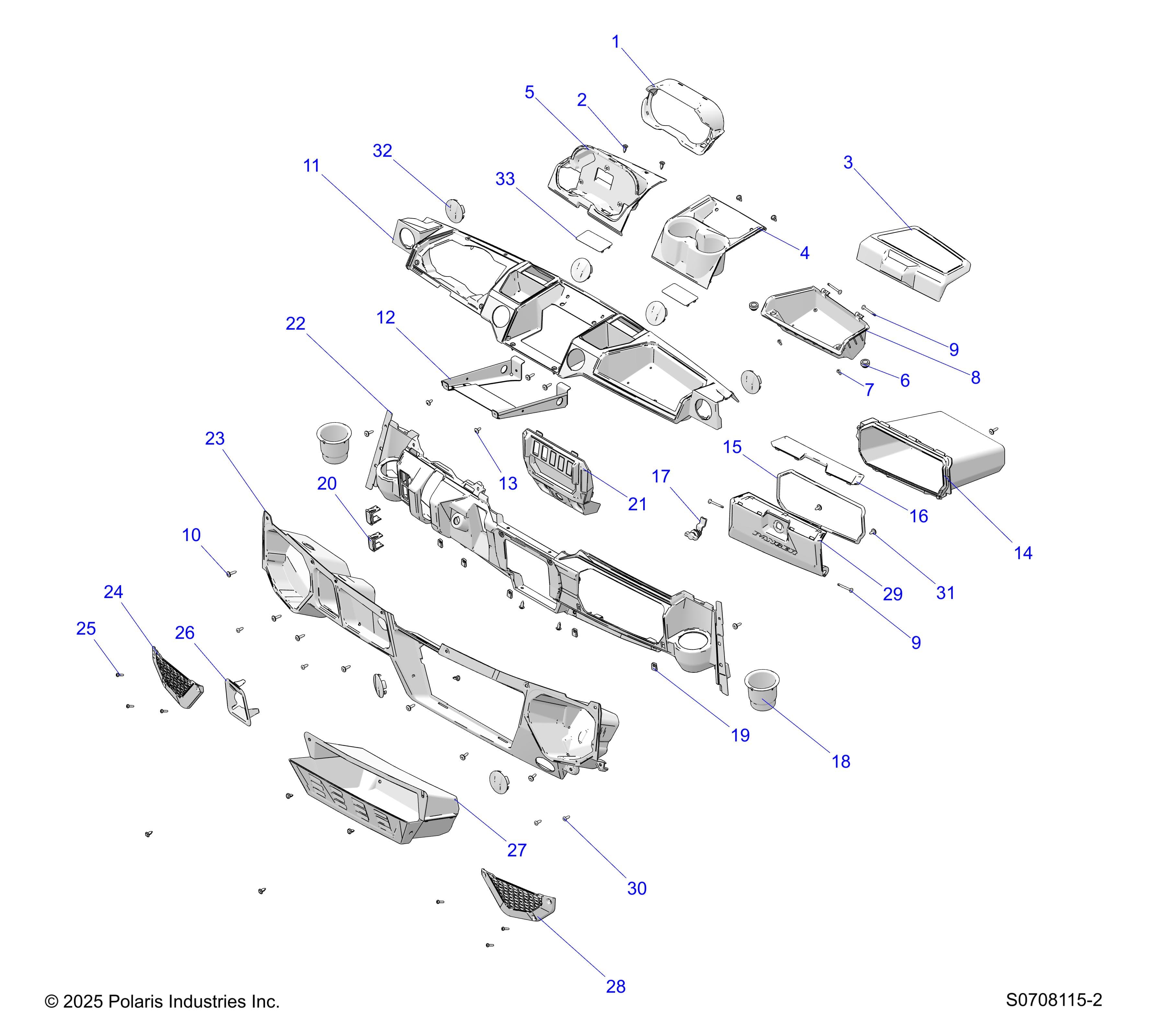

BODY, DASH
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW TEXAS EDITION Assembly ID: 247440
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW TEXAS EDITION
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5454159-070 | DASH-GAUGE,BEZEL,C4,BLK | 1 | $49.99 | In stock | |
| 2 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 0 | $1.49 | In stock | |
| 3 | 2640461 | ASM-UPPER GLOVEBOX [INCLUDES 3,6,8 & 9] | 1 | $114.99 | In stock | |
| 3 | 5453789-070 | COVER-UPPER GLOVEBOX,BLK | 1 | $69.99 | In stock | |
| 4 | 5453749-070 | DASH-CENTER TRAY, BLK | 1 | $18.99 | In stock | |
| 5 | 5454158-070 | DASH-GAUGE,HOOD,C4,BLK | 1 | $49.99 | In stock | |
| 6 | 5418500 | GROMMET-RUBBER,MOUNT,.25" | 2 | $1.99 | In stock | |
| 7 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 4 | $4.99 | In stock | |
| 8 | 5453790-070 | BIN-UPPER GLOVEBOX,BLK | 1 | $39.99 | In stock | |
| 9 | 5439091 | PIN-HINGE,GLOVEBOX | 4 | $4.99 | In stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 0 | $4.99 | In stock | |
| 11 | 5467298-070 | DASH-UPPER,BLK | 1 | $194.99 | In stock | |
| 12 | 1024884-329 | WELD-DASH SUPPORT,BLK | 1 | $64.99 | In stock | |
| 13 | 7519092 | SCR-TXTH-M6X1.0X15 ZPB TAP | 2 | $1.49 | In stock | |
| 14 | 5453745-070 | BIN-GLOVEBOX, BLK | 1 | $69.99 | In stock | |
| 15 | 5522052 | SEAL-GLOVEBOX | 1 | $3.49 | In stock | |
| 16 | 5456615-802 | TRIM-GLOVEBOX,XP,HVYMETSMK | 1 | $64.99 | In stock | |
| 17 | 7081425 | LATCH-1/4 TURN,CAM | 1 | $7.99 | In stock | |
| 18 | 5436836 | HOLDER-CUP | 2 | $24.99 | In stock | |
| 19 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 0 | $1.49 | In stock | |
| 20 | 4018108 | SWITCH-PLUG,BLANK | 2 | $15.99 | In stock | |
| 21 | 5457132-070 | DASH-CONTROLS,BLK | 1 | $49.99 | In stock | |
| 22 | 5456187-070 | DASH-MAIN,4SWITCH,BLK | 1 | $329.99 | In stock | |
| 23 | 5459843-070 | DASH-STORAGE,BLK [TO 09/15/2025] | 1 | $214.99 | In stock | |
| 23 | 5467299-070 | DASH-STORAGE,BLK [FROM 09/15/2025] | 1 | $384.99 | In stock | |
| 24 | 5459839-070 | COVER-PLATE,STORAGE,LH,BLK | 1 | $11.99 | In stock | |
| 25 | 7527826 | SCR-TXTR-M5X25 ZTB BOSS | 6 | $2.99 | In stock | |
| 26 | 5418475-070 | GROMMET-BOTTLE,BLK | 1 | $10.99 | In stock | |
| 27 | 5455985-070 | BIN-LOWER,STORAGE,BLK | 1 | $59.99 | In stock | |
| 28 | 5459840-070 | COVER-PLATE,STORAGE,RH,BLK | 1 | $11.99 | In stock | |
| 29 | 5456357-070 | COVER-GLOVEBOX,XP,BLK | 1 | $44.99 | In stock | |
| 30 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 31 | 7518936 | SCR-M6X1X16 TR/TX-M | 3 | $4.99 | In stock | |
| 32 | 5466681-070 | COVER-HVAC,VENT,BLK [TO 09/15/2025] | 4 | $5.99 | In stock | |
| 32 | 5466681-070 | COVER-HVAC,VENT,BLK [FROM 09/15/2025] | 6 | $5.99 | In stock | |
| 33 | 5466682-070 | COVER-DEFROSTER,BLK | 2 | $5.99 | In stock |
