Schematic diagram
Polaris•Schematic assembly
BODY, DASH
Product Description

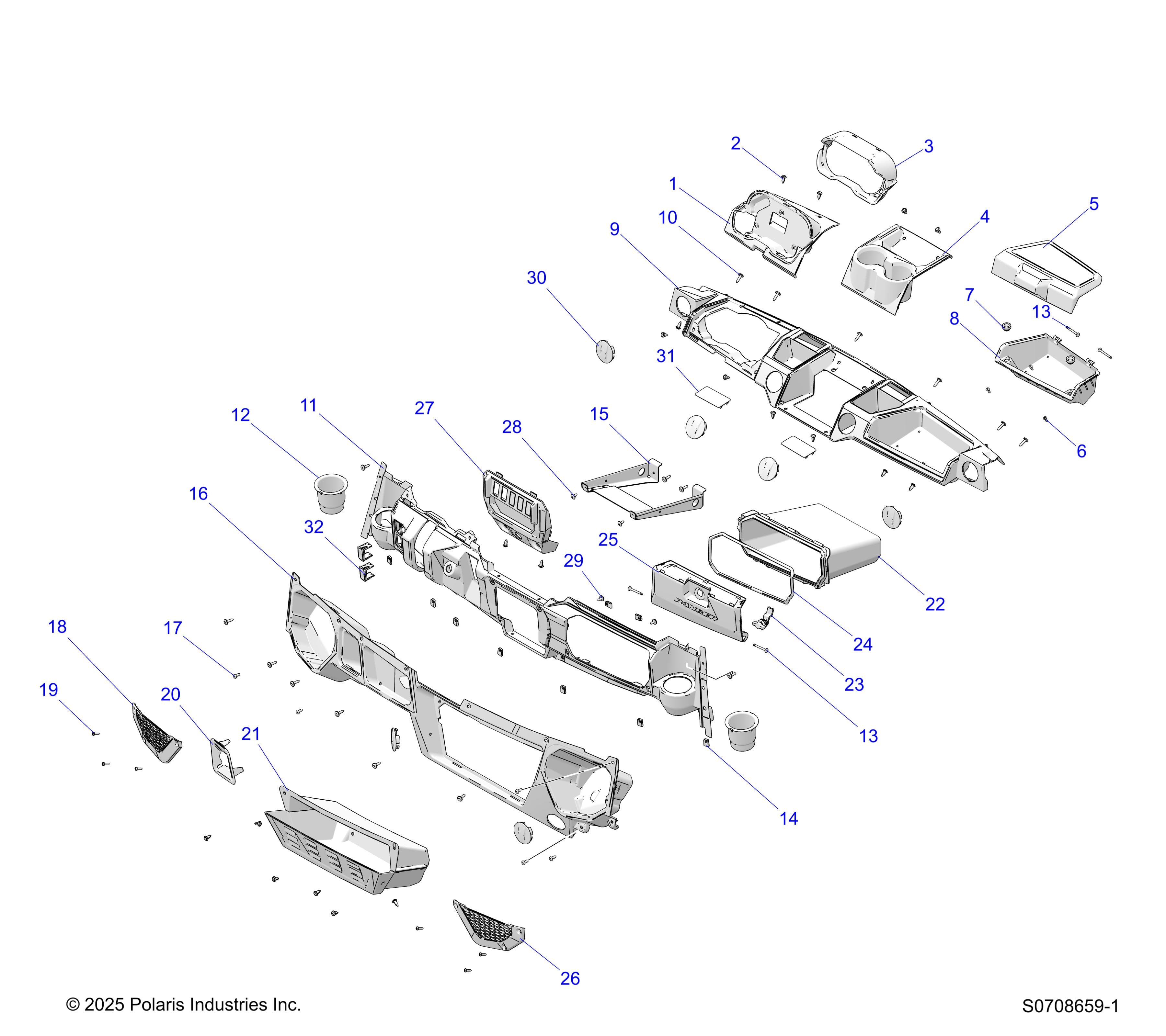

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW PREMIUM Assembly ID: 247378
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW PREMIUM
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5454158-070 | DASH-GAUGE,HOOD,C4,BLK | 1 | $49.99 | In stock | |
| 2 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 0 | $1.49 | In stock | |
| 3 | 5454159-070 | DASH-GAUGE,BEZEL,C4,BLK | 1 | $49.99 | In stock | |
| 3 | 5466681-070 | COVER-HVAC,VENT,BLK [FROM 09/15/2025] | 6 | $5.99 | In stock | |
| 4 | 5453749-070 | DASH-CENTER TRAY, BLK | 1 | $18.99 | In stock | |
| 5 | 2640461 | ASM-UPPER GLOVEBOX [INCLUDES 5,7,8 & 13] | 1 | $114.99 | In stock | |
| 5 | 5453789-070 | COVER-UPPER GLOVEBOX,BLK | 1 | $69.99 | In stock | |
| 6 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 4 | $4.99 | In stock | |
| 7 | 5418500 | GROMMET-RUBBER,MOUNT,.25" | 2 | $1.99 | In stock | |
| 8 | 5453790-070 | BIN-UPPER GLOVEBOX,BLK | 1 | $39.99 | In stock | |
| 9 | 5467298-070 | DASH-UPPER,BLK | 1 | $194.99 | In stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 0 | $4.99 | In stock | |
| 11 | 5456187-070 | DASH-MAIN,4SWITCH,BLK | 1 | $329.99 | In stock | |
| 12 | 5436836 | HOLDER-CUP | 2 | $24.99 | In stock | |
| 13 | 5439091 | PIN-HINGE,GLOVEBOX | 4 | $4.99 | In stock | |
| 14 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 10 | $1.49 | In stock | |
| 15 | 1024884-329 | WELD-DASH SUPPORT,BLK | 1 | $64.99 | In stock | |
| 16 | 5459843-070 | DASH-STORAGE,BLK [TO 09/15/2025] | 1 | $214.99 | In stock | |
| 16 | 5467299-070 | DASH-STORAGE,BLK FROM 09/15/2025 | 1 | $384.99 | In stock | |
| 17 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 5 | $3.99 | In stock | |
| 18 | 5459839-070 | COVER-PLATE,STORAGE,LH,BLK | 1 | $11.99 | In stock | |
| 19 | 7527826 | SCR-TXTR-M5X25 ZTB BOSS | 6 | $2.99 | In stock | |
| 20 | 5418475-070 | GROMMET-BOTTLE,BLK | 1 | $10.99 | In stock | |
| 21 | 5455985-070 | BIN-LOWER,STORAGE,BLK | 1 | $59.99 | In stock | |
| 22 | 5453745-070 | BIN-GLOVEBOX, BLK | 1 | $69.99 | In stock | |
| 23 | 7081425 | LATCH-1/4 TURN,CAM | 1 | $7.99 | In stock | |
| 24 | 5522052 | SEAL-GLOVEBOX | 1 | $3.49 | In stock | |
| 25 | 5453744-070 | COVER-GLOVEBOX,BLK | 1 | $44.99 | In stock | |
| 26 | 5459840-070 | COVER-PLATE,STORAGE,RH,BLK | 1 | $11.99 | In stock | |
| 27 | 5457132-070 | DASH-CONTROLS,BLK | 1 | $49.99 | In stock | |
| 28 | 7519092 | SCR-TXTH-M6X1.0X15 ZPB TAP | 2 | $1.49 | In stock | |
| 29 | 7518936 | SCR-M6X1X16 TR/TX-M | 3 | $4.99 | In stock | |
| 30 | 5466681-070 | COVER-HVAC,VENT,BLK [TO 09/15/2025] | 4 | $5.99 | In stock | |
| 31 | 5466682-070 | COVER-DEFROSTER,BLK | 2 | $5.99 | In stock | |
| 32 | 4018108 | SWITCH-PLUG,BLANK | 2 | $15.99 | In stock |
