ELECTRICAL, DASH INSTRUMENTS - R26RRY99A9/AF/AH/AB/AS/B9/BH/BB/BS (C730809)
Product Description

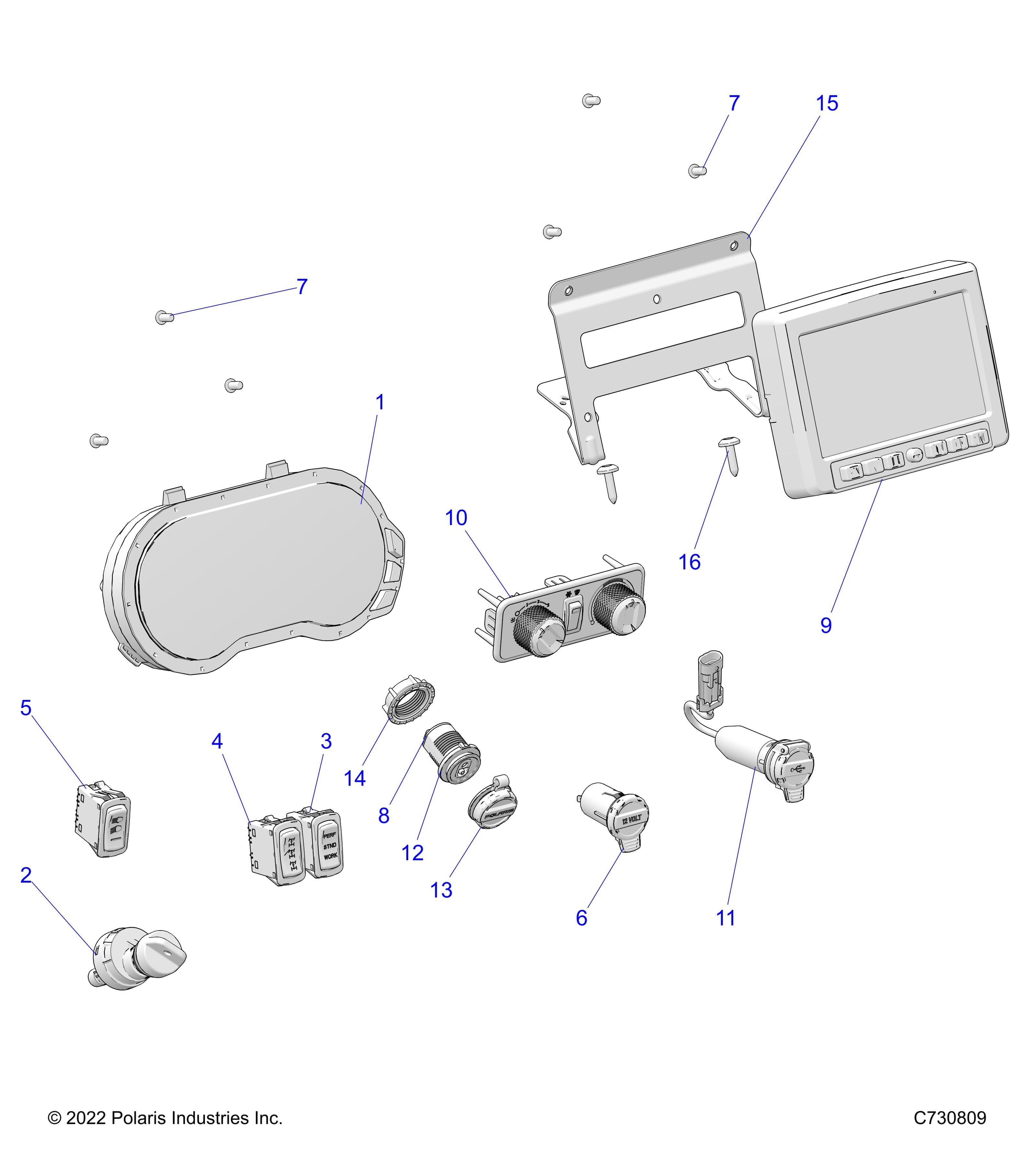

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE Assembly ID: 247333
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3287074 | ASM-C4,RZR,RGR,GNRL,500K | 1 | $509.99 | In stock | |
| 2 | 4083542 | SWITCH-KEY,4 POSITION,SEALED | 1 | $139.99 | In stock | |
| 3 | 4080274-07 | SWITCH-DRIVEMODE,3MODE,RGR | 1 | $64.99 | Out of stock Est. Sep 28, 2026 | |
| 4 | 4018371 | SWITCH-AWD | 1 | $119.99 | In stock | |
| 5 | 4080274-01 | SWITCH, HEADLIGHT | 1 | $74.99 | In stock | |
| 6 | 4080487 | RECEPTACLE-POD MNT,12 VOLT | 2 | $44.99 | In stock | |
| 7 | 7518330 | SCR-TORX BTNHD,M6X12,0600129 | 3 | $5.99 | In stock | |
| 8 | 2415295 | ASM-CHARGE PORT,BASE [INCLUDES 12-14] | 1 | $54.99 | In stock | |
| 9 | 3286949 | ASM DISPLAY-DIG,P7,PRG,500K | 1 | $2,099.99 | In stock | |
| 10 | 2416422 | CONTROL,HVAC | 1 | $224.99 | In stock | |
| 11 | 4019210 | PORT-USB | 1 | $109.99 | In stock | |
| 12 | 2415198 | PLUG-HARNESS CHARGE PORT | 1 | Price TBD | Out of stock | |
| 13 | 5417215 | CAP-CHARGE PORT | 1 | $15.99 | In stock | |
| 14 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 15 | 5273092-329 | BRKT-7" DISPLAY,RC,BLK | 1 | $14.99 | In stock | |
| 16 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | $4.99 | In stock |
