Schematic diagram
Polaris•Schematic assembly

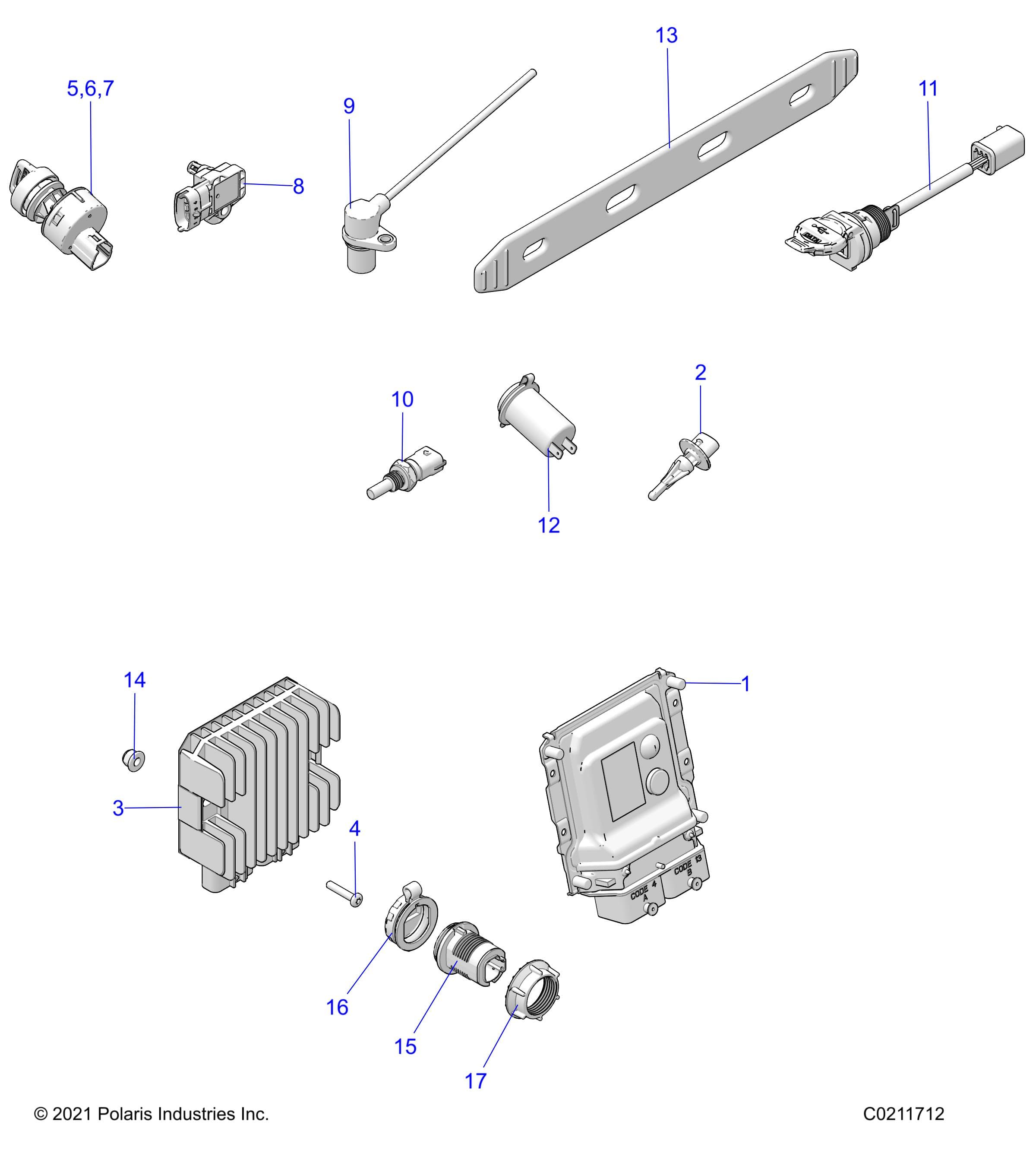

ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A26SXR95AG (C0211712)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG Assembly ID: 247223
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4014125 | ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED] | 1 | Price TBD | Out of stock | |
| 2 | 2410687 | Sensor, Air Temperature | 1 | $189.99 | In stock | |
| 3 | 4016868 | REGULATOR-3PH,50A,SERIES,HISPD | 1 | Price TBD | Out of stock | |
| 4 | 7519342 | SCR-TFHFL-M6X1.0X25,ZOD | 2 | Price TBD | Out of stock | |
| 5 | 5458344 | KEY COVER-KEYSWITCH | 1 | Price TBD | Out of stock | |
| 6 | 4080413 | SWITCH-KEY,3 POS,SEALED [INCL. 5,7][TO 9/30/2025] | 1 | Price TBD | Out of stock | |
| 6 | 4083540 | SWITCH-KEY,3 POS,SEALED [INCL. 5,7][FRM 9/30/2025] | 1 | Price TBD | Out of stock | |
| 7 | 5433733 | NUT-IGNITION SWITCH,HOBBS | 1 | $29.99 | In stock | |
| 8 | 2411528 | SENSOR-TMAP DSS3-TF | 1 | Price TBD | Out of stock | |
| 8 | 3131753 | SCR-SENSOR TMAP | 1 | $4.99 | In stock | |
| 9 | 2411589 | SENSOR, CRANK POSITION | 1 | $99.99 | In stock | |
| 9 | 7518548 | SCREW-HXFL-M6X1.0X16 8.8 ZY3 | 1 | Price TBD | Out of stock | |
| 10 | 4010644 | SENSOR-THERMISTER | 1 | Price TBD | Out of stock | |
| 11 | 4080299 | PORT-USB,DATA | 1 | $109.99 | In stock | |
| 12 | 4080487 | RECEPTACLE-POD MNT,12 VOLT | 1 | Price TBD | Out of stock | |
| 13 | 5414193 | STRAP, ECU | 1 | $34.99 | In stock | |
| 14 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 15 | 2415198 | PLUG-HARNESS CHARGE PORT | 1 | Price TBD | Out of stock | |
| 15 | 2415295 | ASM-CHARGE PORT,BASE [INCL. 15-17] | 1 | Price TBD | Out of stock | |
| 16 | 5417215 | CAP-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 17 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock |
