Polaris•Schematic assembly

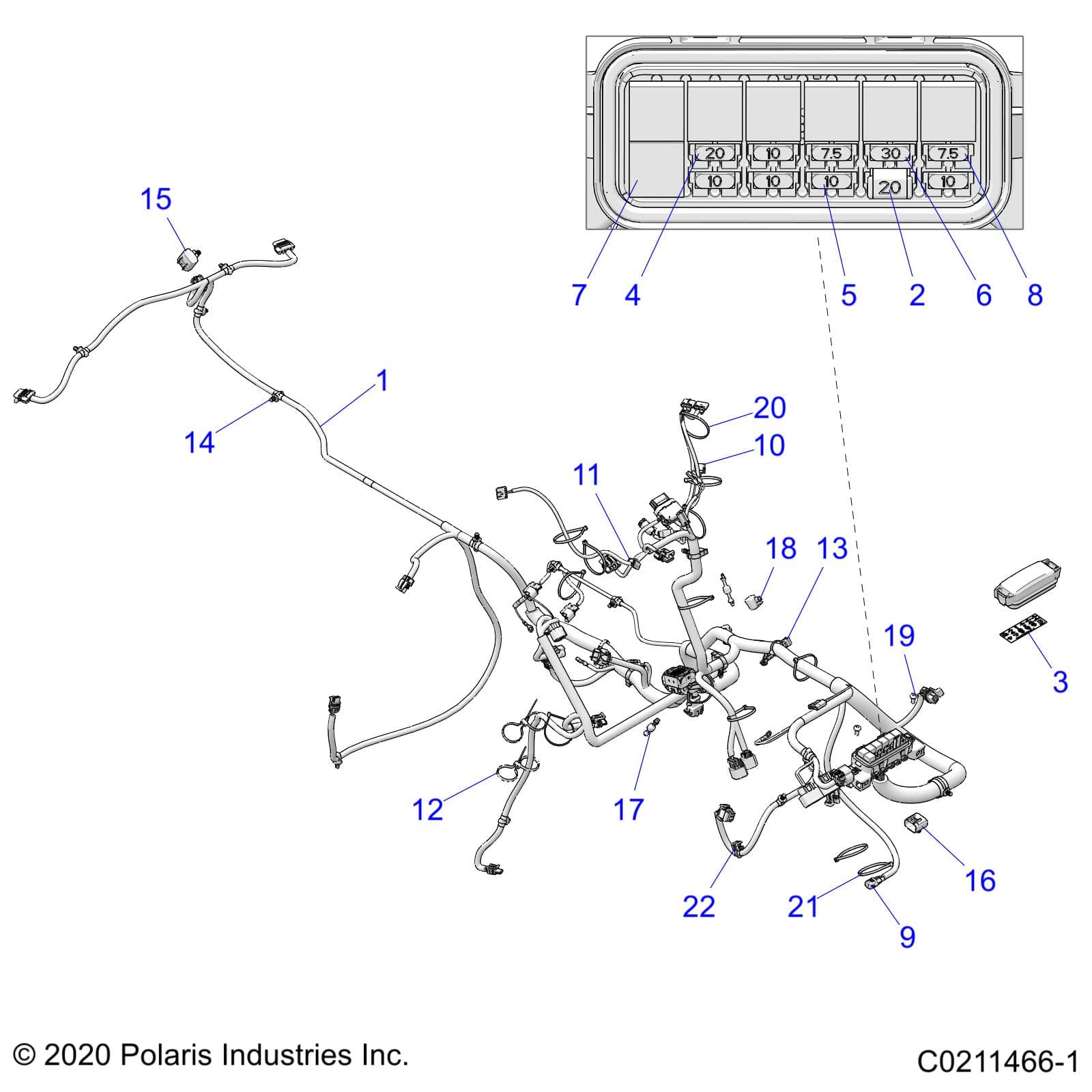

ELECTRICAL, HARNESS - A26SXR95AG (C0211466-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG Assembly ID: 247219
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 1000 ULTIMATE 49S R01 - A26SXR95AG
Checkout Note
Please note that 19 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2416128 | HARN-MAIN,SPXP ETC,LED [INCL. 1-20] | 1 | $1,149.99 | In stock | |
| 2 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | Price TBD | Out of stock | |
| 3 | 7300362 | LABEL, FUSE BOX | 1 | Price TBD | Out of stock | |
| 4 | 2434017 | FUSE-PARK,20 AMP | 1 | Price TBD | Out of stock | |
| 5 | 2434016 | FUSE-IGNITION,10 AMP | 5 | Price TBD | Out of stock | |
| 6 | 2434015 | FUSE-MAIN,30 AMP | 1 | Price TBD | Out of stock | |
| 7 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 7 | Price TBD | Out of stock | |
| 8 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 2 | Price TBD | Out of stock | |
| 9 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 10 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 11 | 7082404 | CLIP-EDGE, 3-6MM THICKNESS | 1 | Price TBD | Out of stock | |
| 12 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 13 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 4 | Price TBD | Out of stock | |
| 14 | 7082428 | CLIP-EDGE,1-3MM THICKNESS | 1 | Price TBD | Out of stock | |
| 15 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 12 | Price TBD | Out of stock | |
| 16 | 4016259 | COVER, TAILLIGHT, LED W/CLIP | 1 | $8.99 | In stock | |
| 17 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 18 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 2 | Price TBD | Out of stock | |
| 19 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 20 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 7 | Price TBD | Out of stock | |
| 21 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 7 | Price TBD | Out of stock | |
| 22 | 7518914 | SCREW-M6X1X14,PN/TX,TRI-LOB | 2 | Price TBD | Out of stock |
