Schematic diagram
Polaris•Schematic assembly

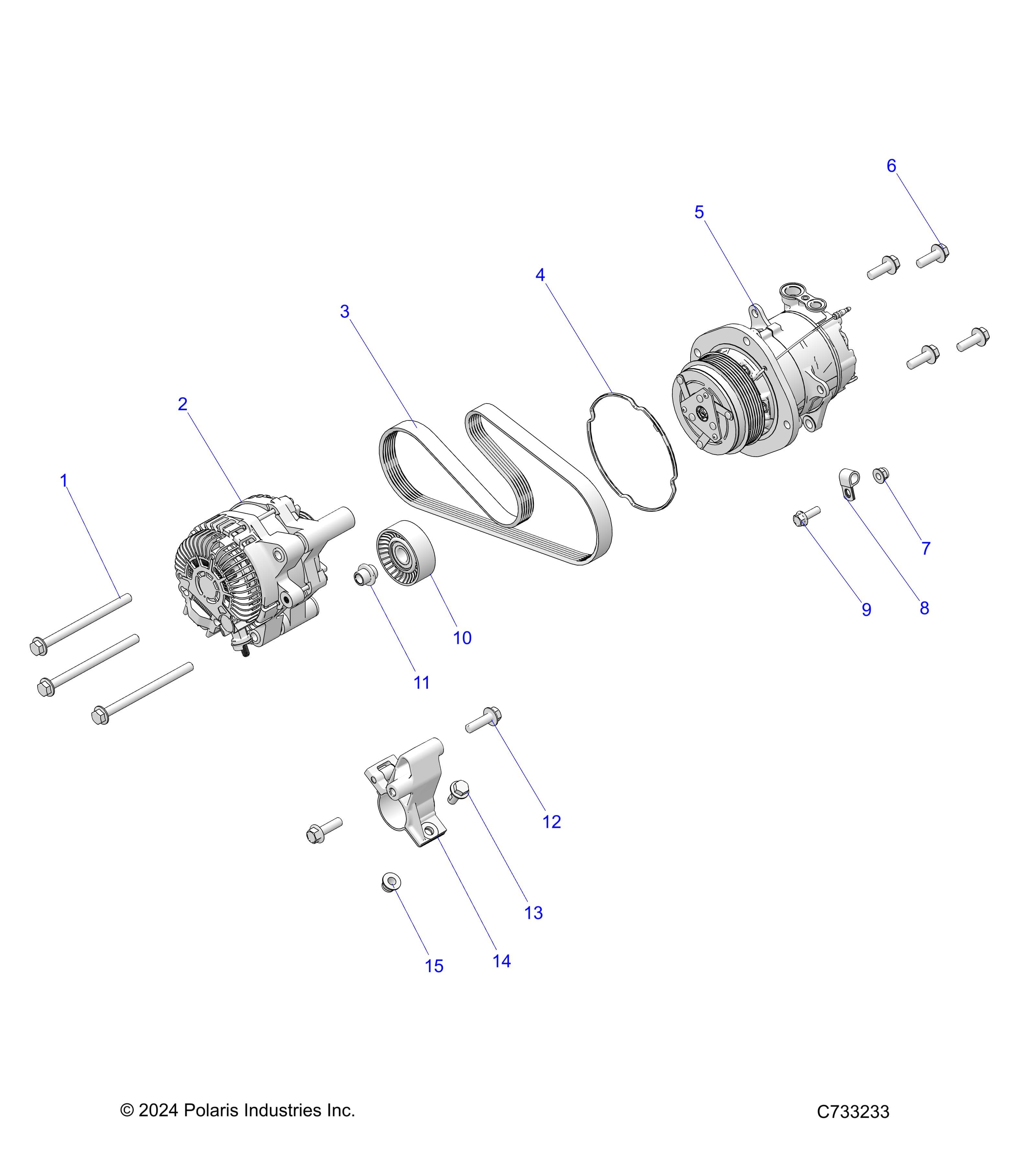

ENGINE, ALTERNATOR & COMPRESSOR - R26RRU99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C733233)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR Assembly ID: 247004
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7519041 | SCR-HXFL-M10X1.5X140 8.8 ZOD | 3 | $12.99 | Out of stock Est. Jul 21, 2026 | |
| 2 | 4019209 | ALTERNATOR-140A,HVAC | 1 | $569.99 | In stock | |
| 3 | 5418705 | BELT-HVAC DRIVE | 1 | $49.99 | In stock | |
| 4 | 5415805 | GASKET-HVAC COMPRESSOR | 1 | $14.99 | In stock | |
| 5 | 3023970 | COMPRESSOR-HVAC,112MM | 1 | $509.99 | In stock | |
| 6 | 7519764 | SCR-HXFL-M10X1.5X30 8.8 ZOD | 4 | $2.99 | In stock | |
| 7 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 1 | $2.99 | In stock | |
| 8 | 7081722 | CLIP-P,7/16X.343 HOLE | 1 | $4.99 | In stock | |
| 9 | 7518514 | BOLT-M8X1.25X25,HXFLG-OLIVE D | 1 | $1.99 | In stock | |
| 10 | 3023107 | PULLEY-FLAT IDLER,70.9MM | 1 | $54.99 | In stock | |
| 11 | 5140080 | WASHER,COVER | 1 | Price TBD | Out of stock | |
| 12 | 7519782 | SCR-HXFL-M10X1.5X35 10.9 ZOD D | 2 | $4.99 | In stock | |
| 13 | 7518760 | SCR-HXFL-M10X1.25X25 8.8 Z NY | 1 | $11.99 | In stock | |
| 14 | 3023168 | ASM,COMPRESSOR SUPPORT | 1 | $79.99 | In stock | |
| 15 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | $1.99 | In stock |
