Schematic diagram
Polaris•Schematic assembly

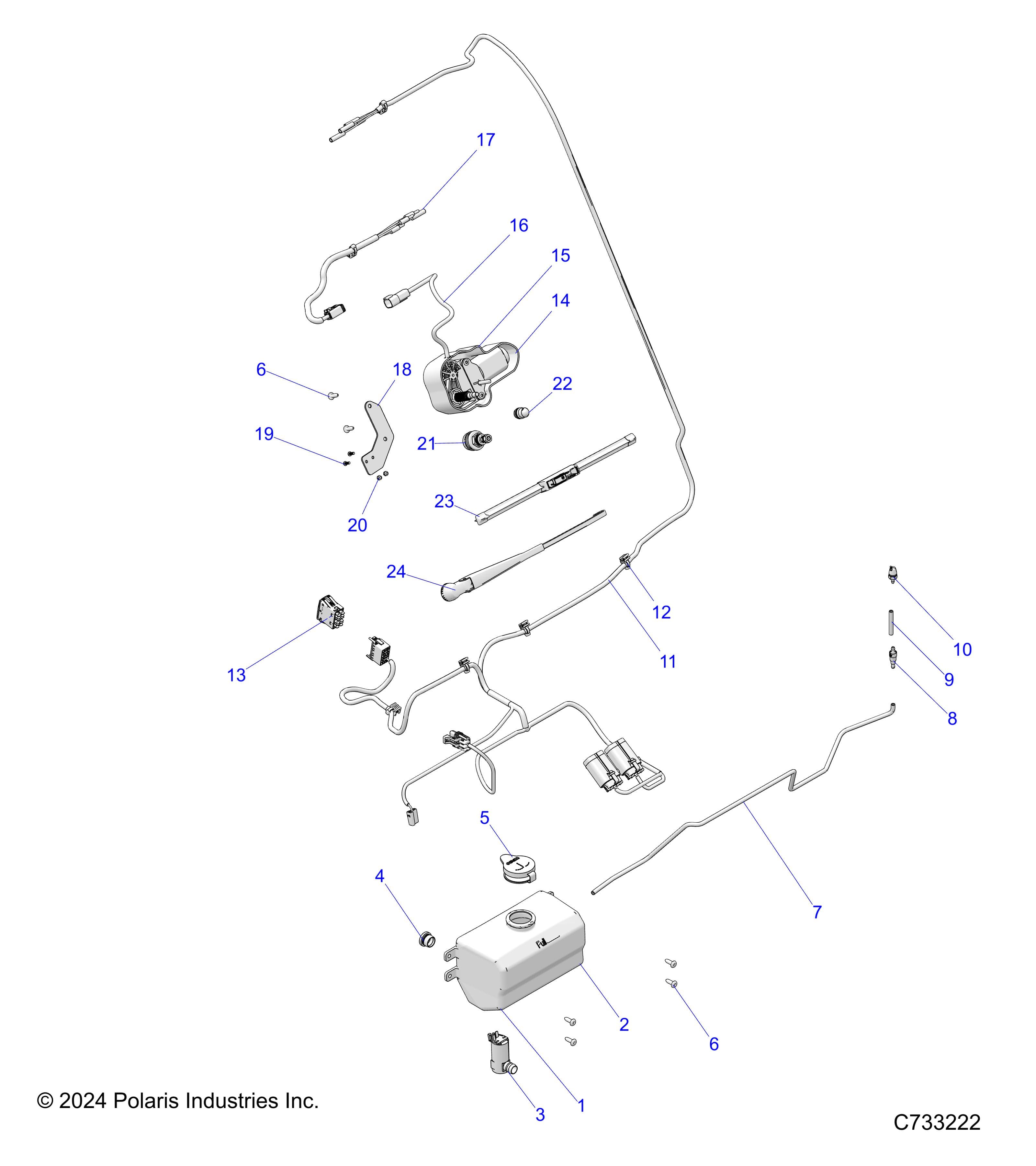

BODY, WATER BOTTLE PUMP ASSEMBLY AND WIPER KIT - R26RRU99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C733222)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR Assembly ID: 246980
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 9929270 | INST-ACCY,WIPER,G2 [REFERENCE ONLY] | 0 | Price TBD | Out of stock | |
| 1 | 2205139 | ASM-BOTTLE,WASHER,WSHLD [INCLUDES 2-5] | 1 | $64.99 | Out of stock Est. Jul 21, 2026 | |
| 2 | 5450700 | BOTTLE-WASHER,WIPER FLUID | 1 | $69.99 | In stock | |
| 3 | 2205140 | PUMP-WASHER,WIPER FLUID | 1 | $15.99 | In stock | |
| 4 | 5414883 | GROMMET-PUMP,WSHR FLUID | 1 | $5.99 | In stock | |
| 5 | 5450701 | LID-BOTTLE,WASHER,BRT | 1 | $4.99 | In stock | |
| 6 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 6 | $3.99 | In stock | |
| 7 | 5418247 | HOSE-WIPER,WSHR FLUID,LONG | 1 | $49.99 | In stock | |
| 8 | 7055609 | VALVE-CHECK | 1 | $12.99 | In stock | |
| 9 | 5418246 | HOSE-WIPER,WSHR FLUID,SHORT | 1 | $11.99 | In stock | |
| 10 | 2637660 | NOZZLE-WIPER,WSHLD,ZS | 1 | $24.99 | Out of stock Est. Jul 27, 2026 | |
| 11 | 2415856 | HRNS-ACCY,WPER MAIN G2 RGR | 1 | $114.99 | In stock | |
| 12 | 7082365 | CLIP-ROUTING,EDGE | 3 | $6.99 | In stock | |
| 13 | 4080274-02 | SWITCH-WASHER,WIPER | 1 | $59.99 | In stock | |
| 14 | 2639007 | MOTOR-WIPER,MIRROR BRKT ASSY [INCLUDES 2 OF 6, 16-18] | 1 | $249.99 | Out of stock Est. Aug 25, 2026 | |
| 15 | 2638912 | K-WIPER MOTOR,WSHLD,LE,GEN2 [INCLUDES 2 OF 6,10,16-18 & 21-24] | 1 | $409.99 | NLA | |
| 16 | 2637637 | MOTOR-WIPER,WSHLD,G2 RGR | 1 | $269.99 | Out of stock | |
| 17 | 2415857 | HRNS-ACCY,WPER ROPS G2 RGR | 1 | $64.99 | Out of stock Est. Mar 10, 2027 | |
| 18 | 5268630-458 | BRKT-ACCY,MIRROR WIPER,GEN3 BK | 1 | $14.99 | In stock | |
| 19 | 7520162 | SCR-BUTTON,M4X12,BLK,RIE | 2 | $2.99 | In stock | |
| 20 | 7547126 | NUT-NYLOK,M4,0600110 | 2 | $3.99 | In stock | |
| 21 | 2208225 | K-HRDWR,MAIN SHAFT,WIPER G2 | 1 | $7.99 | In stock | |
| 22 | 2208226 | K-HRDWR,M6,WIPER G2 | 1 | $5.99 | Out of stock Est. Jul 21, 2026 | |
| 23 | 2638900 | BLADE-WIPER,WSHLD,G2 RGR | 1 | $19.99 | In stock | |
| 24 | 2637636 | ASM-ARM WIPER,WSHLD,G2 RGR | 1 | $29.99 | Out of stock Est. Jul 24, 2026 |
