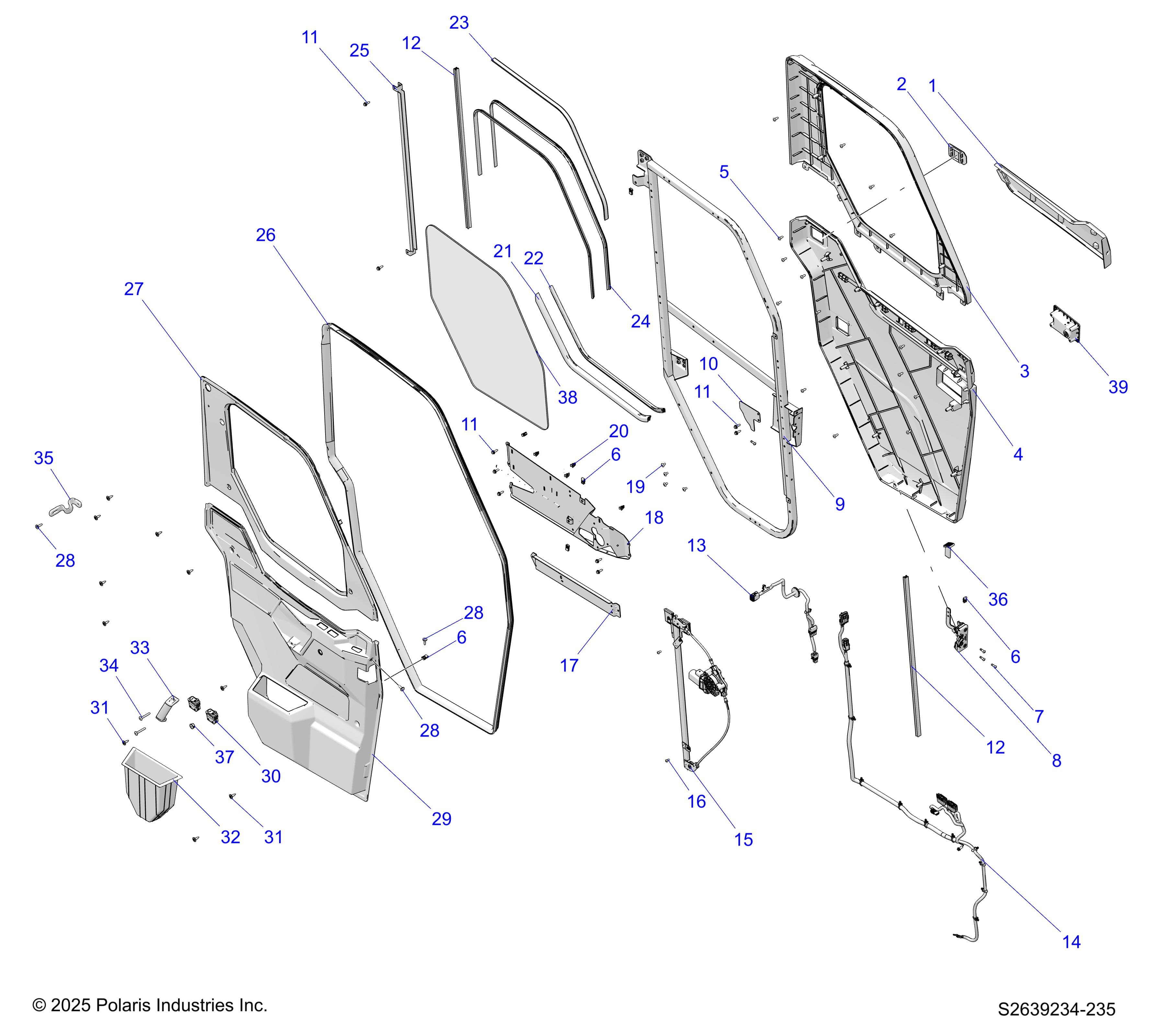

Schematic diagram
Polaris•Schematic assembly
BODY, DOOR, FRONT POWER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP CREW NSTR ULTIMATE Assembly ID: 246933
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP CREW NSTR ULTIMATE
Checkout Note
Please note that 27 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2639234 | ASM-DOOR,FULL,PWR,LH | 1 | Price TBD | Out of stock | |
| - | 2639235 | ASM-DOOR,FULL,PWR,RH | 1 | Price TBD | Out of stock | |
| 1 | 5454749-587 | PANEL-ACCENT,DOOR,LH,LE,PPC [POLARIS PURSUIT CAMO] | 1 | Price TBD | Out of stock | |
| 1 | 5454749-750 | PANEL-ACCENT,DR,LH,LE,ORG RST ORANGE RUST] | 1 | $84.99 | In stock | |
| 1 | 5454749-804 | PANEL-ACCENT,DR,LH,LE,ST GREY [STEALTH GREY] | 1 | $104.99 | In stock | |
| 1 | 5454749-981 | PANEL-ACCENT,DR,LH,LE,BL.LAB [BLUE LABYRINTH] | 1 | $104.99 | In stock | |
| 1 | 5454749-520 | PANEL-ACCENT,DR,LH,LE,S.S.RED [SUNSET RED] | 1 | Price TBD | Out of stock | |
| 1 | 5454750-587 | PANEL-ACCENT,DOOR,RH,LE,PPC [POLARIS PURSUIT CAMO] | 1 | Price TBD | Out of stock | |
| 1 | 5454750-750 | PANEL-ACCENT,DR,RH,LE,ORG RST ORANGE RUST] | 1 | $84.99 | In stock | |
| 1 | 5454750-804 | PANEL-ACCENT,DR,RH,LE,ST GREY [STEALTH GREY] | 1 | $104.99 | In stock | |
| 1 | 5454750-981 | PANEL-ACCENT,DR,RH,LE,BL.LAB [BLUE LABYRINTH] | 1 | $104.99 | In stock | |
| 1 | 5454750-520 | PANEL-ACCENT,DR,RH,LE,S.S.RED [SUNSET RED] | 1 | Price TBD | Out of stock | |
| 2 | 2207853 | K-HRDWR SVC DOOR HINGE-COV ZSC | 1 | $39.99 | In stock | |
| 3 | 5454001-070 | PANEL-DOOR,WNDW,EXT,LH,BLK | 1 | $169.99 | In stock | |
| 3 | 5454002-070 | PANEL-DOOR,WNDW,EXT,RH,BLK | 1 | $169.99 | In stock | |
| 4 | 5453995-070 | PANEL-DOOR,LWR,EXT,LH,BLK | 1 | Price TBD | Out of stock | |
| 4 | 5453996-070 | PANEL-DOOR,LWR,EXT,RH,BLK | 1 | Price TBD | Out of stock | |
| 5 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 19 | $3.99 | In stock | |
| 6 | 7081305 | CLIP-U SPEED NUT | 5 | $2.49 | In stock | |
| 7 | 7518616 | BOLT-M6X1.0X20,PH/TX-OLIVE D | 4 | $1.49 | In stock | |
| 8 | 2207923 | K-HRDWR SVC INNER LATCH ,ZS [INCLUDES LH & RH LATCHES] [TO 09/05/2025] | 1 | Price TBD | Out of stock | |
| 8 | 2212908 | K-HDWR,SVC,INNER LATCH [INCLUDES LH & RH LATCHES] [FROM 09/05/2025] | 1 | $169.99 | In stock | |
| 9 | 1028570-329 | WELD-FULL DOOR,LH,ECOAT | 1 | $369.99 | In stock | |
| 9 | 1028571-329 | WELD-FULL DOOR,RH,ECOAT | 1 | $369.99 | In stock | |
| 10 | 5272095-329 | BRKT-PWR,HARNESS,ROUTING,ECOAT [TO 05/01/2026] | 1 | $34.99 | In stock | |
| 11 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 10 | $1.49 | In stock | |
| 12 | 2883782 | K-ACCY DOOR SEAL GLASS,L&R,ZS [INCLUDES 12 & 24] | 1 | $74.99 | In stock | |
| 12 | ------- | SEAL-GLASS WINDOW [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 12 | 2883782 | K-ACCY DOOR SEAL GLASS,L&R,ZS [INCLUDES 12 & 24] | 1 | $74.99 | In stock | |
| 12 | ------- | SEAL-GLASS WINDOW [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 13 | 4080181 | HARNESS-DOOR,JUMPER [TO 05/01/2026] | 1 | Price TBD | Out of stock | |
| 14 | 4016942 | HARNESS-DOOR,LH [TO 05/01/2026] | 1 | $174.99 | In stock | |
| 14 | 4083393 | HARNESS-DOOR,LH [FROM 05/01/2026] | 1 | Price TBD | Out of stock | |
| 14 | 4016943 | HARNESS-DOOR,RH [TO 05/01/2026] | 1 | $174.99 | In stock | |
| 14 | 4083394 | HARNESS-DOOR,RH [FROM 05/01/2026] | 1 | Price TBD | Out of stock | |
| 15 | 2638585 | ASM-REGULATOR,POWER WINDOW,LH | 1 | Price TBD | Out of stock | |
| 15 | 2638586 | ASM-REGULATOR,POWER WINDOW,RH | 1 | Price TBD | Out of stock | |
| 16 | 7519063 | SCREW-TXBH-M6X1.0X12 8.8 ZPB D20 | 2 | $3.99 | In stock | |
| 17 | 5273034-458 | BRKT-REGULATOR,MNT,FR,BK | 1 | $34.99 | In stock | |
| 18 | 2213219 | K-BRACKET,MOTOR MNT,FRONT,LH | 1 | Price TBD | Out of stock | |
| 18 | 2213220 | K-BRACKET,MOTOR MNT,FRONT,RH | 1 | Price TBD | Out of stock | |
| 19 | 7518991 | SCR-M6X1.0X12 8.8 TXPH ZOD P30 | 4 | $5.99 | In stock | |
| 20 | 7519806 | CLIP-DASH,TRIM,METAL | 5 | $4.99 | In stock | |
| 21 | ------- | SEAL-FLOCK,WINDOW,FRT,OUTER,RH [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 22 | ------- | SEAL-FLOCK,WINDOW,FRT,OUTER,LH [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 23 | 2207718 | K-HRDWR DOOR SEAL,ZS | 1 | $74.99 | In stock | |
| 24 | ------- | SEAL-WINDOW [REFERENCE ONLY] | 2 | Price TBD | Out of stock | |
| 25 | ------- | BRKT-WINDOW,TRACK,BLK [REFERENCE ONLY] | 1 | Price TBD | Out of stock | |
| 26 | 2211603 | K-HDWR,SVC,SEAL,DOOR,FRT,LH [TO 09/05/2025] | 1 | $89.99 | In stock | |
| 26 | 2213035 | K-HDWR,SVC,SEAL,DOOR,LH [FROM 09/05/2025] | 1 | $99.99 | Out of stock Est. Nov 6, 2026 | |
| 26 | 2211604 | K-HDWR,SVC,SEAL,DOOR,FRT,RH [TO 09/05/2025] | 1 | $89.99 | In stock | |
| 26 | 2213036 | K-HDWR,SVC,SEAL,DOOR,RH [FROM 09/05/2025] | 1 | $99.99 | Out of stock Est. Nov 6, 2026 | |
| 27 | 5453997-070 | PANEL-DOOR,INT,LH,BLK | 1 | $74.99 | In stock | |
| 27 | 5453998-070 | PANEL-DOOR,INT,RH,BLK | 1 | $74.99 | In stock | |
| 28 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 3 | $4.99 | In stock | |
| 29 | 5459402-070 | PANEL-DOOR,HALF,INT,POW,LH,BLK | 1 | $349.99 | Out of stock Est. Oct 12, 2026 | |
| 29 | 5459403-070 | PANEL-DOOR,HALF,INT,POW,RH,BLK | 1 | $349.99 | Out of stock Est. Oct 12, 2026 | |
| 30 | 4080274-06 | SWITCH-POWER WINDOW | 2 | $104.99 | In stock | |
| 31 | 2207378 | RVT-1/4 X .08-.31,NYLON BLK | 10 | Price TBD | Out of stock | |
| 32 | 5459660-070 | BOX-STORAGE,BLK | 1 | $16.99 | In stock | |
| 33 | 5459167-070 | GRAB HANDLE,LH,BLK | 1 | $18.99 | In stock | |
| 33 | 5459168-070 | GRAB HANDLE,RH,BLK | 1 | $18.99 | In stock | |
| 34 | 7519220 | SCR-TXTH-M6X1.0X50, 8.8, ZPB | 2 | $1.99 | In stock | |
| 35 | 5450947 | STRAP-RUBBER,DOOR LIMIT,TTN | 1 | $12.99 | In stock | |
| 36 | 2207922 | K-HDWR,SVC,HNDL TOP,ZSC | 1 | $39.99 | In stock | |
| 37 | 5459404 | PLUG-DOOR,WINDOW CRANK | 1 | $5.99 | In stock | |
| 38 | 2207713 | K-HRDWR SVC GLASS,ZS | 1 | $89.99 | In stock | |
| 39 | 2211602 | K-HDWR,SVC,DOOR,HANDLE,OUT,FR | 1 | $74.99 | In stock |
