Polaris•Schematic assembly

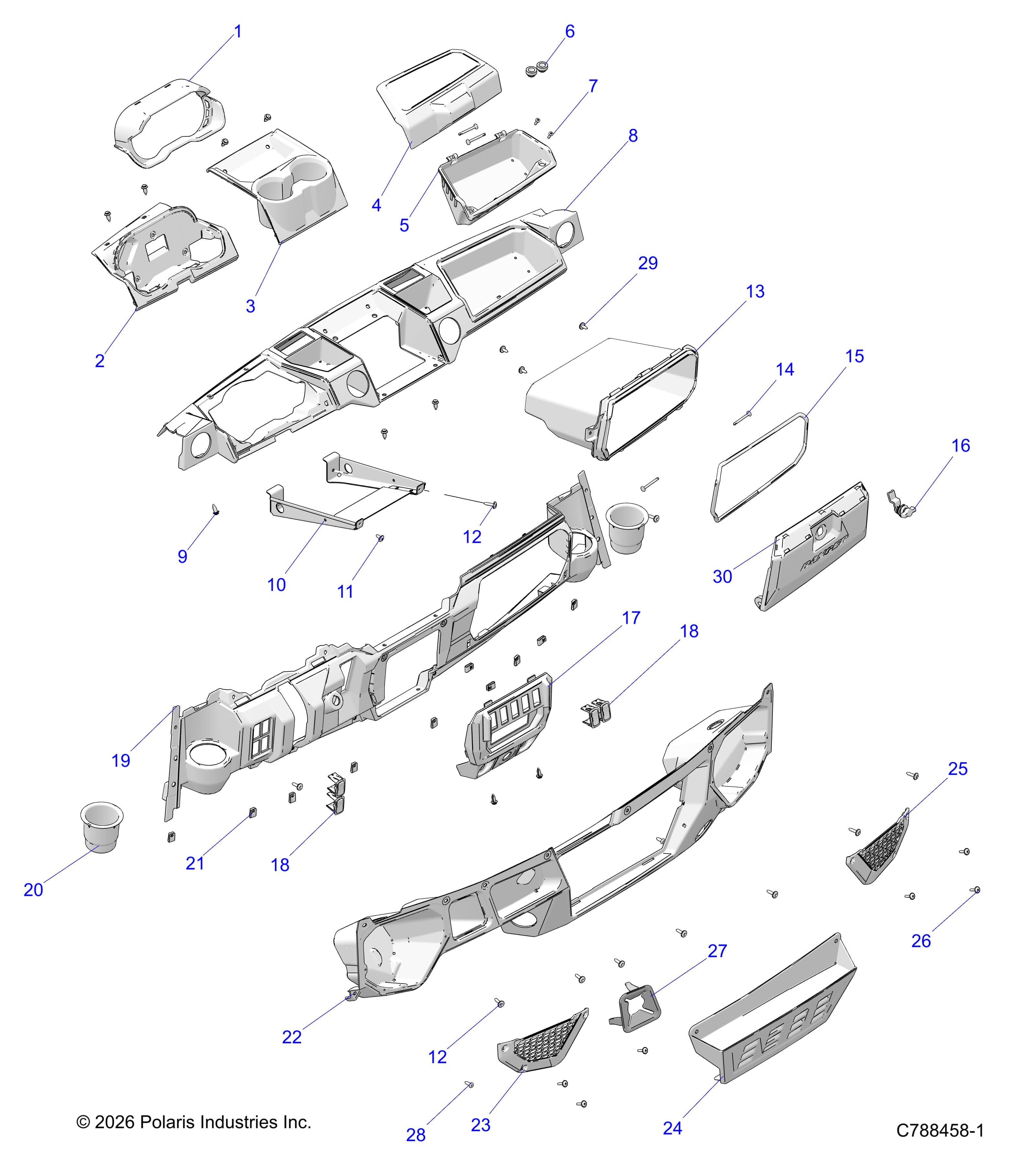

BODY, DASH - R26RRU99A9/AF/AH/AB/AS/B9/BF/BH/BB/BS (C788458-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR Assembly ID: 246929
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5454159-070 | DASH-GAUGE,BEZEL,C4,BLK | 1 | $49.99 | In stock | |
| 2 | 5454158-070 | DASH-GAUGE,HOOD,C4,BLK | 1 | $49.99 | In stock | |
| 3 | 5453749-070 | DASH-CENTER TRAY, BLK | 1 | $18.99 | In stock | |
| 4 | 2640461 | ASM-UPPER GLOVEBOX [INCLUDES 4, 6 &14] | 1 | $114.99 | In stock | |
| 4 | 5453789-070 | COVER-UPPER GLOVEBOX,BLK | 1 | $69.99 | In stock | |
| 5 | 5453790-070 | BIN-UPPER GLOVEBOX,BLK | 1 | $39.99 | In stock | |
| 6 | 5418500 | GROMMET-RUBBER,MOUNT,.25" | 2 | $1.99 | In stock | |
| 7 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 4 | $4.99 | In stock | |
| 8 | 5467298-070 | DASH-UPPER,BLK | 1 | $194.99 | In stock | |
| 9 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 0 | $1.49 | In stock | |
| 10 | 1024884-329 | WELD-DASH SUPPORT,BLK | 1 | $64.99 | In stock | |
| 11 | 7519092 | SCR-TXTH-M6X1.0X15 ZPB TAP | 2 | $1.49 | In stock | |
| 12 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 0 | $4.99 | In stock | |
| 13 | 5453745-070 | BIN-GLOVEBOX, BLK | 1 | $69.99 | In stock | |
| 14 | 5439091 | PIN-HINGE,GLOVEBOX | 4 | $4.99 | In stock | |
| 15 | 5522052 | SEAL-GLOVEBOX | 1 | $3.49 | In stock | |
| 16 | 7081425 | LATCH-1/4 TURN,CAM | 1 | $7.99 | In stock | |
| 17 | 5459807-070 | DASH-CONTROLS,BLK | 1 | $54.99 | In stock | |
| 18 | 4018108 | SWITCH-PLUG,BLANK | 4 | $15.99 | In stock | |
| 19 | 5456187-070 | DASH-MAIN,4SWITCH,BLK | 1 | $329.99 | In stock | |
| 20 | 5436836 | HOLDER-CUP | 2 | $24.99 | In stock | |
| 21 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 10 | $1.49 | In stock | |
| 22 | 5464983-070 | DASH-STORAGE,HVAC,BLK [TO 09/15/2025] | 1 | $229.99 | In stock | |
| 22 | 5467299-070 | DASH-STORAGE,BLK [FROM 09/15/2025] | 1 | $384.99 | In stock | |
| 23 | 5459839-070 | COVER-PLATE,STORAGE,LH,BLK | 1 | $11.99 | In stock | |
| 24 | 5454155-070 | COVER-BIN,HVAC,BLK | 1 | $74.99 | In stock | |
| 25 | 5459840-070 | COVER-PLATE,STORAGE,RH,BLK | 1 | $11.99 | In stock | |
| 26 | 7527826 | SCR-TXTR-M5X25 ZTB BOSS | 6 | $2.99 | In stock | |
| 27 | 5418475-070 | GROMMET-BOTTLE,BLK | 1 | $10.99 | In stock | |
| 28 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | $3.99 | In stock | |
| 29 | 7518936 | SCR-M6X1X16 TR/TX-M | 3 | $4.99 | In stock | |
| 30 | 5453744-070 | COVER-GLOVEBOX,BLK | 1 | $44.99 | In stock |
