Schematic diagram
Polaris•Schematic assembly

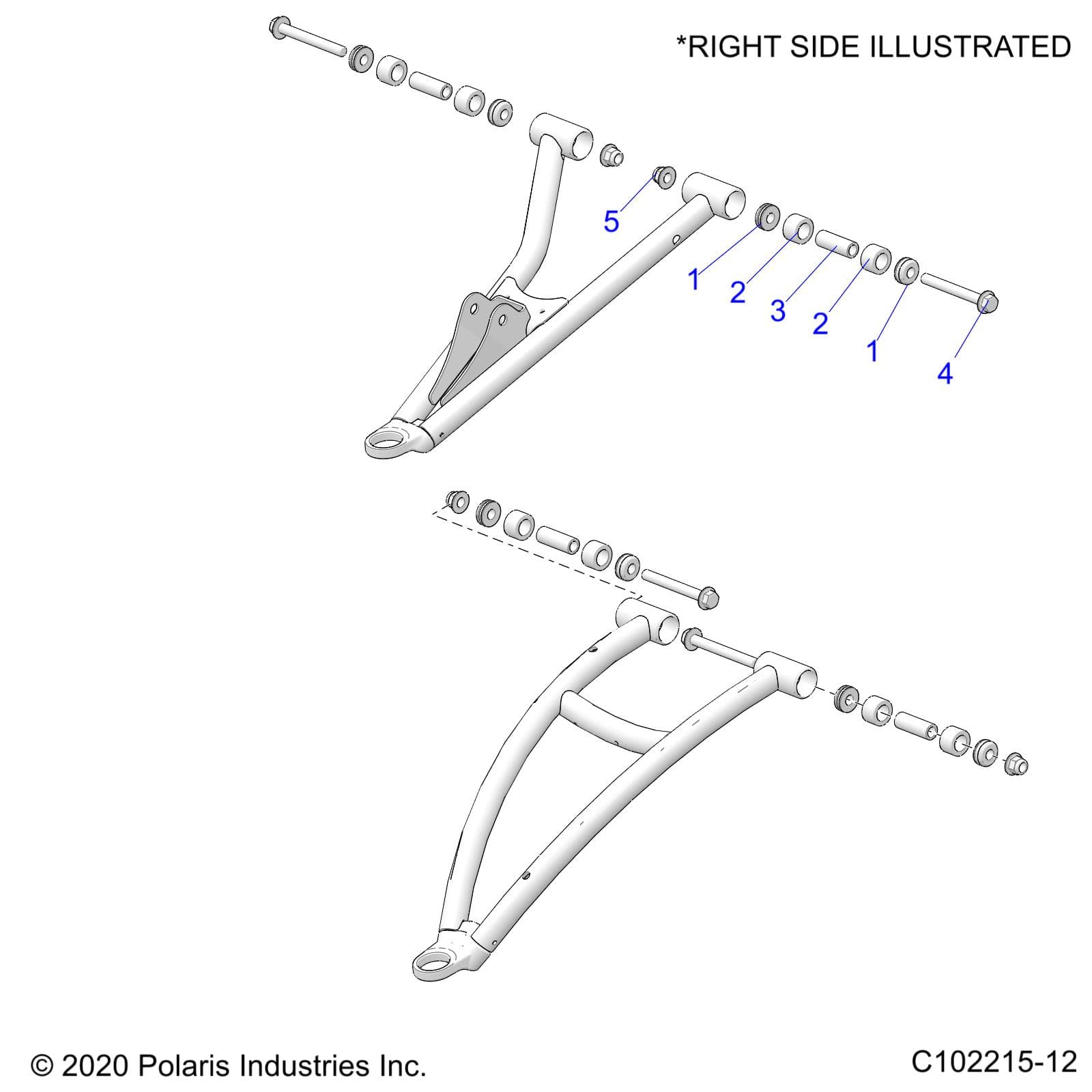

SUSPENSION, FRONT A-ARM, MOUNTING - A26SXM95AR (C102215-12)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR Assembly ID: 246420
Vehicle Compatibility
- 2026 Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1543611 | ASM-PIVOT CAP, SEALED, M10 | 16 | Price TBD | Out of stock | |
| 1 | 5139968 | CAP-PIVOT SEAL,M10 | 16 | Price TBD | Out of stock | |
| 1 | 5415653 | O-RING,2-210 | 16 | Price TBD | Out of stock | |
| 1 | 1543611 | ASM-PIVOT CAP, SEALED, M10 | 16 | Price TBD | Out of stock | |
| 1 | 5139968 | CAP-PIVOT SEAL,M10 | 16 | Price TBD | Out of stock | |
| 1 | 5415653 | O-RING,2-210 | 16 | Price TBD | Out of stock | |
| 2 | 5452233 | BUSHING-STANDARD, SUSP, M10 | 8 | Price TBD | Out of stock | |
| 3 | 5141292 | SHAFT-PIVOT,SHORT,M10,43MM | 8 | $4.99 | In stock | |
| 4 | 7518466 | SCR-HXFL-M10X1.5X85 8.8 ZY3 | 8 | $5.99 | In stock | |
| 5 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 8 | Price TBD | Out of stock |
