Schematic diagram
Polaris•Schematic assembly

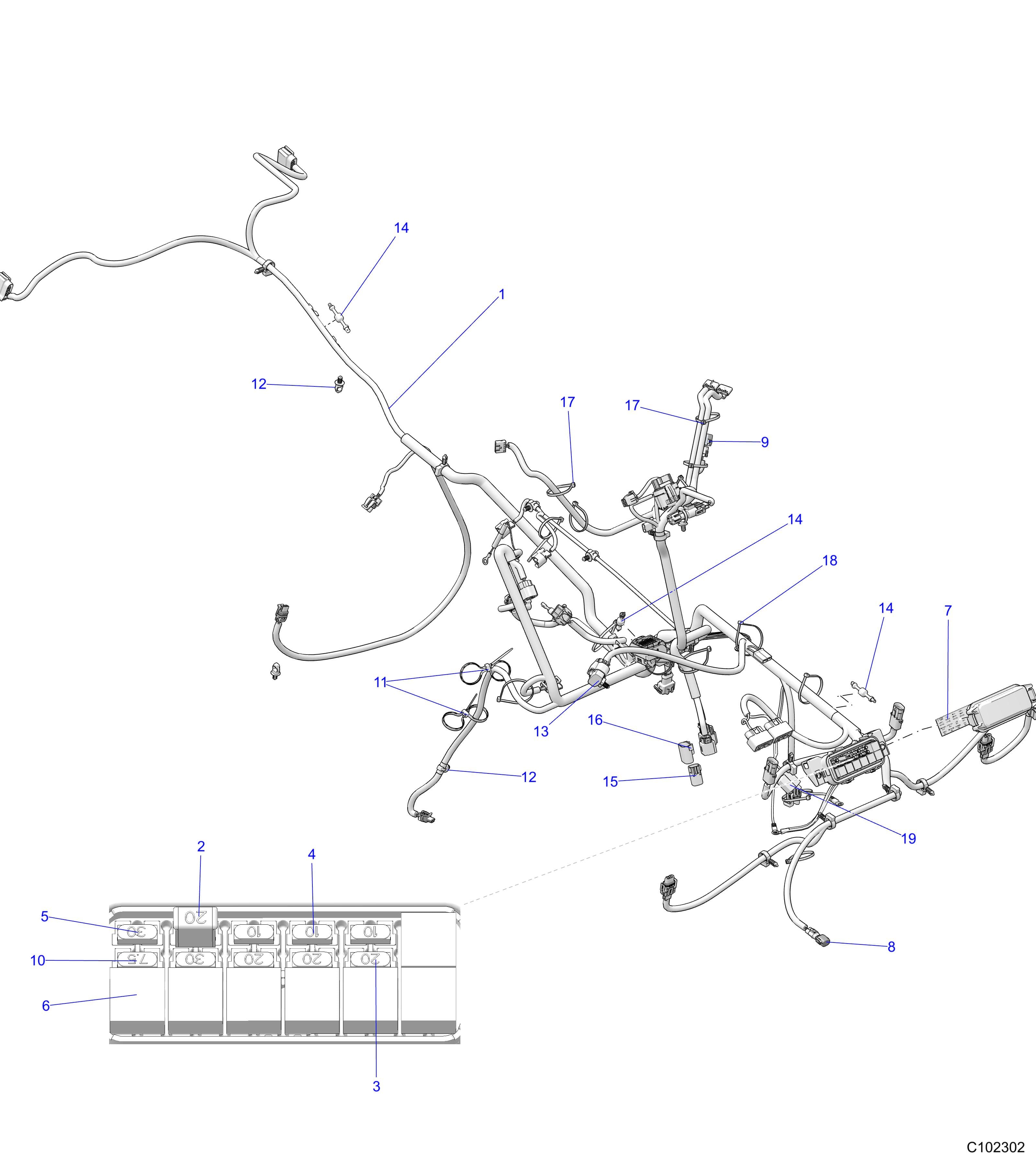

ELECTRICAL, HARNESS - A26SXM95AR (C102302-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR Assembly ID: 246380
Vehicle Compatibility
- 2026 Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 4015011 | COVER- FUSE BOX, 48 WAY | 1 | Price TBD | Out of stock | |
| 1 | 2415159 | HARNESS-MAIN,850/1000 HL EPS [INCL. 1-14] | 1 | $1,199.99 | In stock | |
| 2 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | Price TBD | Out of stock | |
| 3 | 2434017 | FUSE-PARK,20 AMP | 3 | Price TBD | Out of stock | |
| 4 | 2434016 | FUSE-IGNITION,10 AMP | 3 | Price TBD | Out of stock | |
| 5 | 2434015 | FUSE-MAIN,30 AMP | 2 | Price TBD | Out of stock | |
| 6 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 7 | Price TBD | Out of stock | |
| 7 | 7192266 | LABEL, FUSE BOX | 1 | Price TBD | Out of stock | |
| 8 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 9 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 10 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 1 | Price TBD | Out of stock | |
| 11 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 2 | Price TBD | Out of stock | |
| 12 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 6 | Price TBD | Out of stock | |
| 13 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 14 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 3 | Price TBD | Out of stock | |
| 15 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 7 | Price TBD | Out of stock | |
| 16 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 8 | Price TBD | Out of stock | |
| 17 | 2415060 | PLUG-HARNESS BATTERY CHARGE | 1 | $39.99 | In stock | |
| 18 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 4 | Price TBD | Out of stock | |
| 19 | 2415060 | PLUG-HARNESS BATTERY CHARGE | 1 | $39.99 | In stock |
