Schematic diagram
Polaris•Schematic assembly

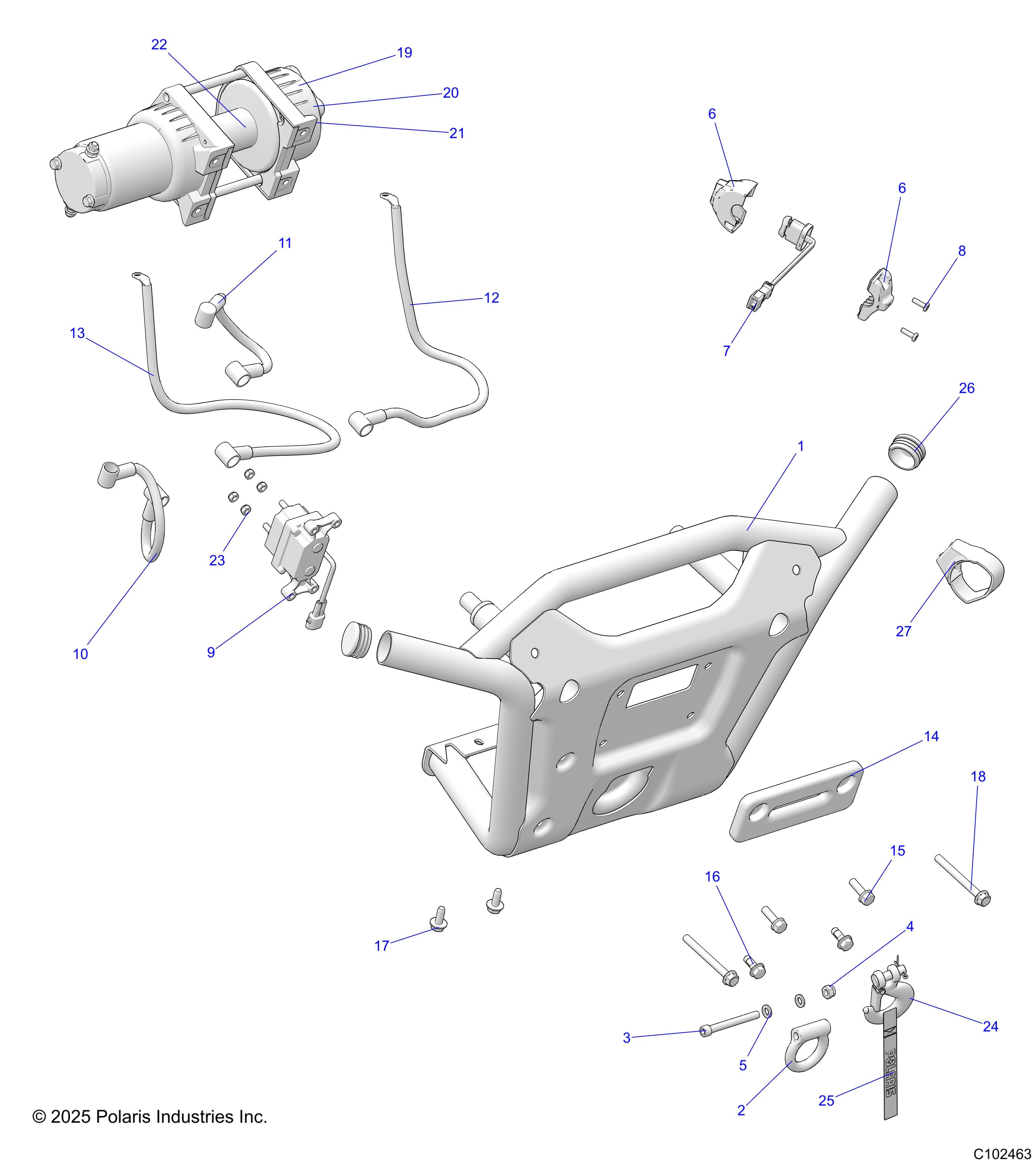

BODY, FRONT BUMPER WINCH and MOUNTING - A26SXM95AR (C102463)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN XP 1000 MUD R01 - A26SXM95AR Assembly ID: 246347
Vehicle Compatibility
- 2026 Polaris SPORTSMAN XP 1000 MUD R01 - A26SXM95AR
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2639015-293 | ASM-BUMPER,FRONT,INDY RED [INCL 1&27] | 1 | $299.99 | In stock | |
| 1 | 1027307-293 | WELD-BUMPER,FRONT,INDYRED | 1 | $294.99 | In stock | |
| 2 | 5632152-293 | FORGING-D-RING,INDYRED | 1 | $69.99 | In stock | |
| 3 | 7518911 | SCR-5/16-18X2 5/8 HXSOC HDCAP | 1 | $2.99 | In stock | |
| 4 | 7542324 | NUT-5/16-18 NYLOK-Y | 1 | $0.99 | In stock | |
| 5 | 7552901 | WASHER-5/16-SPRING LK-MED-Y | 2 | $1.49 | In stock | |
| 6 | 2207175 | K-WINCH SWITCH,HBR,EU,ATV | 1 | $79.99 | In stock | |
| 7 | 4017111 | SWITCH-HBR,EU,ATV | 1 | Price TBD | Out of stock | |
| 8 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 9 | 4013465 | CONTACTOR, WINCH | 1 | Price TBD | Out of stock | |
| 10 | 4013468-280 | CABLE-WINCH,YELLOW 6 GA,280MM | 1 | $34.99 | In stock | |
| 11 | 4013469-280 | CABLE-WINCH,BLUE 6 GA,280MM | 1 | $34.99 | In stock | |
| 12 | 4014511-470 | CABLE-BATT,6GA,BK,FLAT,85,M6 | 1 | $39.99 | In stock | |
| 13 | 4015517-510 | CABLE-BAT,6GA,RD,FLT,85,1C,510 | 1 | $39.99 | In stock | |
| 14 | 5633396 | FAIRLEAD-CAST | 1 | $24.99 | In stock | |
| 15 | 7516734 | SCR-M8X1.25X25-HX/FL-Y/D | 2 | Price TBD | Out of stock | |
| 16 | 7518450 | BOLT-M8X1.25X20,HXHDFLG,W/PTCH | 2 | Price TBD | Out of stock | |
| 17 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | Price TBD | Out of stock | |
| 18 | 7519217 | SCR-HXFL-M8X1.25X80 8.8 ZOD | 2 | Price TBD | Out of stock | |
| 19 | 2640663 | ASM-WINCH,35HD,PRD,SMHL | 1 | Price TBD | Out of stock | |
| 19 | 2212693 | WINCH-POL,35HD,TH,T,B0 | 1 | Price TBD | Out of stock | |
| 20 | 2205265 | K-SVC, HANDLE, HD WINCH | 1 | Price TBD | Out of stock | |
| 21 | 2212756 | SVC-WINCH MOTOR,35HDT | 1 | $99.99 | In stock | |
| 22 | 2878888 | ROPE-WINCH,SYNTHETIC,50' | 1 | $94.99 | In stock | |
| 23 | 7546703 | NUT-6MM X 1 NYLOK-Z | 4 | Price TBD | Out of stock | |
| 24 | 5910705 | HOOK-LATCH,WINCH,ULT,CMN | 1 | Price TBD | Out of stock | |
| 25 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock | |
| 26 | 5433305 | Cap, End, Bumper (AC)(AD) | 2 | $6.99 | In stock | |
| 27 | 5415687 | COVER-MOLD,SWITCH,WINCH | 1 | $8.99 | In stock |
