Polaris•Schematic assembly

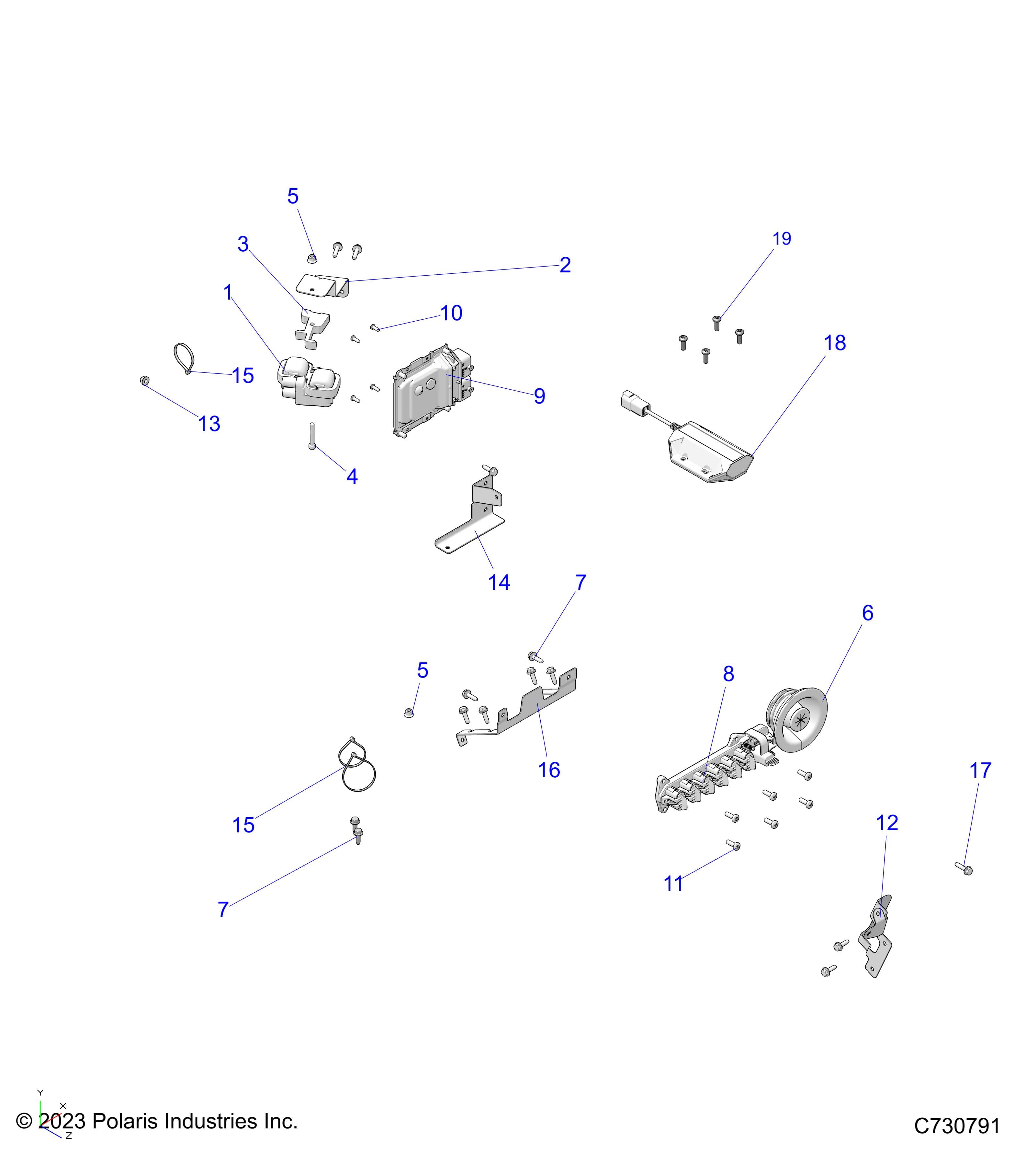

ELECTRICAL, HARNESS, COMPONANTS - R26RRV99AK (C730791)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246210
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 2 | 5263891 | BRKT-COIL MOUNT | 1 | $12.99 | In stock | |
| 3 | 5436577 | SPACER-COIL MOUNT | 1 | $4.99 | In stock | |
| 4 | 7518780 | SCR-M6X1.0X40,HX/SOC/CP-B | 1 | $4.99 | In stock | |
| 5 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | $1.99 | In stock | |
| 6 | 5417082 | GROMMET-HOOD LINER,SPLIT | 1 | $8.99 | In stock | |
| 7 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 8 | $1.49 | In stock | |
| 8 | 4016007 | BLOCK-TERMINAL,3 POST,TALL [INCLUDES COVER, PLUG & FUSE] | 1 | $44.99 | Out of stock Est. Aug 21, 2026 | |
| 8 | 4013891 | FUSE-CARTRIDGE,40A | 1 | $44.99 | In stock | |
| 8 | 5454283 | PLUG,ACCY TB | 1 | $54.99 | In stock | |
| 8 | 5454284 | COVER,TB,JCASE | 1 | $39.99 | In stock | |
| 9 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | $869.99 | In stock | |
| 10 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 11 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 6 | $4.99 | In stock | |
| 12 | 5268050-329 | BRKT-ROUTING,BLK [TO 02/06/2026] | 1 | $34.99 | In stock | |
| 12 | 5276381-329 | BRKT-ROUTING,ECOAT [FROM 02/26/2026] | 1 | Price TBD | Out of stock | |
| 13 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | $4.99 | In stock | |
| 14 | 5275805 | BRKT-HARNESS ROUTING | 1 | $14.99 | In stock | |
| 15 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 3 | $2.99 | In stock | |
| 16 | 5271546-329 | BRKT-FUSE HOLDER,PREM,BLK | 1 | $34.99 | In stock | |
| 17 | 7520715 | SCR-TFHFL-M6X1.0X25,ZY3 | 3 | $4.99 | In stock | |
| 18 | 4080566 | ASM-DONGLE,TELEMATICS,500K | 1 | Price TBD | Out of stock | |
| 19 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | $4.99 | In stock |
