Schematic diagram
Polaris•Schematic assembly
BODY, DOOR, MOUNTING
Product Description

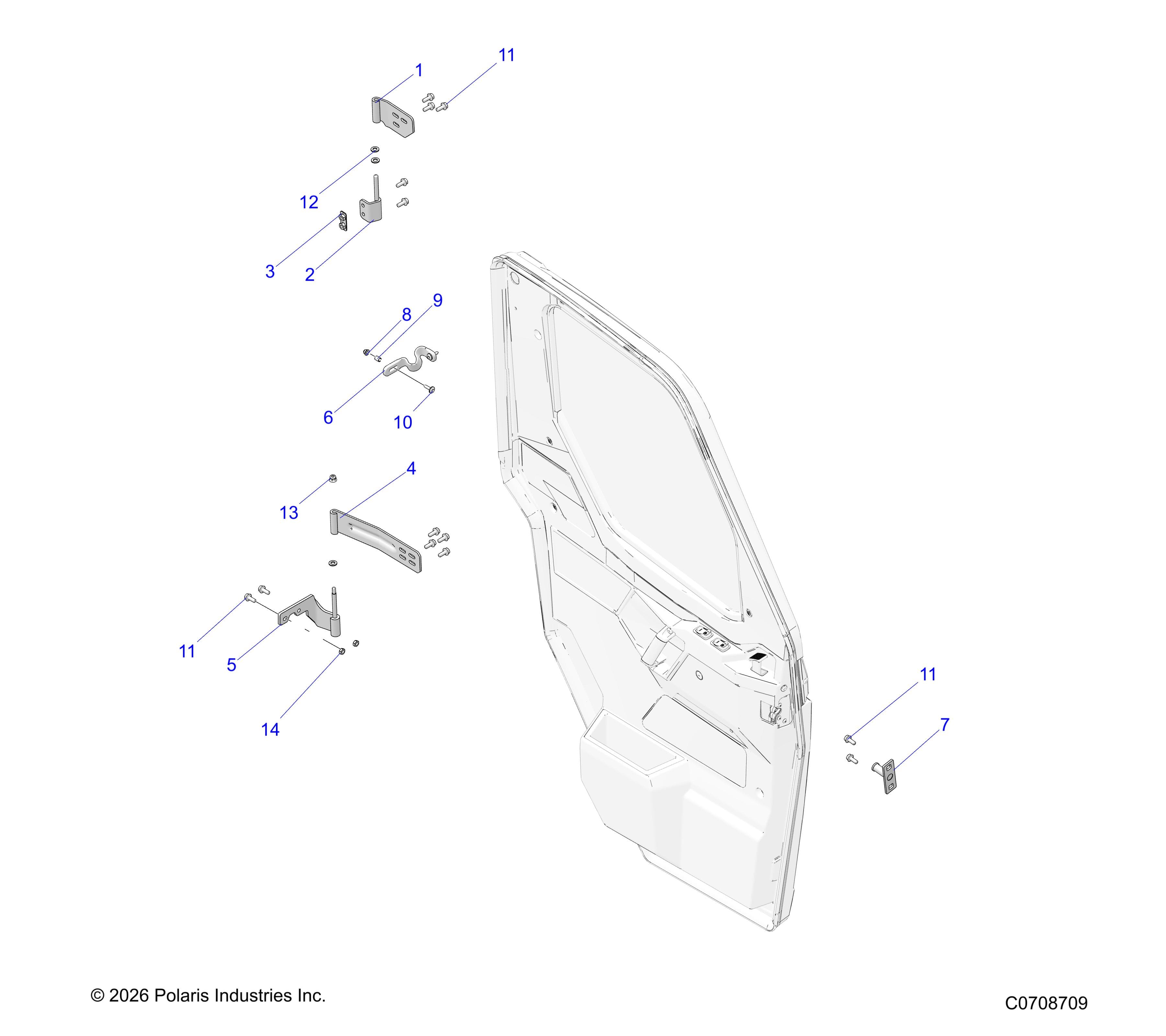

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS Assembly ID: 246165
Vehicle Compatibility
- 2026 Polaris RANGER 1000 XP NSTR ULTIMATE TRAIL BOSS
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2207709 | K-HRDWR SVC HINGE CAB ZS [INCLUDES 3,5,7 & 11-13] [TO 05/01/2026] | 1 | $119.99 | Out of stock Est. Aug 10, 2026 | |
| - | 2213208 | K-HINGE ASM,UPR,LH [INCLUDES 1-3 & 11-12] [FROM 05/01/2026] | 1 | $69.99 | Out of stock | |
| - | 2213209 | K-HINGE ASM,UPR,RH [INCLUDES 1-3 & 11-12] [FROM 05/01/2026] | 1 | $69.99 | Out of stock | |
| - | 2207708 | K-HRDWR SVC HINGE, DOOR, ZS [INCLUDES 1,4 & 11] | 1 | $109.99 | In stock | |
| 1 | ------- | BRKT-HINGE,DOOR UPPER,LH.BLK | 1 | Price TBD | Out of stock | |
| 1 | ------- | BRKT-HINGE,DOOR UPPER,RH,BLK | 1 | Price TBD | Out of stock | |
| 2 | ------- | WELD-HINGE,UPPER,LH,BLK | 1 | Price TBD | Out of stock | |
| 2 | ------- | WELD-HINGE,UPPER,RH,BLK | 1 | Price TBD | Out of stock | |
| 3 | 5256140-458 | PLATE-HINGE,BLK | 1 | $16.99 | In stock | |
| 4 | ------- | BRKT-HINGE,DOOR LWR,BLK | 1 | Price TBD | Out of stock | |
| 5 | ------- | WELD-HINGE,LOWER,LH,BLK | 1 | Price TBD | Out of stock | |
| 5 | ------- | WELD-HINGE,LOWER,RH,BLK | 1 | Price TBD | Out of stock | |
| 6 | 2205280 | K-SVC, RUBBER LIMIT STRAPS [INCLUDES 6 & 8-10] | 1 | $44.99 | In stock | |
| 6 | 5450947 | STRAP-RUBBER,DOOR LIMIT,TTN | 1 | $12.99 | In stock | |
| 7 | 2207717 | K- HRDWR SVC STRIKER, ZS [1 PER KIT] | 1 | $44.99 | In stock | |
| 8 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | $1.49 | In stock | |
| 9 | 5139193 | SPACER-ALUM,M6,DOOR RETNR,TTN | 1 | $15.99 | In stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | $4.99 | In stock | |
| 11 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 13 | $3.99 | In stock | |
| 12 | 5439712 | WASHER-10.25X19.0X2.0,NYLON | 3 | $1.99 | In stock | |
| 13 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 1 | $2.99 | In stock | |
| 14 | 7547076 | NUT-HEX-M8X1.25 8 ZPB. | 2 | $2.99 | In stock |
