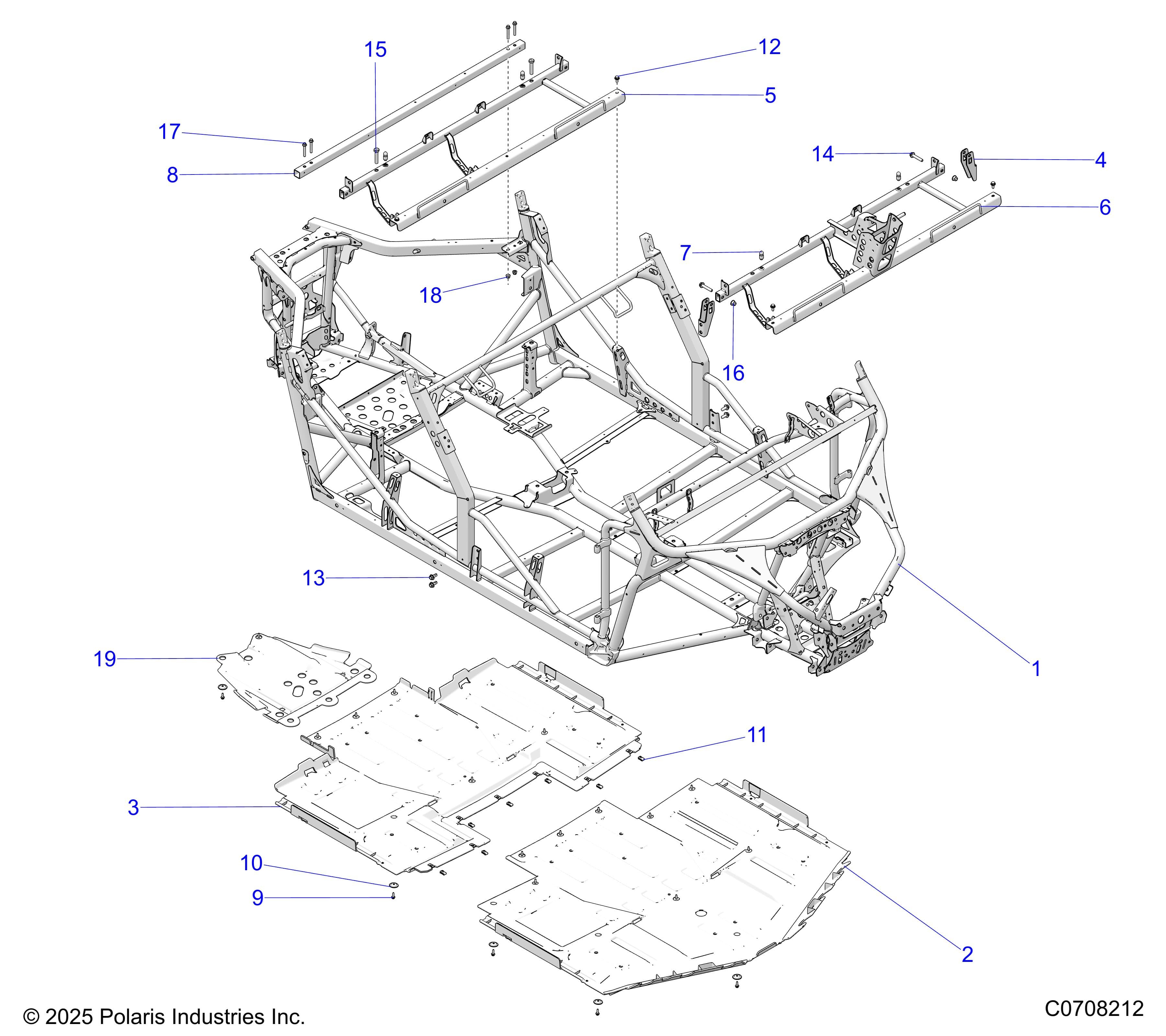

2026 GENERAL XP4 1000 PREMIUM — CHASSIS, MAIN FRAME AND SKID PLATES diagram

Schematic diagram

Polaris•Schematic assembly

CHASSIS, MAIN FRAME AND SKID PLATES

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 245328

Vehicle Compatibility

  • 2026 Polaris GENERAL XP4 1000 PREMIUM

Checkout Note

Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
12213068K-FRAME,MAIN,GENERAL CREW,BLK1$4,459.99
In stock
25466366-070PLATE-SKID,GE,CREW,FRT,BLK1$209.99
In stock
35466367-070PLATE-SKID,GE,CREW,REAR,BLK1$169.99
In stock
41029760BRKT-SEAT SUPPORT,CREW2$54.99
In stock
51029793-329WELD-SEAT BASE,REAR.E-COAT1$289.99
In stock
61029842-329WELD-SEAT BASE,E-COAT1$419.99
In stock
75632848LATCH, PLUNGER, SEAT4Price TBD
Out of stock
81029761ASM-TUBE,TOP FRAME1$114.99
In stock
97518529SCR-M6X1.0X20,HXHD,FLG,TDFM,BK19Price TBD
Out of stock
107556065WASHER-SKID PLATE19Price TBD
Out of stock
117081305CLIP-U SPEED NUT7Price TBD
Out of stock
127518555SCR-TFHFL-M8X1.25X20 CHS ZOD4Price TBD
Out of stock
137518934SCR-M10X1.5X25-8.8 HFS ZOD4Price TBD
Out of stock
147519285SCR-HXFL-M10X1.25X55 10.9 ZOD2Price TBD
Out of stock
157528402SCR-HH-M12X1.75X60 10.9 ZTC2Price TBD
Out of stock
167547333NUT-HXFL M10X1.25 8 ZTB NYL2Price TBD
Out of stock
177517281SCR-M8X1.25X55,HX/FL-Y4Price TBD
Out of stock
187547332NUT- M8X1.25, FLG, NYLOC-OLIVE D4Price TBD
Out of stock
195456433-070PLATE-SKID,REAR,BLK1Price TBD
Out of stock
