Polaris•Schematic assembly

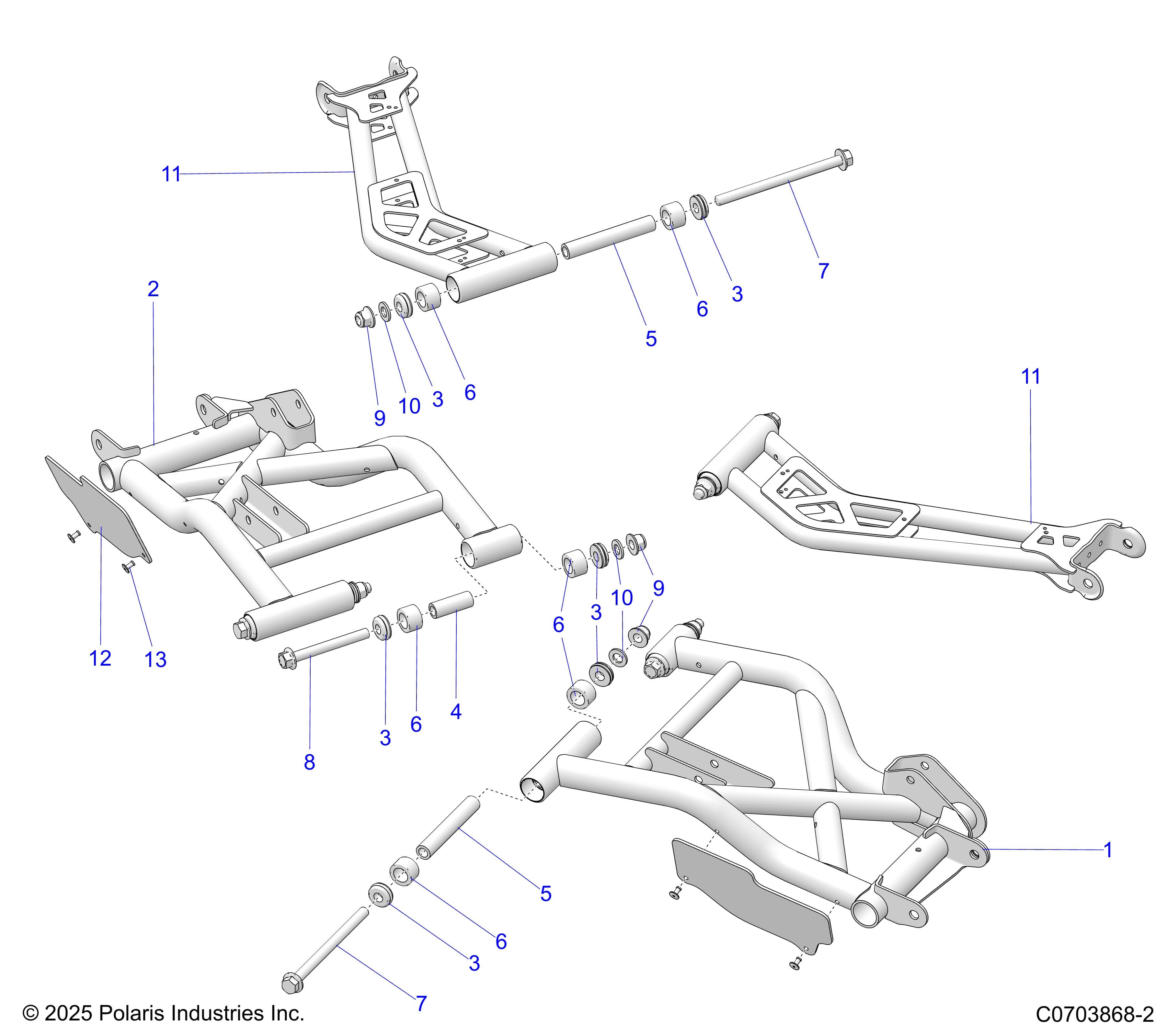

SUSPENSION, REAR CONTROL ARMS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP 1000 PREMIUM Assembly ID: 244823
Vehicle Compatibility
- 2026 Polaris GENERAL XP 1000 PREMIUM
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1024922-458 | WELD-CNTRL,ARM,RR,LW,LH,64,BLK | 1 | $184.99 | In stock | |
| 2 | 1024923-458 | WELD-CNTRL,ARM,RR,LW,RH,64,BLK | 1 | $184.99 | Out of stock Est. Aug 6, 2026 | |
| 3 | 1543612 | ASM-PIVOT CAP, SEALED, M12 | 12 | Price TBD | Out of stock | |
| 4 | 5140555 | SHAFT-PIVOT,SHORT,M12 [TO 7/16/2025] | 4 | $10.99 | In stock | |
| 4 | 5144660 | SHAFT-PIVOT,SHORT,M12 [FROM 7/16/2025] | 4 | Price TBD | Out of stock | |
| 5 | 5139991 | SHAFT-PIVOT, LONG, M12 | 4 | Price TBD | Out of stock | |
| 6 | 5452271 | BUSHING-STANDARD, SUSP, M12 | 12 | Price TBD | Out of stock | |
| 7 | 7520294 | SCR-HXFL-M12X1.5X170 10.9 ZOD | 4 | Price TBD | Out of stock | |
| 8 | 7520479 | SCR-HXFL-M12X1.5X105 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 9 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 6 | Price TBD | Out of stock | |
| 10 | 7556287 | WSHR-13.0X24.0X2.5 ZPC | 6 | Price TBD | Out of stock | |
| 11 | 1024921-458 | WELD-A-ARM,REAR,UPR,64,BLK | 2 | $124.99 | In stock | |
| 12 | 5456405 | SHIELD-SHOCK,ROD | 2 | $24.99 | In stock | |
| 13 | 7621460 | RIVET-POP 3/16 (.376-.500) AL-LFB | 4 | Price TBD | Out of stock |
