Schematic diagram
Polaris•Schematic assembly

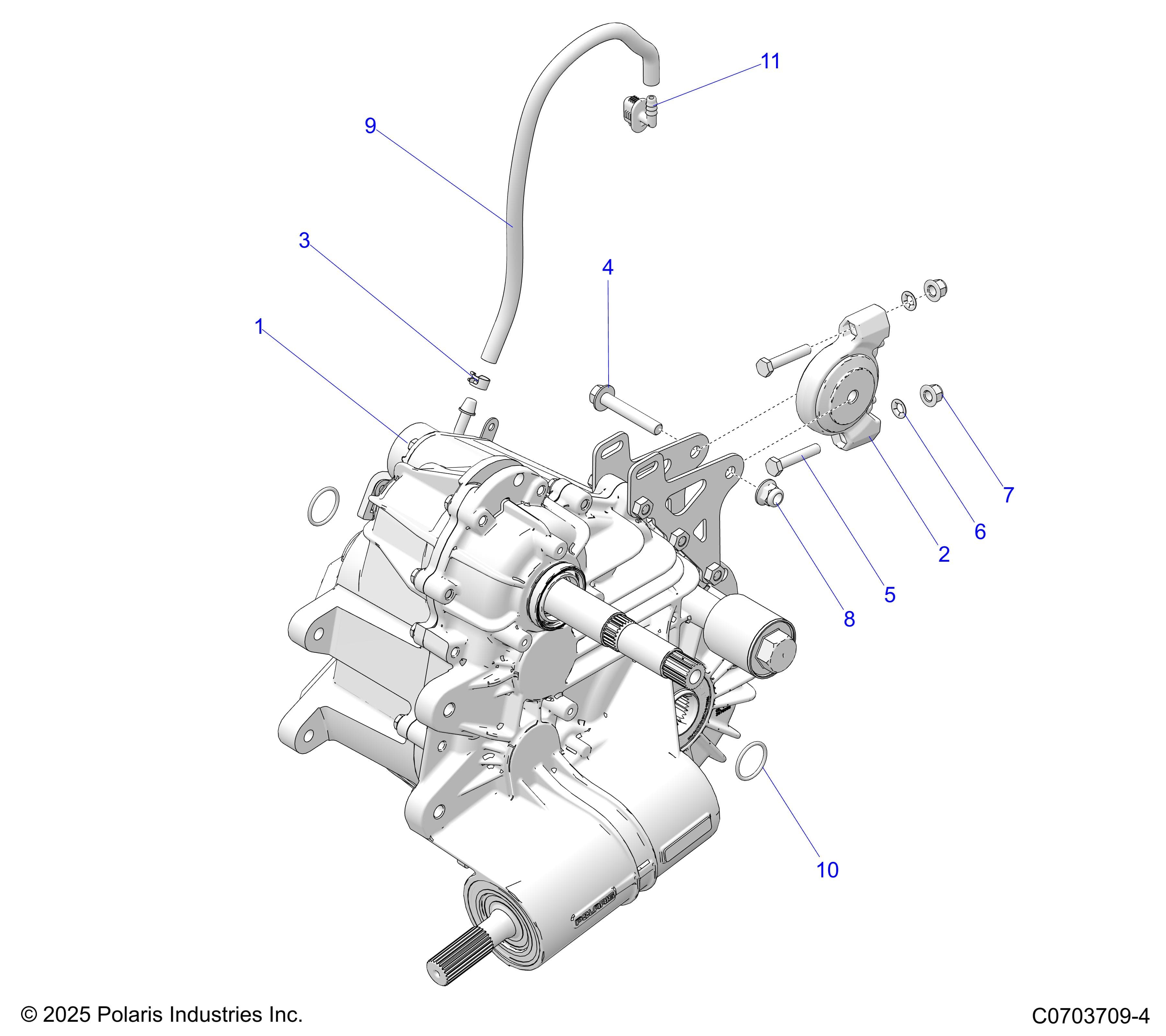

DRIVE TRAIN, MAIN GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP 1000 PREMIUM Assembly ID: 244796
Vehicle Compatibility
- 2026 Polaris GENERAL XP 1000 PREMIUM
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1334263 | ASM-GEARCASE [FOR INTERNALS SEE DRIVE TRAIN, MAIN GEARCASE INTERNALS] | 1 | $4,899.99 | In stock | |
| 2 | 1333242 | MOUNT-ISOLATOR,70 DURO | 1 | Price TBD | Out of stock | |
| 3 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | Price TBD | Out of stock | |
| 4 | 7518563 | SCR-HXFL-M10X1.25X60 8.8 ZOD | 1 | Price TBD | Out of stock | |
| 5 | 7519097 | SCREW-HH M8X1.25X45 8.8 ZOD | 2 | Price TBD | Out of stock | |
| 6 | 7547030 | NUT-5/16-PAL-Y | 2 | Price TBD | Out of stock | |
| 7 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 8 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 9 | 8450040-43 | FUEL LINE-43 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 10 | 5143247 | O-RING,28.24X2.62,VITON,60A | 2 | Price TBD | Out of stock | |
| 11 | 5453464 | FITTING-VENT LINE,90 | 1 | Price TBD | Out of stock |
