Polaris•Schematic assembly

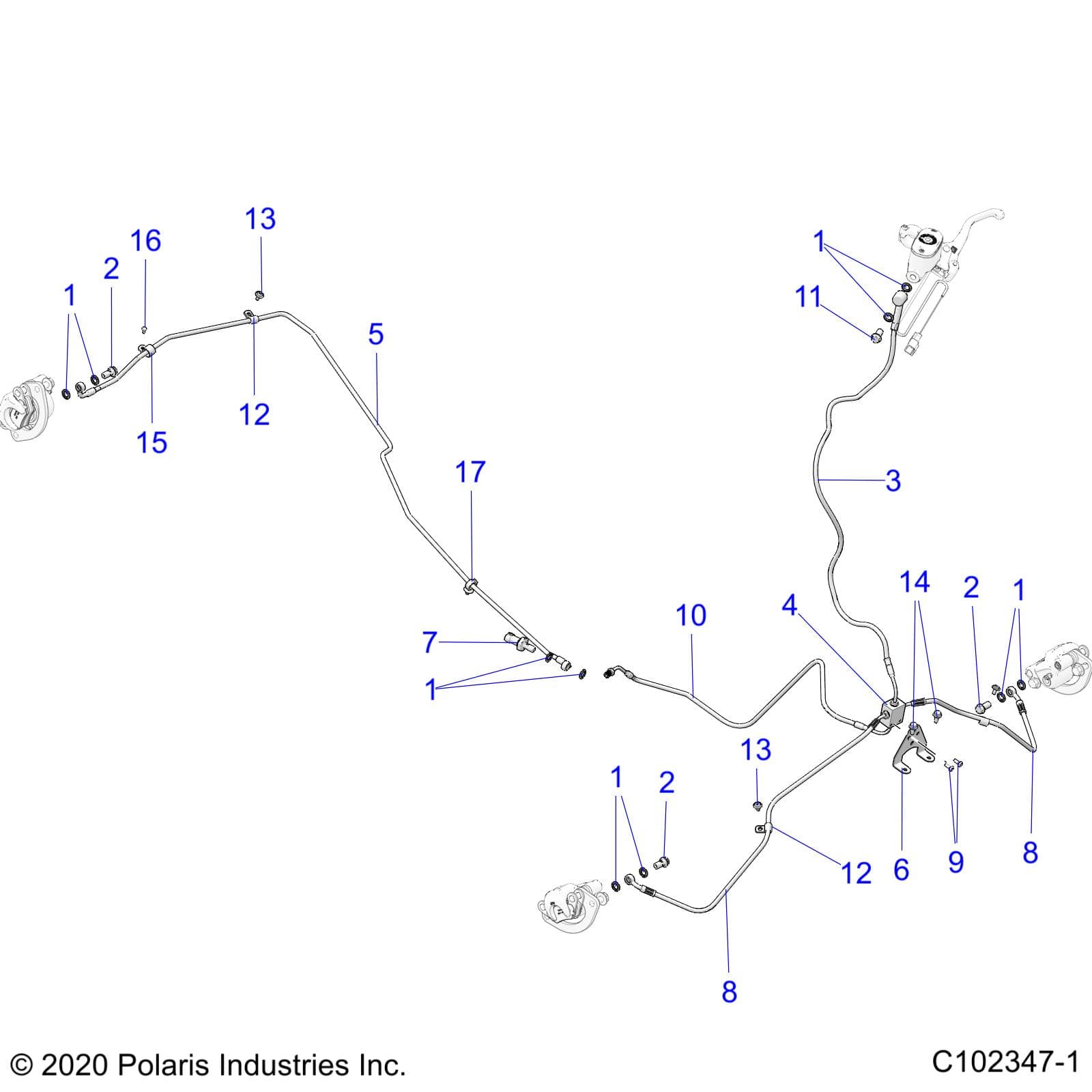

BRAKES, BRAKE LINES - A26SVA85A4 (C102347-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER 850 48" R02 - A26SVA85A4 Assembly ID: 244684
Vehicle Compatibility
- 2026 Polaris SCRAMBLER 850 48" R02 - A26SVA85A4
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5413212 | SEAL-STAT-0-3/8, 70EP | 10 | Price TBD | Out of stock | |
| 2 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 3 | Price TBD | Out of stock | |
| 3 | 1914102 | LINE-BRK,MCT | 1 | $104.99 | In stock | |
| 4 | 7052372 | FITTING, CROSS | 1 | $74.99 | In stock | |
| 5 | 1914132 | LINE-BRAKE,REAR,XP,2UP,NONDIFF | 1 | $154.99 | In stock | |
| 6 | 5257768 | BRACKET, JUNCTION BLOCK | 1 | $12.99 | In stock | |
| 7 | 4081240 | SWITCH-BRK,M10X1.25,SGL,30-79 [TO 1/14/2026] | 1 | Price TBD | Out of stock | |
| 7 | 4081314 | SWITCH-BRK,M10X1.25,SGL,30-79 [FRM 1/14/2026] | 1 | $104.99 | In stock | |
| 8 | 1911668 | LINE, BRAKE, CALIPER, FRONT | 2 | $99.99 | In stock | |
| 9 | 7512024 | SCR-#10-24X1/2PH/TORX-TRIRD-Y | 2 | Price TBD | Out of stock | |
| 10 | 1911669 | LINE, BRAKE, JB TO FT MC | 1 | $104.99 | Out of stock Est. Oct 12, 2026 | |
| 11 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 12 | 7081246 | CLAMP, WIRE/TUBE .25 DIA | 2 | Price TBD | Out of stock | |
| 13 | 7518176 | SCR-10-24X1/2 PH/TX/TRIRD/SEMB | 3 | Price TBD | Out of stock | |
| 14 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 2 | Price TBD | Out of stock | |
| 15 | 7080499 | CLAMP-CABLE, 9/16 I.D. | 1 | Price TBD | Out of stock | |
| 16 | 7621330 | RIVET-POP5/32(.126-.250)-SS-ST | 1 | $1.49 | In stock | |
| 17 | 7670116 | CLIP, ROUTING, .472 B.D., HINGED | 1 | Price TBD | Out of stock |
