Polaris•Schematic assembly

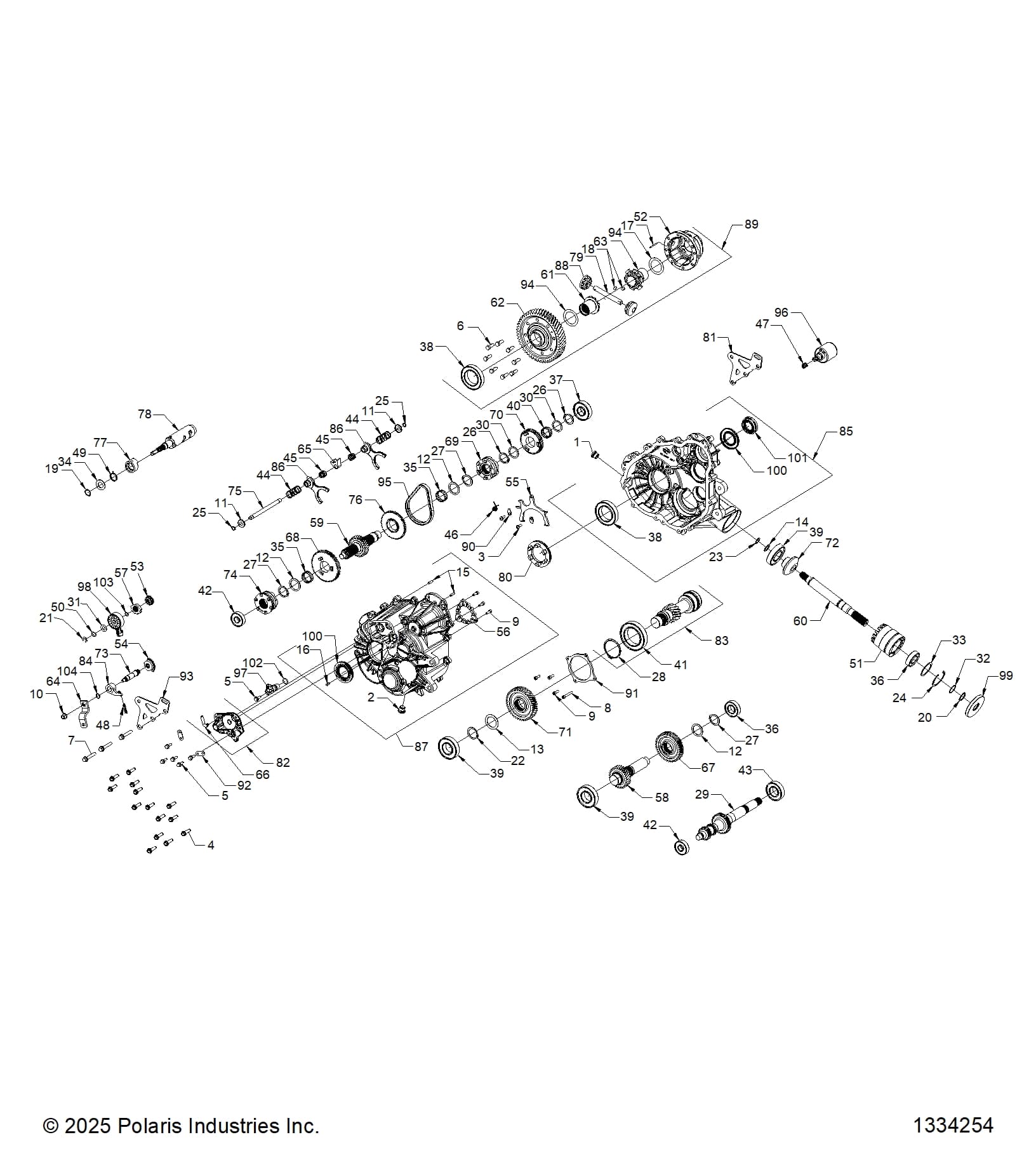

DRIVE TRAIN, MAIN GEARCASE INTERNALS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 244328
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 102 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1334254 | ASM-GEARCASE [INCLUDES ALL] | 1 | $4,899.99 | In stock | |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234309 | SCREW, 6-LOBE, PAN HD M6 X 1 X 16 | 2 | Price TBD | Out of stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 14 | Price TBD | Out of stock | |
| 5 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 6 | 3236169 | SCREW, CAP HH M8 X 1.25 X 25 | 8 | Price TBD | Out of stock | |
| 7 | 3235207 | SCREW, HEX FLANGE M8 X 50 | 3 | Price TBD | Out of stock | |
| 8 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | Price TBD | Out of stock | |
| 9 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 6 | Price TBD | Out of stock | |
| 10 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 11 | 3234091 | WASHER-CUP | 2 | Price TBD | Out of stock | |
| 12 | 3235211 | WASHER-32.3X42X1.5(115288) | 3 | Price TBD | Out of stock | |
| 13 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | Price TBD | Out of stock | |
| 14 | 3236410 | WASHER, 22.5 X 30 X 1.5 | 1 | Price TBD | Out of stock | |
| 15 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 16 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 17 | 3236286 | PIN, DOWEL 3 X 40 | 1 | Price TBD | Out of stock | |
| 18 | 3236295 | PIN, DOWEL 8 X 10 | 2 | Price TBD | Out of stock | |
| 19 | 3233045 | RING,RETAINING BASIC,EXTERNAL 0.75 | 1 | Price TBD | Out of stock | |
| 20 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 1 | Price TBD | Out of stock | |
| 21 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 22 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | Price TBD | Out of stock | |
| 23 | 7710434 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 24 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 25 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 2 | Price TBD | Out of stock | |
| 26 | 3234205 | RING, RETAINING, | 2 | Price TBD | Out of stock | |
| 27 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 3 | Price TBD | Out of stock | |
| 28 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | Price TBD | Out of stock | |
| 29 | 3235754 | SHAFT, INPUT 42T/20T/25T | 1 | $269.99 | In stock | |
| 30 | 3233378 | WASHER,THRUST,1.187 X 1.500 X .0600 | 2 | Price TBD | Out of stock | |
| 31 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 32 | 3234272 | SHIM, 1.180 OD X 0.995 ID | 1 | Price TBD | Out of stock | |
| 33 | 3234273 | SHIM, 2.040 OD X 1.63 ID | 1 | Price TBD | Out of stock | |
| 34 | 3235883 | SPACER, 19.4 X 34.0 X 2.0 | 1 | Price TBD | Out of stock | |
| 35 | 3233014 | BEARING, NEEDLE | 2 | Price TBD | Out of stock | |
| 36 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 2 | Price TBD | Out of stock | |
| 37 | 3233020 | BEARING | 1 | Price TBD | Out of stock | |
| 38 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 39 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 3 | Price TBD | Out of stock | |
| 40 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | Price TBD | Out of stock | |
| 41 | 3235218 | BEARING, BALL, 6012 C3 60 X 95 X 18 | 1 | Price TBD | Out of stock | |
| 42 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | Price TBD | Out of stock | |
| 43 | 3235496 | BEARING, BALL 6206RSH2 STD 30 X 62 X 16 | 1 | Price TBD | Out of stock | |
| 44 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | Price TBD | Out of stock | |
| 45 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | Price TBD | Out of stock | |
| 46 | 3234276 | SPRING, TORSION, RETURN | 1 | Price TBD | Out of stock | |
| 47 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 | Price TBD | Out of stock | |
| 48 | 3234578 | SPRING, COMPRESSION 0.36 O.D. X 1.125 | 1 | Price TBD | Out of stock | |
| 49 | 3235885 | SPRING, TORSION | 1 | Price TBD | Out of stock | |
| 50 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 51 | 3234278 | TUBE, SNORKEL MACHINED | 1 | Price TBD | Out of stock | |
| 52 | 3236287 | CARRIER, DIFFERENTIAL MACH | 1 | Price TBD | Out of stock | |
| 53 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 54 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 55 | 3235455 | FORK, PIVOT SHIFT, REAR DIFF | 1 | Price TBD | Out of stock | |
| 56 | 3235456 | PLATE, PARK, 12 FACE | 1 | Price TBD | Out of stock | |
| 57 | 3235982 | STAR, DETENT, | 1 | Price TBD | Out of stock | |
| 58 | 3235223 | SHAFT-IDLER,29T(285803) | 1 | Price TBD | Out of stock | |
| 59 | 3235224 | SHAFT, REVERS,E 29T | 1 | Price TBD | Out of stock | |
| 60 | 3236439 | SHAFT, FRONT OUTPUT | 1 | Price TBD | Out of stock | |
| 61 | 3236290 | GEAR, 14T OUTPUT, MACH | 1 | Price TBD | Out of stock | |
| 62 | 3236291 | GEAR, 53T OUTPUT | 1 | Price TBD | Out of stock | |
| 63 | 3236289 | GEAR, 14T OUTPUT DISCONNECT, MACH | 1 | Price TBD | Out of stock | |
| 64 | 3235581 | BELLCRANK, 92 DEG | 1 | Price TBD | Out of stock | |
| 65 | 3234073 | COLLAR-SHIFT | 1 | Price TBD | Out of stock | |
| 66 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 67 | 3235229 | GEAR-44T,STAGE2 | 1 | Price TBD | Out of stock | |
| 68 | 3235232 | GEAR-LOW,67T(352856) | 1 | Price TBD | Out of stock | |
| 69 | 3235233 | ENGAGEMENT DOG,6-FACE(352857) | 1 | Price TBD | Out of stock | |
| 70 | 3235234 | GEAR-53T(352858) | 1 | Price TBD | Out of stock | |
| 71 | 3235236 | GEAR-46T,STAGE 3(352872) | 1 | Price TBD | Out of stock | |
| 72 | 3236412 | GEAR, 13T SNORKEL | 1 | Price TBD | Out of stock | |
| 73 | 3235238 | SHAFT-SHIFT(352973) | 1 | Price TBD | Out of stock | |
| 74 | 3235457 | SHIFT DOG, PARK/LOW (353357) | 1 | Price TBD | Out of stock | |
| 75 | 3235542 | RAIL-SHIFT SHAFT(353622) | 1 | Price TBD | Out of stock | |
| 76 | 3235755 | SPROCKET-48T,6-FACE REVERSE | 1 | Price TBD | Out of stock | |
| 77 | 3235983 | CAM, PARK | 1 | Price TBD | Out of stock | |
| 78 | 3235984 | DRUM, SHIFT MACH, | 1 | Price TBD | Out of stock | |
| 79 | 3236292 | PIN, DIFFERENTIAL | 1 | Price TBD | Out of stock | |
| 80 | 3236293 | DOG, ENGAGEMENT | 1 | Price TBD | Out of stock | |
| 81 | 3235399 | WELDMENT REAR MOUNT BRACKET63 | 1 | Price TBD | Out of stock | |
| 82 | 3235713 | SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE] | 1 | Price TBD | Out of stock | |
| 83 | 3235336 | SUBASM.,SHAFT [INCLUDESBEARING, RET. RING] | 1 | Price TBD | Out of stock | |
| 84 | 3235452 | SUBASSEMBLY, PAWL, DETENT, ROLLER | 1 | Price TBD | Out of stock | |
| 85 | 3236437 | SUBASSEMBLY, LH CASE [INCLUDES ALL HARDWARE] | 1 | Price TBD | Out of stock | |
| 86 | 3235920 | SUBASSEMBLY, SHIFT FORK | 2 | Price TBD | Out of stock | |
| 87 | 3235995 | SUBASSEMBLY, RH COVER [INCLUDES ALL HARDWARE] | 1 | Price TBD | Out of stock | |
| 88 | 3236288 | SUBASSEMBLY, PINION GEAR | 2 | Price TBD | Out of stock | |
| 89 | 3236285 | SUBASSEMBLY, DIFFERENTIAL | 1 | Price TBD | Out of stock | |
| 90 | 3234934 | RETAINER-FORK | 2 | Price TBD | Out of stock | |
| 91 | 3235241 | COVER-BEARING,CNTR DR. [CENTER DRIVE] | 1 | Price TBD | Out of stock | |
| 92 | 3235350 | BRACKET, WIRE HARNESS | 2 | Price TBD | Out of stock | |
| 93 | 3235398 | BRACKET, MOUNT, REAR | 1 | Price TBD | Out of stock | |
| 94 | 3236294 | WASHER, THRUST, 40.83 X 56.25 X 0.38 | 2 | Price TBD | Out of stock | |
| 95 | 3234737 | CHAIN,SIL 101,.25P X .40W X58L | 1 | Price TBD | Out of stock | |
| 96 | 3235478 | SOLENOID | 1 | Price TBD | Out of stock | |
| 97 | 4013908 | SENSOR-SPEED,TRANS | 1 | Price TBD | Out of stock | |
| 98 | 7662299 | SWITCH, ROTARY , 2 PIN RESISTIVE | 1 | Price TBD | Out of stock | |
| 99 | 3235658 | SEAL, TRIPLE LIP, VITON, 25 X 80 X 10 | 1 | $69.99 | In stock | |
| 100 | 3235052 | SEAL, TRIPLE LIP, VITON HELIX 40X70X7 | 2 | Price TBD | Out of stock | |
| 101 | 3235495 | SEAL, TRIPLE LIP, VITON HELIX 30 X 47 | 1 | Price TBD | Out of stock | |
| 102 | 3234302 | O-RING | 1 | Price TBD | Out of stock | |
| 103 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 104 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock |
