Polaris•Schematic assembly

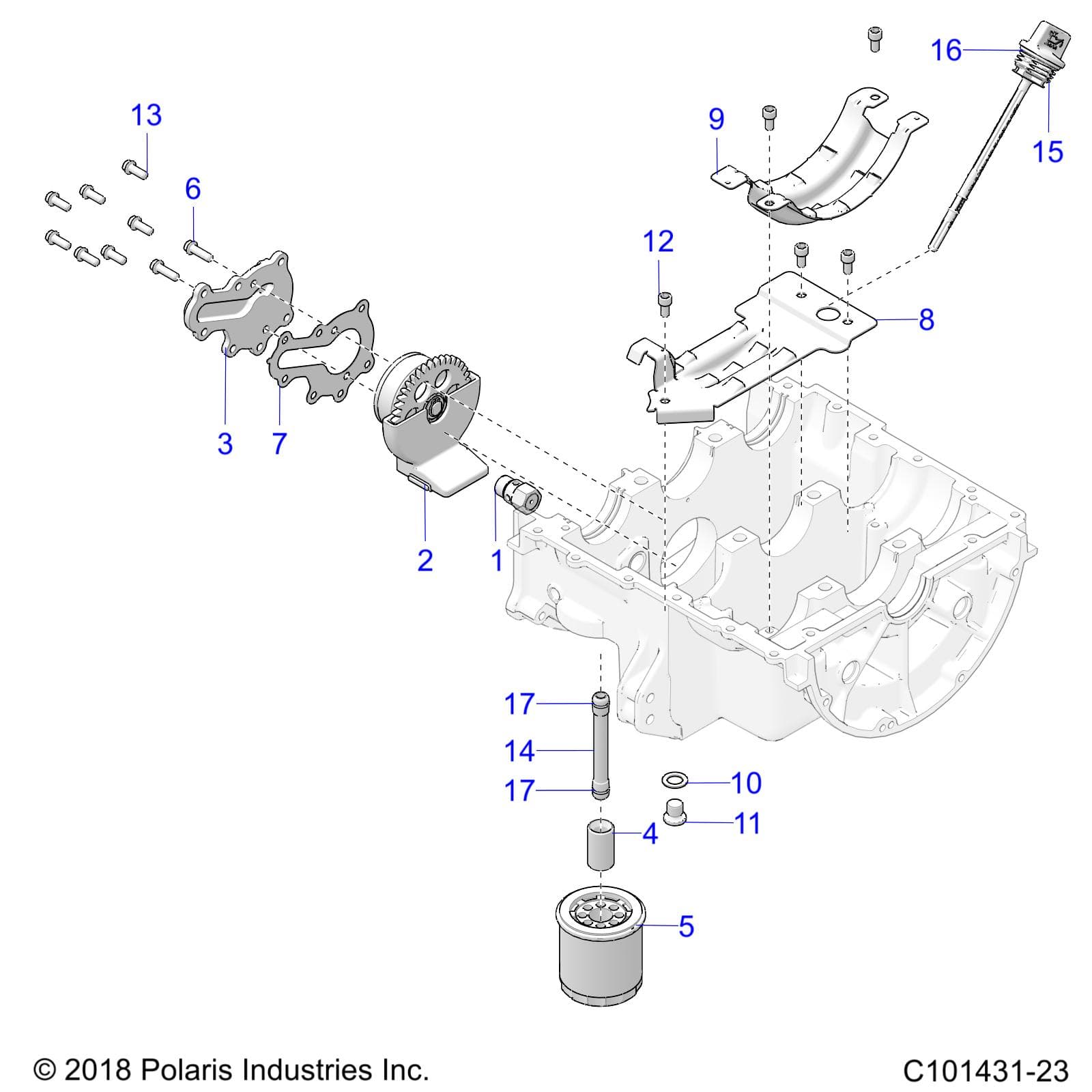

ENGINE, OIL SYSTEM - A26SGE95AB (C101431-23)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243943
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2520672 | ASM-REGULATOR VALVE,85 PSI | 1 | Price TBD | Out of stock | |
| 2 | 2521041 | ASM., PUMP, OIL | 1 | $194.99 | Out of stock | |
| 3 | 2520560 | CAP, OIL PUMP | 1 | $39.99 | In stock | |
| 4 | 2521530 | ADAPTOR-FILTER,STRAIGHT | 1 | Price TBD | Out of stock | |
| 5 | 2520799 | FILTER-OIL,10 MICRON | 1 | Price TBD | Out of stock | |
| 5 | 2522485 | FILTER-HD,OIL [HD OPTION] | 1 | Price TBD | Out of stock | |
| 6 | 7528224 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 [INCL 7518576 W/SEALANT] | 2 | $5.99 | In stock | |
| 7 | 3610128 | SEAL, OIL PUMP CAP | 1 | $7.99 | In stock | |
| 8 | 5257984 | PLATE, WINDAGE, PTO | 1 | $69.99 | In stock | |
| 9 | 5250397 | PLATE, WINDAGE, MAG | 1 | $44.99 | In stock | |
| 10 | 7556937 | WASHER-COPPER SEALING | 1 | Price TBD | Out of stock | |
| 11 | 7052306 | PLUG-SOCKET,M12X1.5 DIN 908A | 1 | Price TBD | Out of stock | |
| 12 | 7517739 | SCREW-SH-M6X1.0X12 10.9 ZPB D204 | 5 | Price TBD | Out of stock | |
| 13 | 7519329 | SCR-HXFL,M6X1.0X16 8.8ZY3DL204 | 7 | Price TBD | Out of stock | |
| 14 | 2522027 | TUBE, OIL TRANSFER [INCL. 17] | 1 | $39.99 | In stock | |
| 15 | 2521028 | DIPSTICK, OIL FILL [INCL. 5412530] | 1 | $44.99 | In stock | |
| 16 | 5412530 | O-RING-26.65X2.62,0600083 | 1 | $1.99 | In stock | |
| 17 | 5413007 | O-RING,.364X.504X.07, 0600083 | 2 | Price TBD | Out of stock |
