Polaris•Schematic assembly

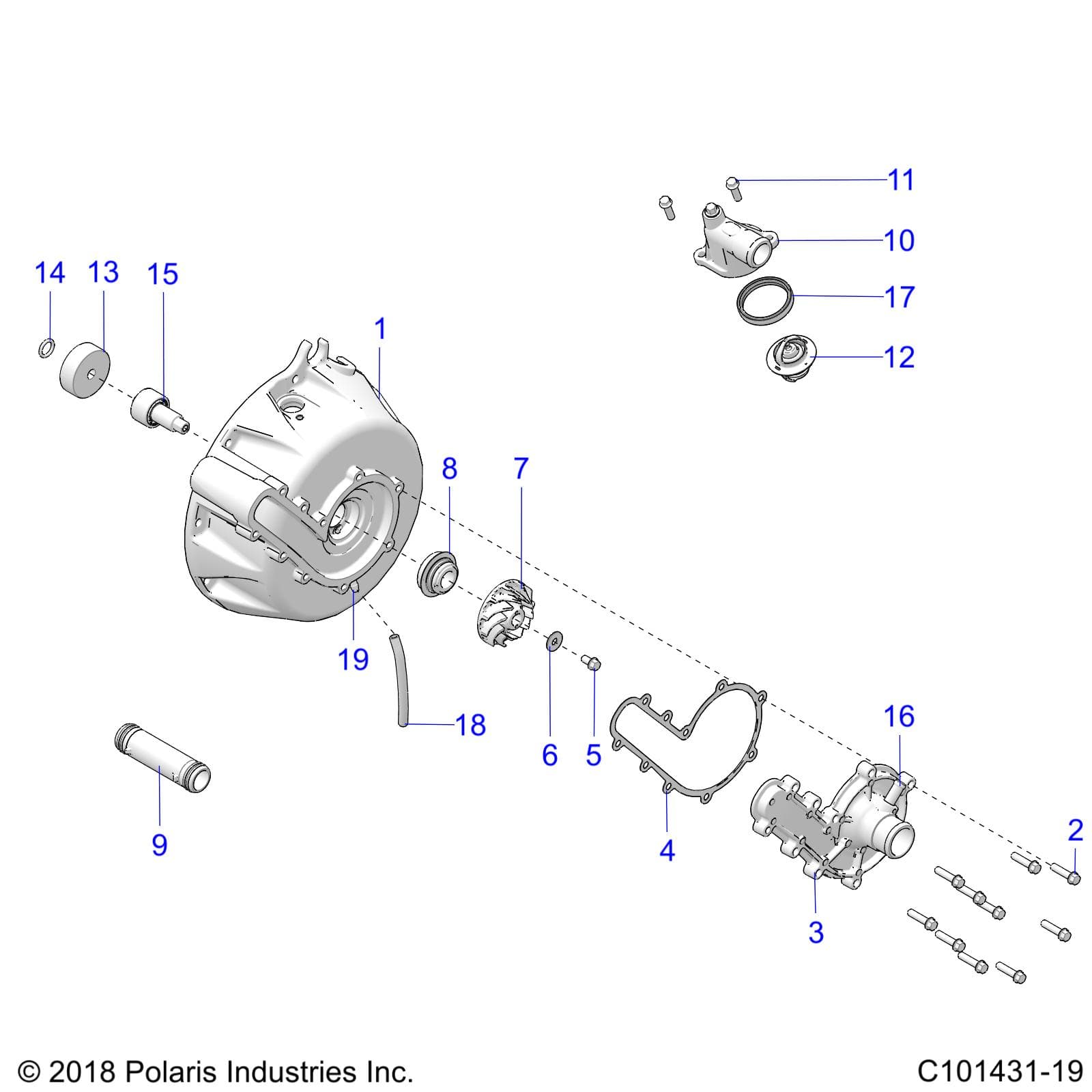

ENGINE, COOLING SYSTEM and WATER PUMP - A26SGE95AB (C101431-19)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243937
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1209135 | ASM-STATOR CVR W/WATERPUMP [TO 9/8/2026] | 1 | $999.99 | In stock | |
| 1 | 1209536 | ASM-STATOR CVR W/WATERPUMP [FRM 9/8/20026][TO 4/2/2027] | 1 | Price TBD | Out of stock | |
| 1 | 1209540 | ASM-STATOR CVR W/WATERPUMP [FRM 4/2/2027] | 1 | Price TBD | Out of stock | |
| 1 | 5144073 | COVER-STATOR W/WATERPMP [COVER ONLY] | 1 | $89.99 | In stock | |
| 2 | 7527861 | SCR-M6X1.0X25-HXHD CLR COAT | 10 | $2.99 | In stock | |
| 3 | 2204955 | KIT-WATERPUMP COVER W/FTNG [INCL. COVER, FITTING, GASKET] | 1 | $74.99 | In stock | |
| 3 | 5144074 | COVER-WATERPMP W/BP | 1 | $84.99 | In stock | |
| 4 | 5412954 | GASKET, COVER | 1 | $39.99 | Out of stock Est. Jul 16, 2026 | |
| 5 | 7527860 | SCR-M6X1.0X12-HXHD | 1 | $2.99 | In stock | |
| 6 | 7558730 | WASHER-FLAT M6 | 1 | $4.99 | In stock | |
| 7 | 5639192 | IMPELLER-WATERPMP,CAST,60MM | 1 | $59.99 | In stock | |
| 8 | 3610136 | SEAL [TO 4/20/2026] | 1 | $89.99 | In stock | |
| 8 | 3610450 | SEAL-WATERPUMP 16MM [FRM 4/20/2026] | 1 | Price TBD | Out of stock | |
| 9 | 7055563 | FITTING-COOLANT 3/8 [USED W/ 5453707] | 1 | $11.99 | In stock | |
| 9 | 5453707 | TUBE, WATER TRANSFER [INCL. O-RINGS] | 1 | $104.99 | In stock | |
| 10 | 1206006 | ASM, THERMOSTAT COVER [INCL. COVER, BLEED SCREW, WASHER] | 1 | $54.99 | In stock | |
| 11 | 7521072 | SCR-M6X1.0X13,SL/HX/FL-Z,BLEED | 1 | $4.99 | In stock | |
| 12 | 7557179 | WASHER-FLAT,6.15X12X1MM-AL | 1 | $3.99 | In stock | |
| 13 | 5140079 | COUPLER, SPLINE INT, WP BEARING | 1 | $39.99 | In stock | |
| 14 | 5417753 | O-RING-12.37X2.62,VITON | 1 | $1.99 | In stock | |
| 15 | 3514921 | BEARING-W/SHAFT,WATERPUMP OPC | 1 | $64.99 | In stock | |
| 16 | 5413948 | SEAL-THERMOSTAT | 1 | Price TBD | Out of stock | |
| 17 | 8360209 | TUBING-NYLON 5MMX100MM BLK | 1 | $17.99 | In stock | |
| 18 | 7055562 | FITTING-6 MM,BRASS | 1 | $16.99 | In stock | |
| 19 | 5412955 | O-RING,.864X1.00X.07 | 4 | $8.99 | In stock |
