Polaris•Schematic assembly

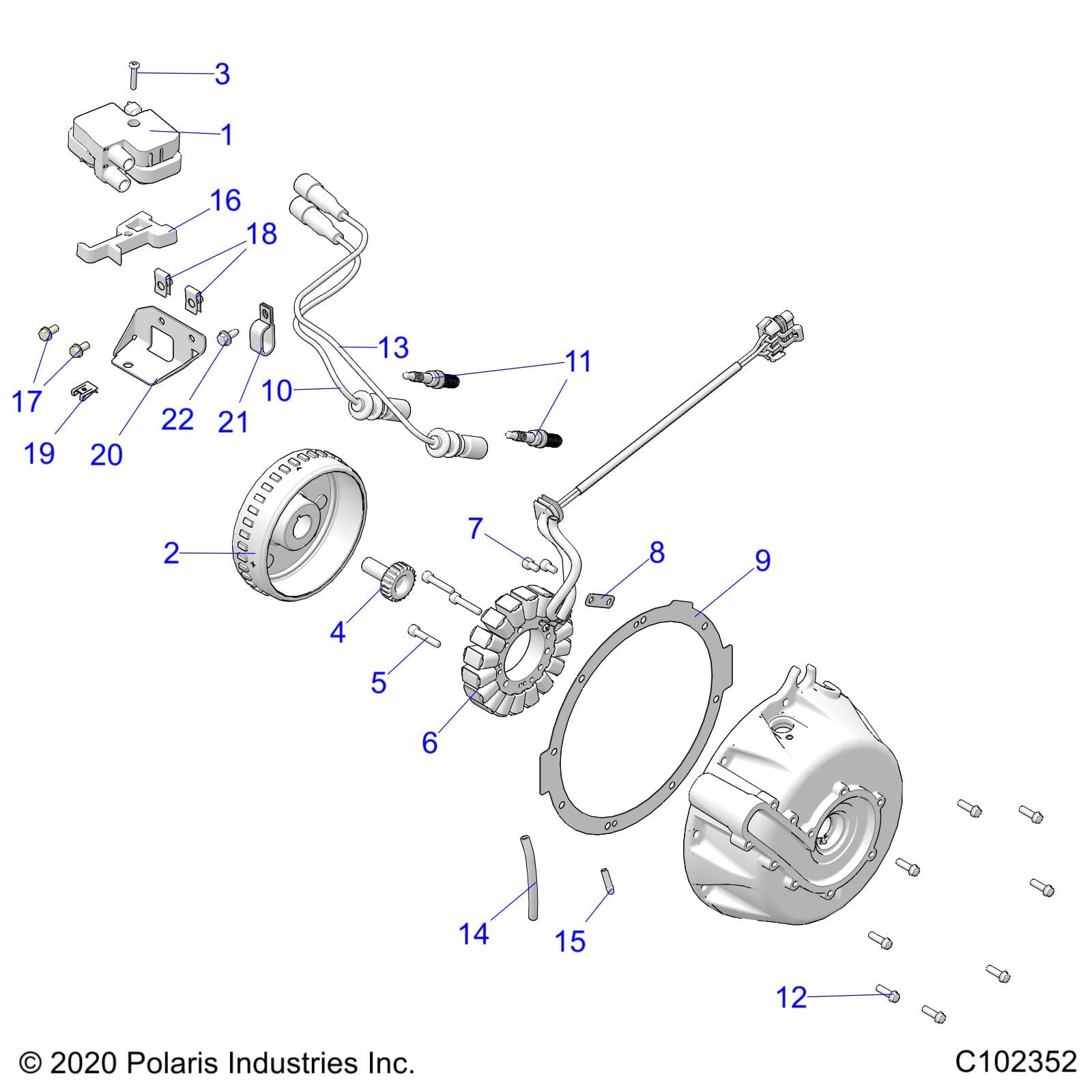

ELECTRICAL, IGNITION SYSTEM - A26SGE95AB (C102352)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243927
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 2 | 4080627 | FLYWHEEL, 560 WATT [TO 4/2/2027] | 1 | $369.99 | In stock | |
| 2 | 4015585 | FLYWHEEL, 560 WATT [FRM 4/2/2027] | 1 | Price TBD | Out of stock | |
| 3 | 7517566 | SCR-#10X1 1/2 TX PN PLASTITE-B | 1 | $4.99 | In stock | |
| 4 | 5140078 | BOLT, WATER PUMP DRIVE, LH | 1 | $39.99 | In stock | |
| 5 | 7527858 | SCR-M6X1.0X30,HX/SOC/CP-Y/D | 3 | $6.99 | In stock | |
| 6 | 4080574 | STATOR,560W | 1 | $589.99 | In stock | |
| 7 | 7527859 | SCR-M6X1.0X10,SHCS | 2 | $5.99 | In stock | |
| 8 | 5271377 | RETAINER-STATOR WIRE | 1 | $7.99 | In stock | |
| 9 | 5813680 | GASKET, STATOR COVER | 1 | $49.99 | In stock | |
| 10 | 4082591 | WIRE, SPARK PLUG, PTO | 1 | $69.99 | In stock | |
| 11 | 3022553 | SPARKPLUG, 12MM [TO 3/30/2026] | 2 | $9.99 | In stock | |
| 11 | 3022438 | SPARKPLUG-12MM REA6MC [FRM 3/30/2026] | 2 | $7.99 | In stock | |
| 12 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 8 | Price TBD | Out of stock | |
| 13 | 4082592 | WIRE, SPARK PLUG, MAG | 1 | $74.99 | In stock | |
| 14 | 8360209 | TUBING-NYLON 5MMX100MM BLK | 1 | $17.99 | In stock | |
| 15 | 7055562 | FITTING-6 MM,BRASS | 1 | $16.99 | In stock | |
| 16 | 5436577 | SPACER-COIL MOUNT | 1 | Price TBD | Out of stock | |
| 17 | 7515133 | SCR-HXFL-1/4-20X0.5 GR5.1 ZY3 | 2 | $4.99 | In stock | |
| 18 | 7670096 | NUT-CHIMNEY 1/4-20,GR-5 | 2 | $1.99 | In stock | |
| 19 | 7670157 | NUT, U-TYPE, AB | 1 | $4.99 | In stock | |
| 20 | 5256478-329 | BRACKET, COIL MOUNT, BLACK | 1 | $59.99 | In stock | |
| 21 | 7081364 | CLAMP-DBL TUBE,.562 VNLCOATED | 1 | $1.74 | In stock | |
| 22 | 7518513 | BOLT,M6X1.0X15,HXFLG,TAP/T-OD | 1 | Price TBD | Out of stock |
