Polaris•Schematic assembly

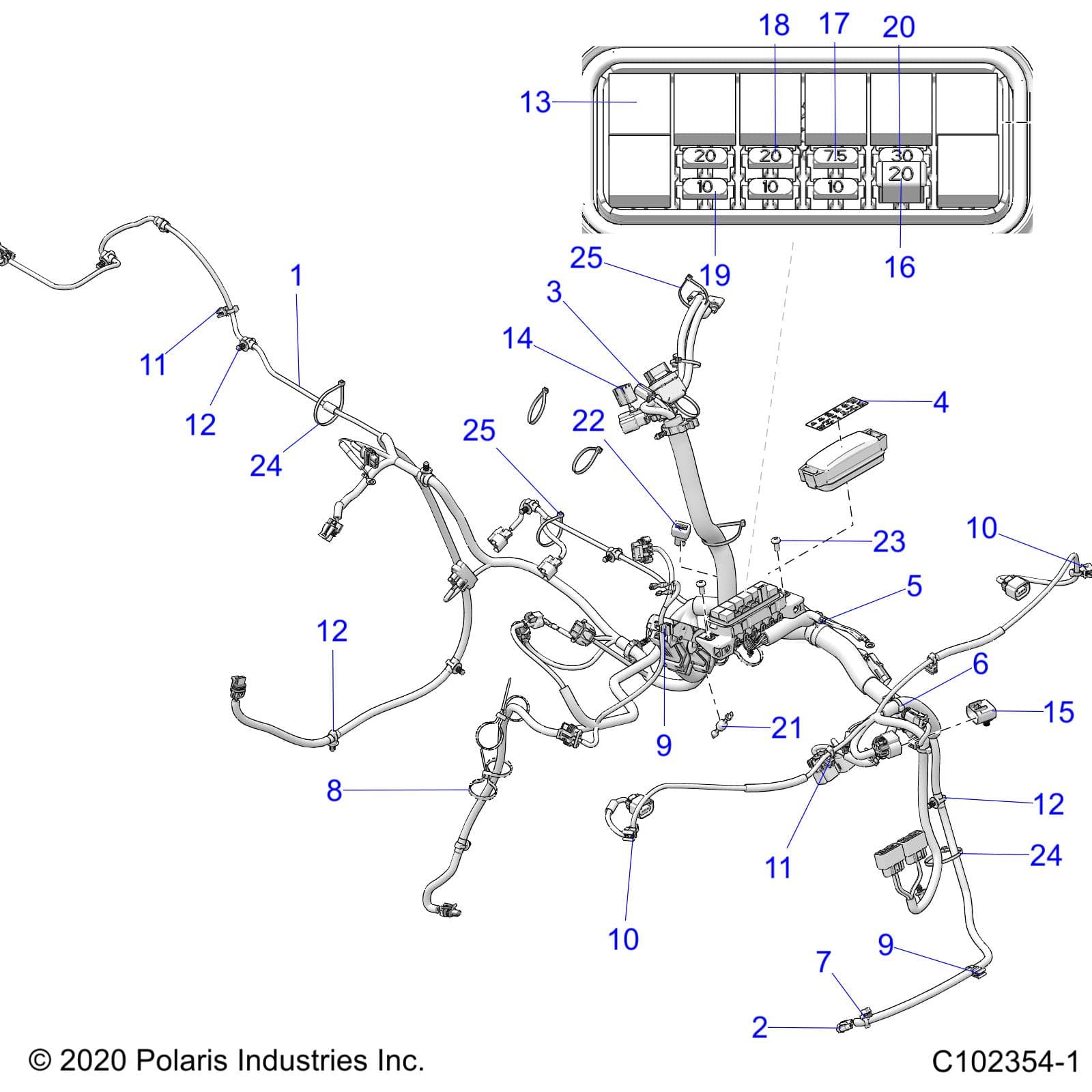

ELECTRICAL, HARNESS - A26SGE95AB (C102354-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243925
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 22 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2415160 | HARNESS-MAIN,SCR 850/1000 ETC [INCL. 1-22] | 1 | $1,149.99 | In stock | |
| 2 | 4014891 | CONNECTOR-CAP, WINCH CONTACTOR | 1 | $10.99 | In stock | |
| 3 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 4 | 7300363 | LABEL-FUSE BOX | 1 | Price TBD | Out of stock | |
| 5 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 6 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 7 | 7082402 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 8 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 3 | Price TBD | Out of stock | |
| 9 | 7081890 | CLIP-EDGE,HARNESS | 2 | Price TBD | Out of stock | |
| 10 | 7081824 | CLIP-EDGE,DIA5-50MM,OUT-SER | 2 | Price TBD | Out of stock | |
| 11 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 5 | Price TBD | Out of stock | |
| 12 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 13 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 8 | Price TBD | Out of stock | |
| 14 | 4016237 | CONNECTOR-SW, OTTO K1, 5 WIRE | 1 | $5.99 | In stock | |
| 15 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 16 | 4011372 | BREAKER-CIRCUIT,20 AMP | 1 | Price TBD | Out of stock | |
| 17 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 1 | Price TBD | Out of stock | |
| 18 | 2434017 | FUSE-PARK,20 AMP | 3 | Price TBD | Out of stock | |
| 19 | 2434016 | FUSE-IGNITION,10 AMP | 4 | Price TBD | Out of stock | |
| 20 | 2434015 | FUSE-MAIN,30 AMP | 2 | Price TBD | Out of stock | |
| 21 | 2411035 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 22 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 23 | 7518914 | SCREW-M6X1X14,PN/TX,TRI-LOB | 2 | Price TBD | Out of stock | |
| 24 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 3 | Price TBD | Out of stock | |
| 25 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 6 | Price TBD | Out of stock |
