Schematic diagram
Polaris•Schematic assembly

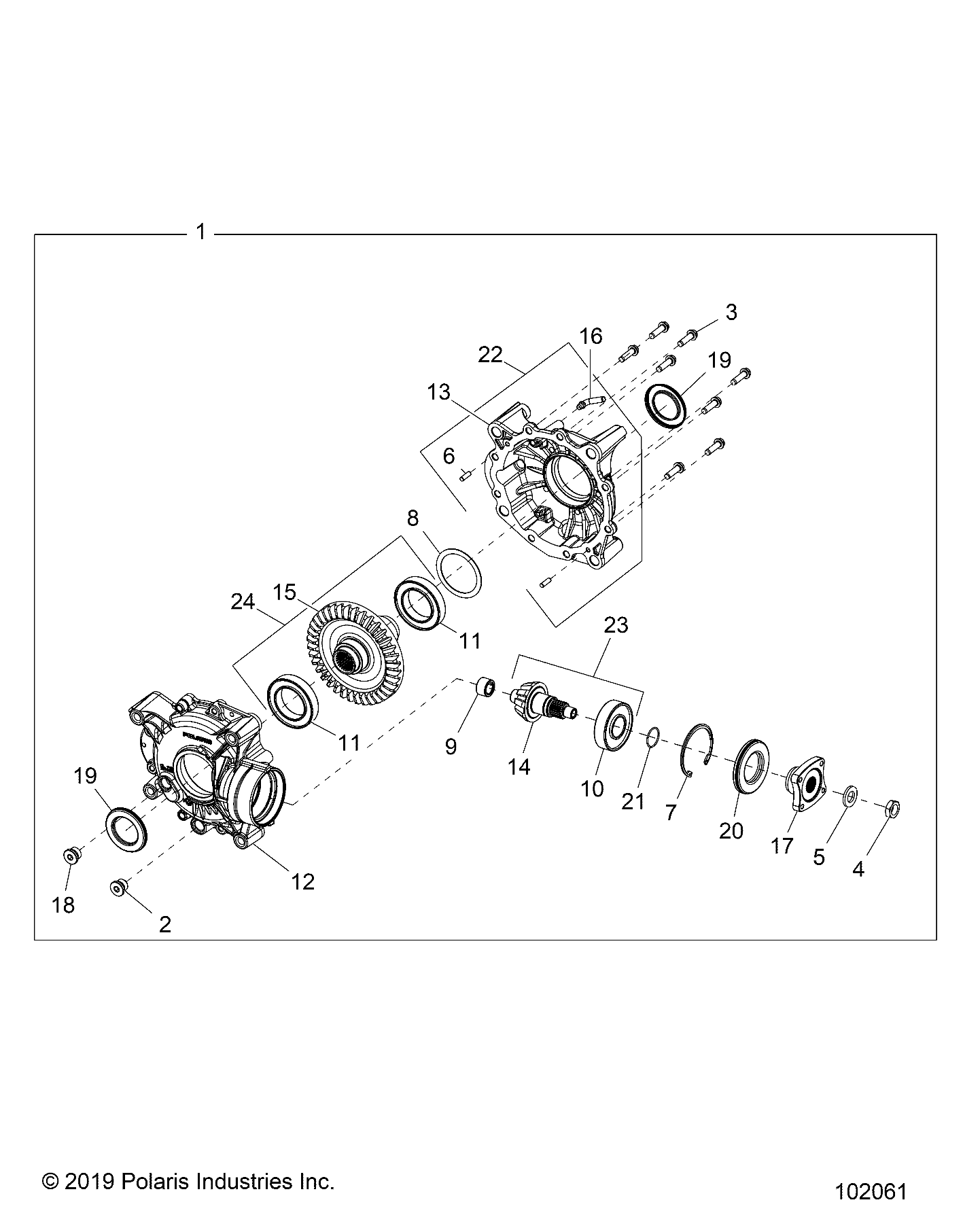

DRIVE TRAIN, REAR GEARCASE INTERNALS - A26SGE95AB (102061)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243918
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1334288 | ASM-REAR DRIVE [INCL. ALL] | 1 | $829.99 | Out of stock Est. Jan 5, 2027 | |
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 8 | Price TBD | Out of stock | |
| 4 | 3234776 | NUT, HEX M16 X 2.0 | 1 | $12.99 | In stock | |
| 5 | 3234777 | CUP WASHER, LOCKING 17 X 30 | 1 | $54.99 | In stock | |
| 6 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 7 | 3234158 | RING, RETAINING BEVELED INTERNAL 2.835 | 1 | $29.99 | In stock | |
| 8 | 3233581 | SHIM 3.1 X 2.5 | 1 | $49.99 | In stock | |
| 9 | 3234799 | BEARING, NEEDLE, DRAWN SHELL .75 X 1.0 X 0.625 | 1 | $19.99 | In stock | |
| 10 | 3233714 | BEARING, BALL 6306 STD 30X72X19 | 1 | $39.99 | In stock | |
| 11 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 12 | 3236317 | CASE, RH | 1 | $319.99 | In stock | |
| 13 | 3236148 | CASE, LH | 1 | $334.99 | In stock | |
| 14 | 3234798 | GEAR-37T STRAIGHT BEVEL | 1 | $204.99 | In stock | |
| 15 | 3234792 | SHAFT-PINION,10T,STRAIGHTBEVEL | 1 | Price TBD | Out of stock | |
| 16 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 17 | 3234782 | COUPLER | 1 | $124.99 | In stock | |
| 18 | 3234755 | PLUG, M18 X 1.5 [CHECK/FILL] | 1 | Price TBD | Out of stock | |
| 19 | 3235052 | SEAL, TRIPLE LIP, VITON HELIX 40X70X7 | 2 | Price TBD | Out of stock | |
| 20 | 3235051 | SEAL, TRIPLE LIP | 1 | $39.99 | In stock | |
| 21 | 3234785 | O-RING 2-023 NITRILE | 1 | $11.99 | In stock | |
| 22 | 3234937 | SUBASSEMBLY, COVER LH | 1 | $184.99 | In stock | |
| 23 | 3236485 | SUBASSEMBLY, PINION | 1 | $219.99 | In stock | |
| 24 | 3236486 | SUBASSEMBLY, GEAR | 1 | $899.99 | In stock |
