Schematic diagram
Polaris•Schematic assembly

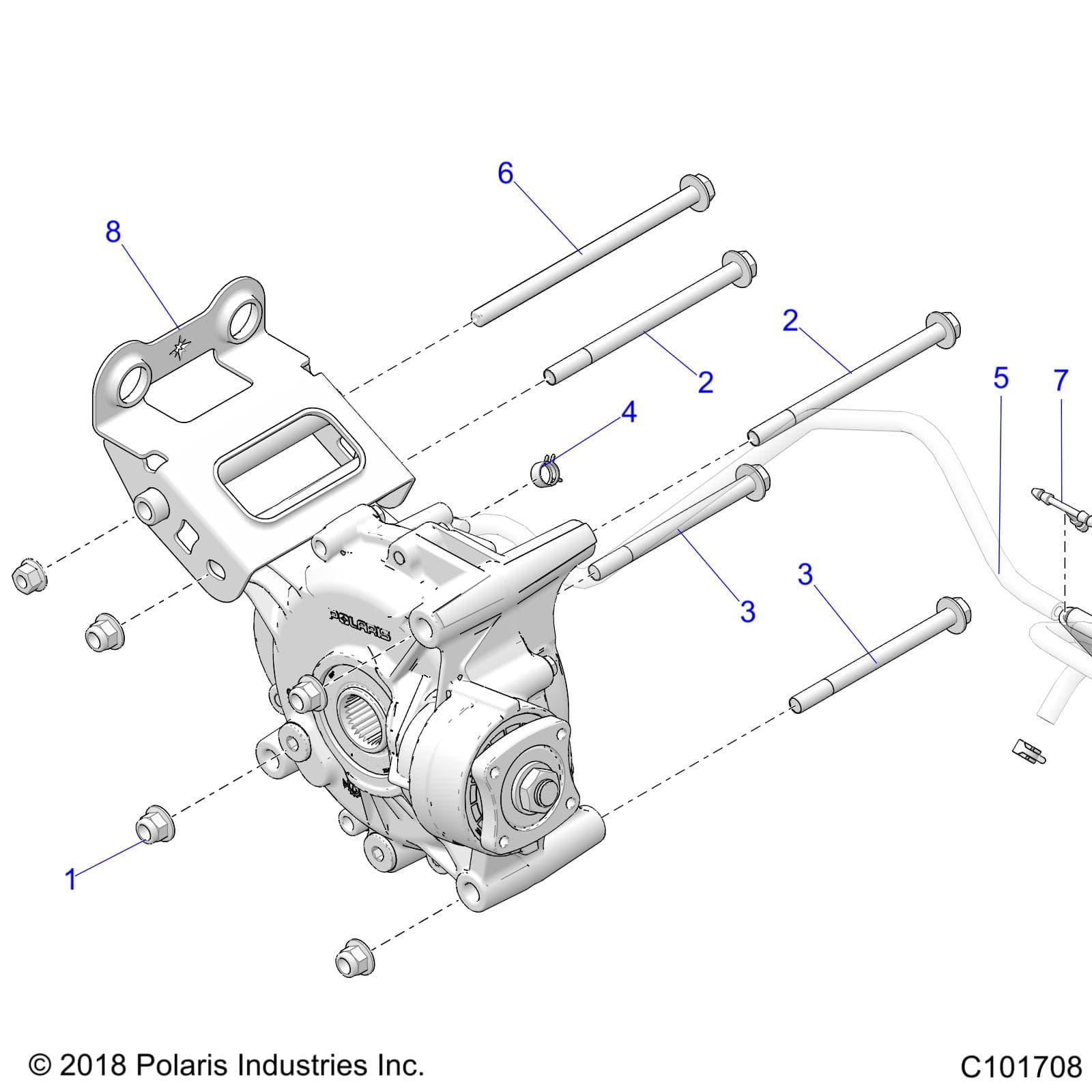

DRIVE TRAIN, GEARCASE MOUNTING, REAR - A26SGE95AB (C101708)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB Assembly ID: 243913
Vehicle Compatibility
- 2026 Polaris SCRAMBLER XP 1000 S 49S R01 - A26SGE95AB
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 5 | Price TBD | Out of stock | |
| 2 | 7518696 | BOLT, FLANGE | 2 | $6.99 | In stock | |
| 3 | 7518680 | BOLT, FLANGE | 2 | $6.99 | In stock | |
| 4 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | Price TBD | Out of stock | |
| 5 | ------- | FUEL LINE-69 CM | 0 | Price TBD | Out of stock | |
| 6 | 7520971 | SCR-HXFL-M10X1.5X175,8.8,ZY3 | 1 | $12.99 | In stock | |
| 7 | 7052075 | FITTING-TEE, 1/4-1/4-BRB-NY | 1 | $11.99 | In stock | |
| 8 | 1024288-458 | WELD-MOUNT,REAR,DRIVE,BLK | 1 | $59.99 | In stock |
