Polaris•Schematic assembly
ELECTRICAL, COMPONENTS
Product Description

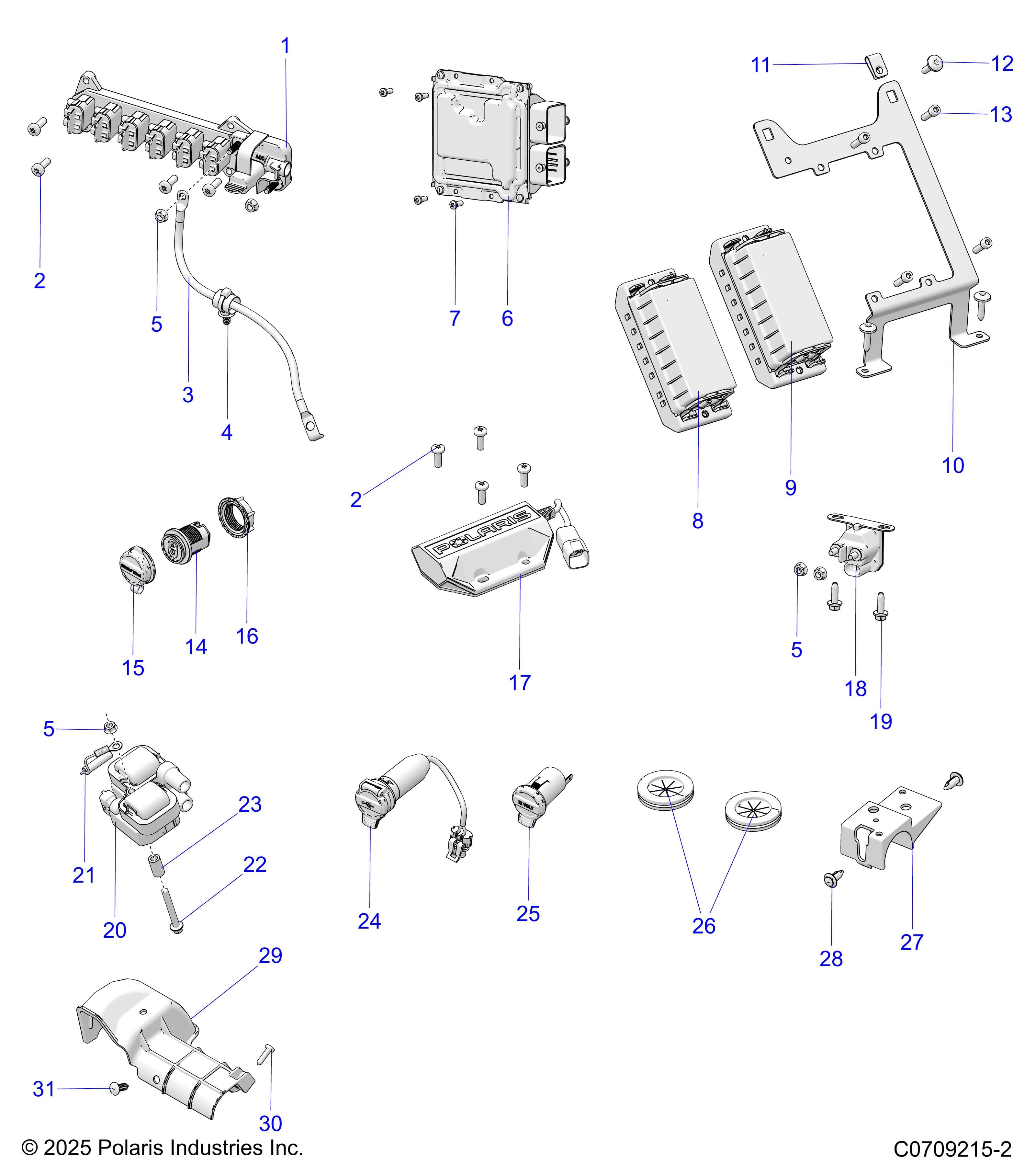

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 243675
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 29 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4016007 | BLOCK-TERMINAL,3 POST,TALL | 1 | Price TBD | Out of stock | |
| 1 | 4013891 | FUSE-CARTRIDGE,40A | 1 | Price TBD | Out of stock | |
| 1 | 5454283 | PLUG,ACCY TB | 6 | Price TBD | Out of stock | |
| 1 | 5454284 | COVER,TB,JCASE | 1 | Price TBD | Out of stock | |
| 2 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | Price TBD | Out of stock | |
| 3 | 4019175 | CABLE-GROUND,PULSE | 1 | $54.99 | In stock | |
| 4 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 1 | Price TBD | Out of stock | |
| 5 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 3 | Price TBD | Out of stock | |
| 6 | 4018203 | ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED] | 1 | Price TBD | Out of stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | Price TBD | Out of stock | |
| 8 | ------- | FUSE BLOCK SEE ELECTRICAL, HARNESS-CHASSIS | 1 | Price TBD | Out of stock | |
| 9 | ------- | FUSE BLOCK SEE ELECTRICAL, HARNESS-CHASSIS | 1 | Price TBD | Out of stock | |
| 10 | 5272830-329 | BRKT-PDM,HVAC,ECOAT | 1 | $44.99 | In stock | |
| 11 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | Price TBD | Out of stock | |
| 12 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 4 | Price TBD | Out of stock | |
| 13 | 7517305 | SCREW-SH-M6X1.0X20 8.8 ZPB | 4 | Price TBD | Out of stock | |
| 14 | 2415295 | ASM-CHARGE PORT,BASE [INCLUDES 15 & 16] | 1 | Price TBD | Out of stock | |
| 15 | 5417215 | CAP-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 16 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock | |
| 17 | 4080566 | ASM-DONGLE,TELEMATICS,500K | 1 | Price TBD | Out of stock | |
| 18 | 4014655 | SOLENOID-STARTER,SEALED | 2 | Price TBD | Out of stock | |
| 19 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 20 | 4010425 | COIL-EFI | 1 | Price TBD | Out of stock | |
| 21 | 4014422 | JUMPER, COIL GROUND | 1 | Price TBD | Out of stock | |
| 22 | 7517932 | SCR-M6X1.0X50.0 HX/FL-Y/D | 1 | Price TBD | Out of stock | |
| 23 | 5133658 | SPACER-COIL,FRONTIER | 1 | Price TBD | Out of stock | |
| 24 | 4019210 | PORT-USB | 1 | Price TBD | Out of stock | |
| 25 | 4080487 | RECEPTACLE-POD MNT,12 VOLT | 1 | Price TBD | Out of stock | |
| 26 | 5415049 | GROMMET-ELEC,CAB,SLIT | 2 | Price TBD | Out of stock | |
| 27 | 5459245 | CLIP-ROUTING,DASH | 5 | $1.99 | In stock | |
| 28 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 10 | Price TBD | Out of stock | |
| 29 | 5459040 | CLIP-ROUTING,ENGINE TUBE | 1 | $9.99 | In stock | |
| 30 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 1 | Price TBD | Out of stock | |
| 31 | 5414462 | RETAINER-MOULDING,BLACK | 1 | $10.99 | In stock |
