Schematic diagram
Polaris•Schematic assembly

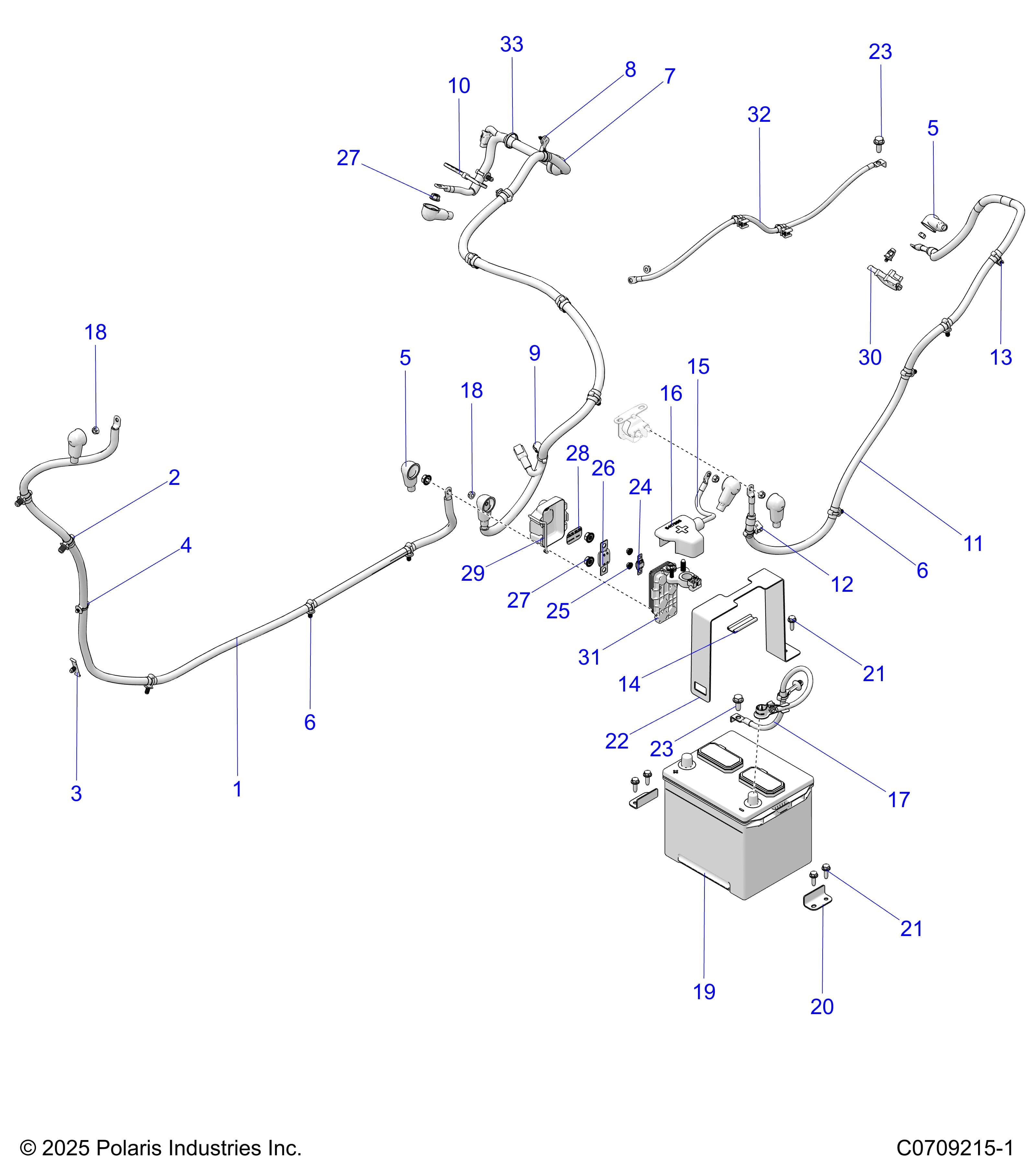

ELECTRICAL, BATTERY/CABLES
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 243674
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4019177 | CABLE-PULSE [INCLUDES 2-6] | 1 | $164.99 | In stock | |
| 2 | 7082414 | CLIP-FIR TREE,9.7-10.0MM HOLE | 2 | Price TBD | Out of stock | |
| 3 | 7082411 | CLIP-XMAS,6.35MM HOLE,TAPE-ON | 1 | Price TBD | Out of stock | |
| 4 | 7082003 | CABLE-TIE,DIA2.5-34MM,FIR-TREE | 3 | Price TBD | Out of stock | |
| 5 | 4011723 | BOOT, BATTERY, RED | 2 | Price TBD | Out of stock | |
| 6 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 11 | Price TBD | Out of stock | |
| 7 | 4081519 | CABLE-POWER,ALT,2P [INCLUDES 4, 6 & 8-10] | 1 | $214.99 | In stock | |
| 8 | 7083004 | XMAS, M6, OFFSET | 1 | $3.99 | In stock | |
| 9 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 10 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 11 | 4081517 | CABLE-POWER,STARTER,2P [INCLUDES 4-6, 12 & 13] | 1 | $124.99 | In stock | |
| 12 | 7081824 | CLIP-EDGE,DIA5-50MM,OUT-SER | 1 | Price TBD | Out of stock | |
| 13 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | Price TBD | Out of stock | |
| 14 | 5416083 | STRAP-BATT,SPACER,RUBBER | 1 | $4.99 | In stock | |
| 15 | 4081518 | CABLE-POWER,BATT,START [INCLUDES 5 & 16] | 1 | $44.99 | In stock | |
| 16 | 5417986 | COVER-BATT,TERM,B+ | 1 | $8.99 | In stock | |
| 17 | 4081830 | CABLE-GROUND,BATTERY | 1 | $64.99 | In stock | |
| 18 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 6 | Price TBD | Out of stock | |
| 19 | 4014132 | BATTERY-575 CCA,FLOODED,FILLED | 1 | Price TBD | Out of stock | |
| 19 | 4081855 | BATTERY-HD,AGM,SEALED,R2 [HD OPTION] | 1 | Price TBD | Out of stock | |
| 20 | 5272087-329 | BRKT-BATTERY,ECOAT | 2 | $12.99 | In stock | |
| 21 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 5 | Price TBD | Out of stock | |
| 22 | 5273478 | STRAP-BATTERY,STD | 1 | $24.99 | In stock | |
| 23 | 7520764 | SCR-HXFL-M8X1.25X20 TAP ZY3 | 1 | Price TBD | Out of stock | |
| 24 | 4080524-175 | FUSE-MIDI,175A | 1 | $18.99 | In stock | |
| 25 | 7548077 | NUT-HXFL-M5X0.8 8 ZTC SPC | 2 | $13.99 | In stock | |
| 26 | 4080525-225 | FUSE-MEGA,225A | 1 | $49.99 | In stock | |
| 27 | 7548084 | NUT-HXFL-M8X1.25 8 ZPC SPC | 4 | Price TBD | Out of stock | |
| 28 | 7197273 | LABEL-PDM,HVAC | 1 | $5.99 | In stock | |
| 29 | 4080187 | COVER-FUSEHOLDER | 1 | $13.99 | In stock | |
| 30 | 5465099-070 | BRKT-SPRT,CABLE,STRTR,35DG,BLK | 1 | $17.99 | In stock | |
| 31 | 4080188 | ASM-FUSEHOLDER,BATT,TERM | 1 | $114.99 | In stock | |
| 32 | 4081552 | CABLE-GROUND,ENGINE | 1 | $64.99 | In stock | |
| 33 | 7080138 | CABLE-TIE,DIA12-50MM,WTHR-RES. | 1 | Price TBD | Out of stock |
