Polaris•Schematic assembly

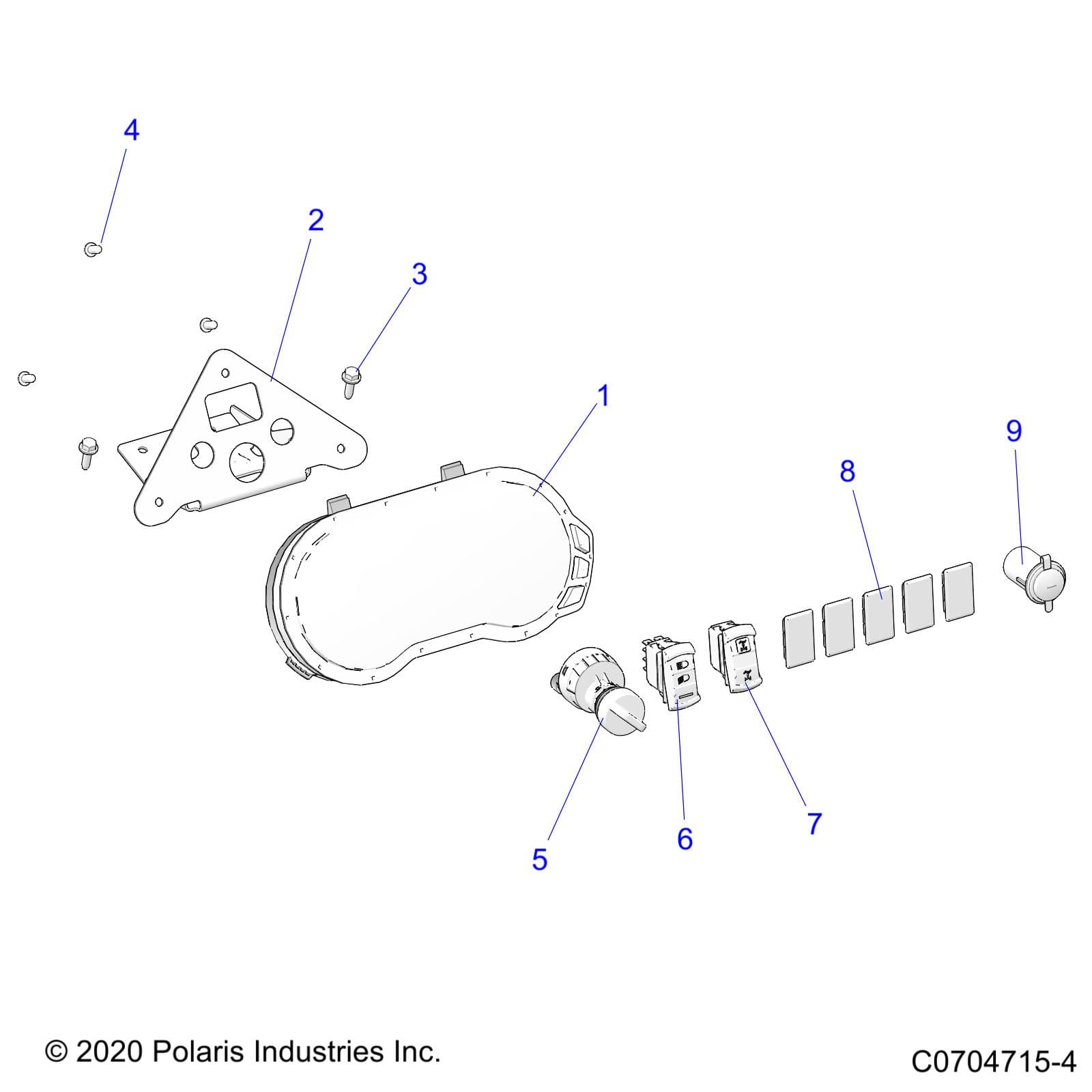

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS - Z26ASF99A6 (C0704715-4)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243412
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3286956 | ASM-C4,RZR,250K,NAS | 1 | $529.99 | In stock | |
| 2 | 5270643-329 | BRKT-C4 GAUGE MOUNT,ECOAT | 1 | $49.99 | In stock | |
| 3 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 4 | 7519063 | SCREW-TXBH-M6X1.0X12 8.8 ZPB D20 | 3 | Price TBD | Out of stock | |
| 5 | 4016135 | SWITCH-KEY,4 POSITION,SEALED [TO 1.6.2026] | 1 | Price TBD | Out of stock | |
| 5 | 4083545 | SWITCH-KEY,4 POSITION,SEALED [FROM 1.6.2026] | 1 | $59.99 | In stock | |
| 6 | 4014069 | SWITCH, HEADLIGHT | 1 | $109.99 | In stock | |
| 7 | 4014673 | SWITCH, AWD | 1 | $69.99 | In stock | |
| 8 | 5453402 | COVER-SWITCH,RZT | 5 | $7.99 | In stock | |
| 9 | 4012393 | RECEPTACLE-POD MNT,12 VOLT | 1 | $44.99 | In stock |
