Polaris•Schematic assembly

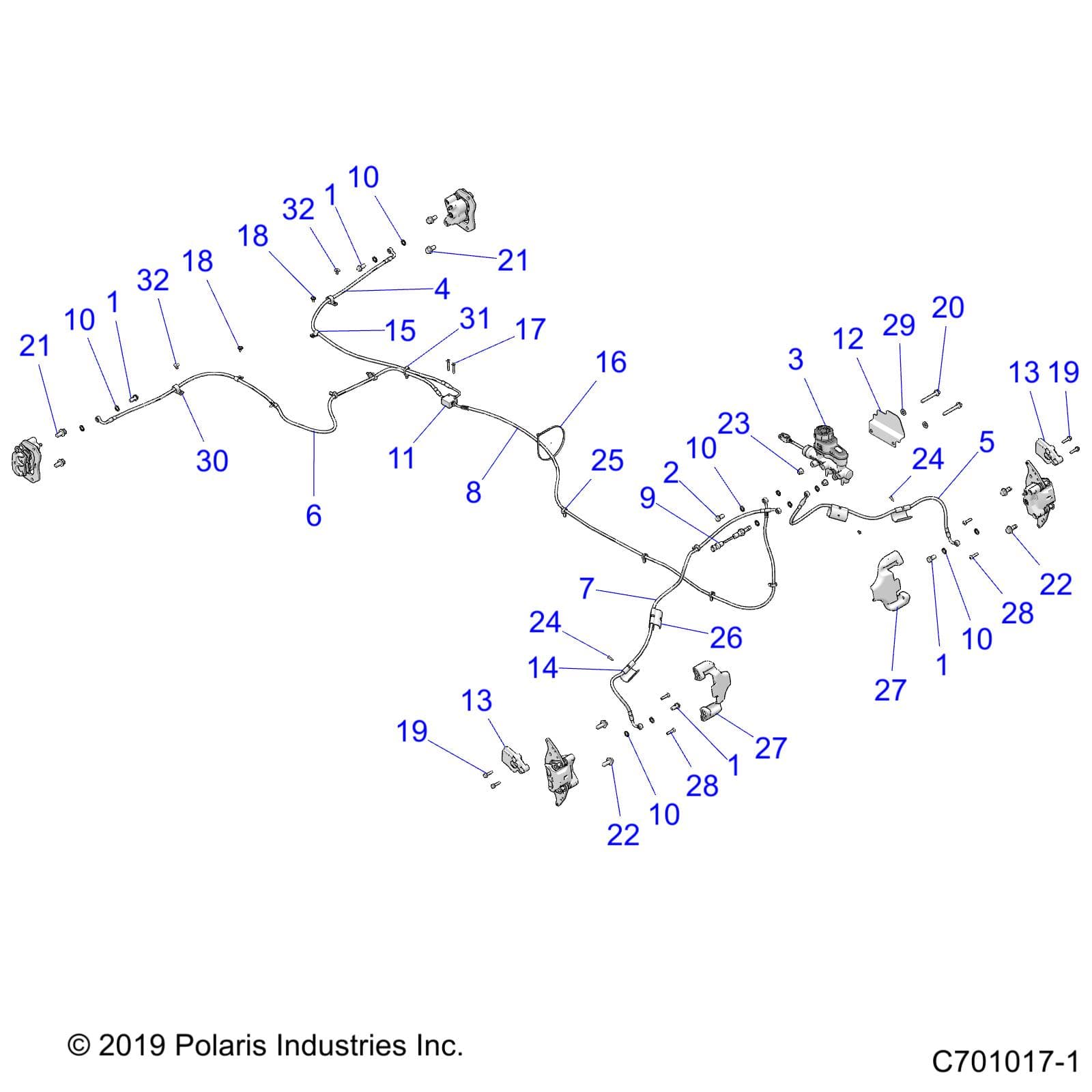

BRAKES, BRAKE LINES AND MASTER CYLINDER - Z26ASF99A6 (C701017-1)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR TRAIL S 1000 ULTIMATE Assembly ID: 243394
Vehicle Compatibility
- 2026 Polaris RZR TRAIL S 1000 ULTIMATE
Checkout Note
Please note that 18 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 4 | Price TBD | Out of stock | |
| 2 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 3 | 1914714 | ASM-TANDEM MASTER CYL,HB II | 1 | $164.99 | In stock | |
| 4 | 1912258 | LINE-BRK,RL,40.2,90B,90F,346�G | 1 | $79.99 | In stock | |
| 5 | 1912259 | LINE-BRK,FL,31.3,90SB,20B,180G | 1 | $79.99 | In stock | |
| 6 | 1912257 | LINE-BRK,RR,55.1",90B,20F,35�G | 1 | $94.99 | In stock | |
| 7 | 1912260 | LINE-BRK,FR,42.3,90SB,70B,330G | 1 | $94.99 | In stock | |
| 8 | 1912252 | LINE, BRAKE, MCT | 1 | $114.99 | In stock | |
| 9 | 4081264 | SWITCH-BRK,M10X1.25,DBL-BANJO | 1 | Price TBD | Out of stock | |
| 10 | 5413212 | SEAL-STAT-0-3/8, 70EP | 13 | Price TBD | Out of stock | |
| 11 | 7052293 | FITTING-TEE,BRAKE | 1 | Price TBD | Out of stock | |
| 12 | 5259049 | SHIELD, MASTER CYLINDER | 1 | $59.99 | In stock | |
| 13 | 5634051 | SCRAPER, BRAKE, FRONT | 2 | Price TBD | Out of stock | |
| 14 | 5451488 | CLIP, BRAKE LINE, OUTER | 2 | $6.99 | In stock | |
| 15 | 7080683 | CLAMP-HOSE,.312DIA,VINYL COAT | 4 | $2.99 | In stock | |
| 16 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | Price TBD | Out of stock | |
| 17 | 7512025 | SCR-10-24X1.25TFM PN TRX TRI-Y | 2 | Price TBD | Out of stock | |
| 18 | 7512084 | SCR-10-24X1/2, PHTXTRIRD, SEMS-Y | 4 | Price TBD | Out of stock | |
| 19 | 7516823 | SCR-M6X1.0X25-HX/FL-Y/D | 4 | Price TBD | Out of stock | |
| 20 | 7519298 | SCR-HXFL-M8X1.25X60 8.8 ZOD | 2 | Price TBD | Out of stock | |
| 21 | 7518558 | BOLT-M10X1.25X20,HXFLG-OLV D | 4 | Price TBD | Out of stock | |
| 22 | 7518760 | SCR-HXFL-M10X1.25X25 8.8 Z NY | 4 | Price TBD | Out of stock | |
| 23 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 24 | 7621323 | RIVET-POP 5/32(.251-.375)-ST-B | 4 | Price TBD | Out of stock | |
| 25 | 7670102 | CLIP-SILENCER BOX-C,98 INDY | 7 | Price TBD | Out of stock | |
| 26 | 5451487 | CLIP, BRAKE LINE, INNER | 2 | $3.99 | In stock | |
| 27 | 5451375-070 | SHIELD, CV, FRONT, BLACK | 2 | $44.99 | In stock | |
| 28 | 7519248 | SCR-TXPH-M6X1.0X25 8.8 ZC | 4 | $3.99 | In stock | |
| 29 | 7555954 | WSHR-.344X.750X.062-Y | 2 | $5.99 | In stock | |
| 30 | 7080880 | CLAMP-HOSE,.625 DIA VNL COATED | 2 | $6.99 | In stock | |
| 31 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 2 | Price TBD | Out of stock | |
| 32 | 7621472 | RIVET 3/16(.063-.250)ST-ST-LF-B | 2 | Price TBD | Out of stock |
