Polaris•Schematic assembly

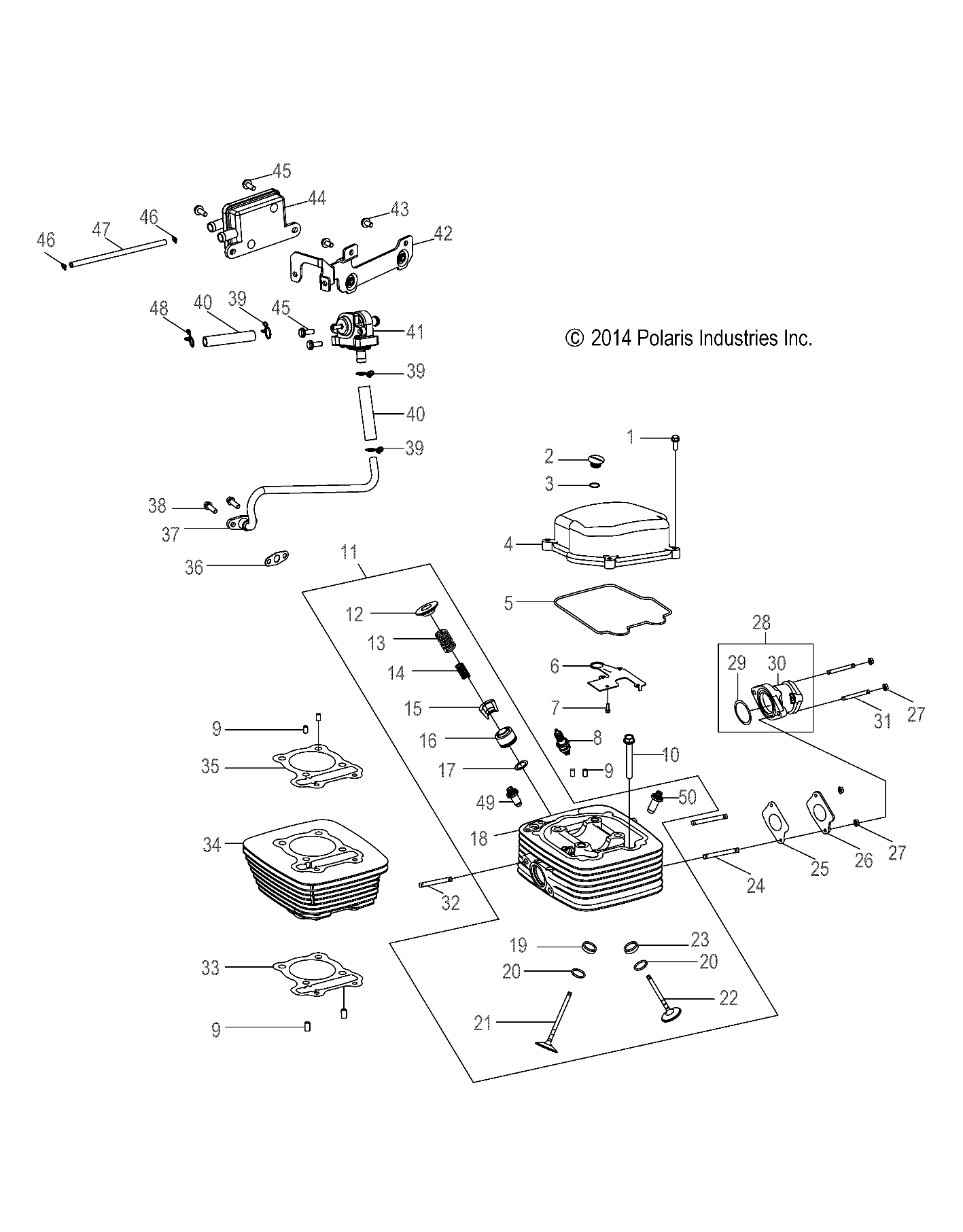

ENGINE, CYLINDER HEAD - A26YPA20A4 (49ATVCYLINDERHD15PHX)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 PHOENIX 200 R01 - A26YPA20A4 Assembly ID: 243301
Vehicle Compatibility
- 2026 Polaris PHOENIX 200 R01 - A26YPA20A4
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 0455393 | ASM-ENG,15 PHOENIX,W/O CARB | 1 | $2,399.99 | In stock | |
| 1 | 0452400 | BOLT, FLANGE | 4 | $4.99 | In stock | |
| 2 | 0452393 | CAP, HEAD COVER | 1 | $9.99 | In stock | |
| 3 | 0452394 | O-Ring, Head Cover Cap | 1 | $1.99 | In stock | |
| 4 | 0455350 | COVER-CYLINDER HEAD | 1 | $119.99 | In stock | |
| 5 | 0452392 | GASKET-CYL HEAD | 1 | $29.99 | In stock | |
| 6 | 0453751 | BREATHER, CRANKCASE, LOWER | 1 | $16.99 | In stock | |
| 7 | 0451766 | SCREW, TAPPING | 4 | $3.99 | In stock | |
| 8 | 3023835 | SPARK PLUG NGK CR7HSA | 1 | $10.99 | In stock | |
| 9 | 0450142 | PIN, DOWEL | 6 | $4.99 | In stock | |
| 10 | 0452401 | BOLT | 2 | $5.99 | In stock | |
| 11 | 0454847 | ASM., HEAD, CYLINDER, QUAD [INCL. 12-23,50] | 1 | $549.99 | In stock | |
| 12 | 0452387 | RETAINER, VALVE, SPRING | 2 | $29.99 | In stock | |
| 13 | 0452385 | SPRING, VALVE, OUTER | 2 | $10.99 | In stock | |
| 14 | 0452386 | SPRING, VALVE, INNER | 2 | $8.99 | In stock | |
| 15 | 0452389 | CLIP, RETAINER | 4 | $8.99 | In stock | |
| 16 | 0452390 | SEAL, VALVE | 2 | $10.99 | In stock | |
| 17 | 0452388 | WASHER, VALVE, SPRING, OUTER | 2 | $8.99 | In stock | |
| 18 | 0452844 | HEAD, CYLINDER, QUAD | 1 | $139.99 | In stock | |
| 19 | 0452378 | SEAT, INTAKE | 1 | $39.99 | In stock | |
| 20 | 0452382 | O-RING | 2 | $1.99 | In stock | |
| 21 | 0452383 | VALVE, INTAKE | 1 | $104.99 | In stock | |
| 22 | 0452384 | VALVE, EXHAUST | 1 | $84.99 | In stock | |
| 23 | 0452379 | SEAT, EXHAUST | 1 | $34.99 | In stock | |
| 24 | 0452399 | BOLT, STUD | 2 | $4.99 | In stock | |
| 25 | 0455492 | GASKET-MANIFOLD | 1 | $5.99 | In stock | |
| 26 | 0452404 | INSULATOR, MANIFOLD | 1 | $15.99 | In stock | |
| 27 | 0450880 | NUT, FLANGE, HEX | 4 | $4.99 | Out of stock Est. Jul 16, 2026 | |
| 28 | 0452311 | Asm., Manifold, Intake [INCL. 29,30] | 1 | $79.99 | In stock | |
| 29 | 0452397 | O-RING | 1 | $1.99 | In stock | |
| 30 | ------- | MANIFOLD | 1 | Price TBD | Out of stock | |
| 31 | 0452405 | BOLT, STUD | 2 | $4.99 | In stock | |
| 32 | 0452398 | BOLT, STUD | 2 | $4.99 | In stock | |
| 33 | 0455491 | GASKET-CYLINDER | 1 | $11.99 | In stock | |
| 34 | 0452375 | CYLINDER | 1 | $339.99 | In stock | |
| 35 | 0455351 | GASKET-CYLINDER | 1 | $69.99 | In stock | |
| 36 | 0455377 | GASKET-AIR INJECTION | 1 | $3.49 | In stock | |
| 37 | 0452807 | ASM., TUBE, AIR INJECTION | 1 | $54.99 | In stock | |
| 38 | 0452413 | BOLT, HEX, FLANGE | 2 | $4.99 | In stock | |
| 39 | 0452795 | Clip | 3 | $4.99 | In stock | |
| 40 | 0455073 | HOSE, RUBBER | 2 | $6.99 | In stock | |
| 41 | 0452810 | VALVE, INTAKE, DUAL | 1 | $159.99 | In stock | |
| 42 | 0452812 | BRACKET, AIR, INTAKE | 1 | $49.99 | In stock | |
| 43 | 0454785 | BOLT, W/LOCTITE | 2 | $4.99 | In stock | |
| 44 | 0452811 | ASM., VALVE, AIR INTAKE | 1 | $84.99 | In stock | |
| 45 | 0454011 | BOLT, HEX WASHER | 4 | $4.99 | In stock | |
| 46 | 0452814 | CLIP, HOSE, VACUUM | 2 | $4.99 | In stock | |
| 47 | 0455525 | HOSE-VACUUM,ENGINE | 1 | $5.99 | In stock | |
| 48 | 0453516 | CLIP, OIL SEPARATOR | 1 | $4.99 | In stock | |
| 49 | 0452380 | GUIDE, VALVE INTAKE | 1 | $34.99 | In stock | |
| 50 | 0452381 | GUIDE, VALVE EXHAUST | 1 | $34.99 | In stock |
