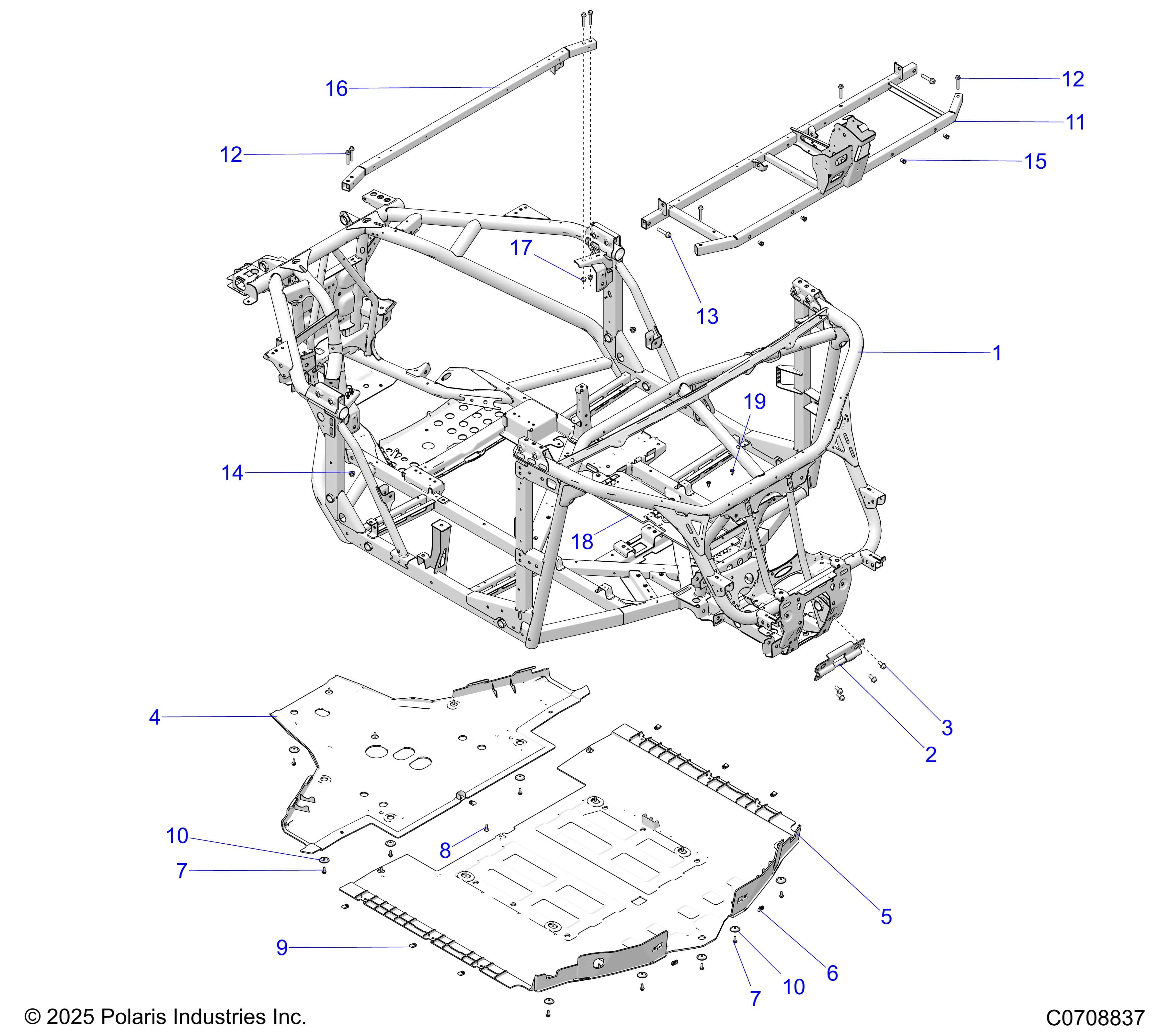

2026 POLARIS XPEDITION ADV NORTHSTAR — CHASSIS, MAIN FRAME AND SKID PLATES diagram

Schematic diagram

Polaris•Schematic assembly

CHASSIS, MAIN FRAME AND SKID PLATES

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 243057

Vehicle Compatibility

  • 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR

Checkout Note

Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
12212035K-FRAME,MAIN,FRAME,XPED1$4,499.99
In stock
21025545-458WELD-COVER,TOW,BLK1$49.99
In stock
37521333-20SCR-HXFL-M10X1.5X20 10.9 ZFB4Price TBD
Out of stock
45456840-070PLATE-SKID,REAR,BLK1$209.99
In stock
55466822-070PLATE-SKID,FRONT,BLK1$399.99
In stock
67081305CLIP-U SPEED NUT2Price TBD
Out of stock
77518529SCR-M6X1.0X20,HXHD,FLG,TDFM,BK18Price TBD
Out of stock
87519650SCR-TXTH-M6X1.0X25 ZFB1Price TBD
Out of stock
97547674NUT-M6-1.0, U-TYPE (2.5-3.8)7Price TBD
Out of stock
107556065WASHER-SKID PLATE18Price TBD
Out of stock
111029768-329WELD-SEAT BASE,FRONT,ECOAT1$314.99
In stock
127521332-50SCR-HXFL-M8X1.25X50 10.9 ZFB7Price TBD
Out of stock
137521333-50SCR-HXFL-M10X1.5X50 10.9 ZFB2$3.99
In stock
147548029NUT-HXFL-M10X1.5 8 ZTB NYL2Price TBD
Out of stock
157548098NUT-RIVNUT,HEX,M8X1.254$3.99
In stock
161027561-329WELD-TUBE,CLOSEOFF,2P,ECOAT1$119.99
In stock
177548028NUT-HXFL-M8X1.25 8 ZTB NYL4Price TBD
Out of stock
185457276-070TRAY-ROUTING,LH,BLK1$39.99
In stock
197661855RIVET-TUFLOK,.315-.325X.7870Price TBD
Out of stock
