Polaris•Schematic assembly

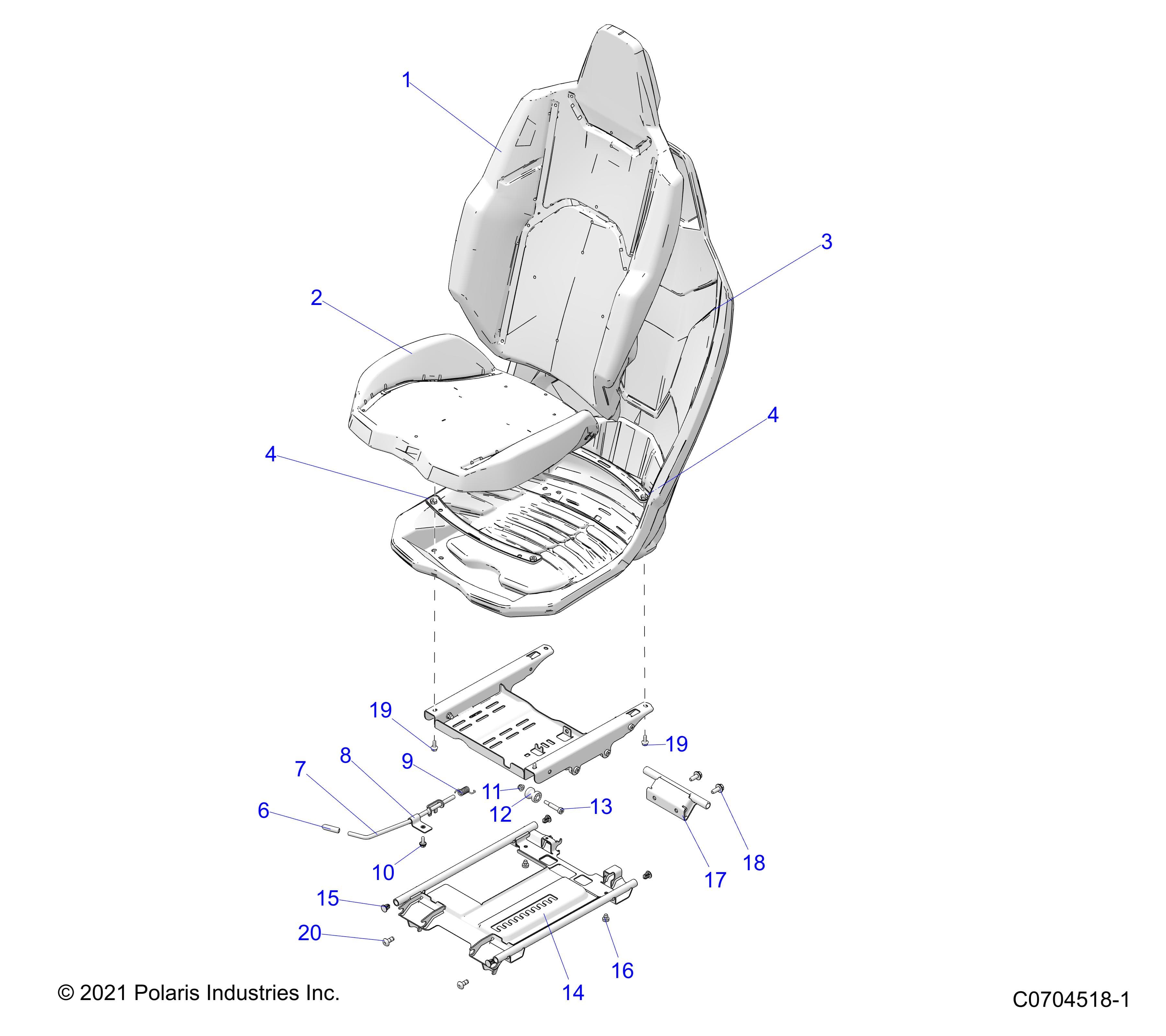

BODY, SEAT ASM., DRIVER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 243028
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 21 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2693654 | COVER-SEAT,BACK,I-RED,GR ST [COVER ONLY] [AS] [BS] | 2 | $74.99 | Out of stock Est. Dec 11, 2026 | |
| 1 | 2693425 | COVER-SEAT,BACK,TTM,GR ST [COVER ONLY] [AJ] [BJ] [AH] [BH] | 2 | $74.99 | In stock | |
| 1 | 5814977 | BUN-SEAT,BACK | 2 | Price TBD | Out of stock | |
| 2 | 2693655 | COVER-SEAT,BOTTOM,I-RED,GR ST [COVER ONLY] [AS] [BS] | 2 | $34.99 | Out of stock Est. Dec 11, 2026 | |
| 2 | 2693426 | COVER-SEAT,BOTTOM,TTM,GR ST [COVER ONLY] [AJ] [BJ] [AH] [BH] | 2 | $144.99 | In stock | |
| 2 | 5814978 | BUN-SEAT,BOTTOM | 1 | Price TBD | Out of stock | |
| 3 | 5459426 | SEAT-SHELL | 1 | Price TBD | Out of stock | |
| 4 | 1027788 | ASM-SEAT SUPPORT | 1 | Price TBD | Out of stock | |
| 6 | 5457972 | CAP-LEVER | 1 | Price TBD | Out of stock | |
| 7 | 1025338-329 | WELD-SEAT SLIDER ROD,ECOAT | 1 | Price TBD | Out of stock | |
| 8 | 5268611-329 | BRKT-P-CLIP,SEAT SLIDER,ECOAT | 1 | Price TBD | Out of stock | |
| 9 | 7045595 | SPRING-SEAT ADJUSTER | 1 | Price TBD | Out of stock | |
| 10 | 7521354 | SCR-M6X1X16 TR/TX,TRI-LOB | 1 | Price TBD | Out of stock | |
| 11 | 7548043 | NUT-HXFL-M6X1.0 8 ZB3 NYL | 8 | Price TBD | Out of stock | |
| 12 | 5456629 | ROLLER-SEAT SLIDER | 8 | Price TBD | Out of stock | |
| 13 | 7521353 | SCR-SHS-M6X1.0-M8X30 | 8 | Price TBD | Out of stock | |
| 14 | 2638872 | ASM-SEAT BASE,MAIN [INCLUDES 14-16] | 1 | Price TBD | Out of stock | |
| 14 | 1027664-458 | WELD-SEAT BASE,BLK | 1 | Price TBD | Out of stock | |
| 15 | 5457971 | PLUG-PLASTIC | 2 | Price TBD | Out of stock | |
| 16 | 5417657 | BUMPER-RUBBER | 4 | Price TBD | Out of stock | |
| 17 | 1026960-458 | WELD-REAR MOUNT,SEAT,BLK | 1 | $49.99 | In stock | |
| 18 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | Price TBD | Out of stock | |
| 19 | 7521331-16 | SCR-HXFL-M6X1.0X16 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 20 | 7519997 | SCR-TXTH-M8X1.25X20 8.8 ZB3 P3 | 4 | Price TBD | Out of stock |
