Polaris•Schematic assembly

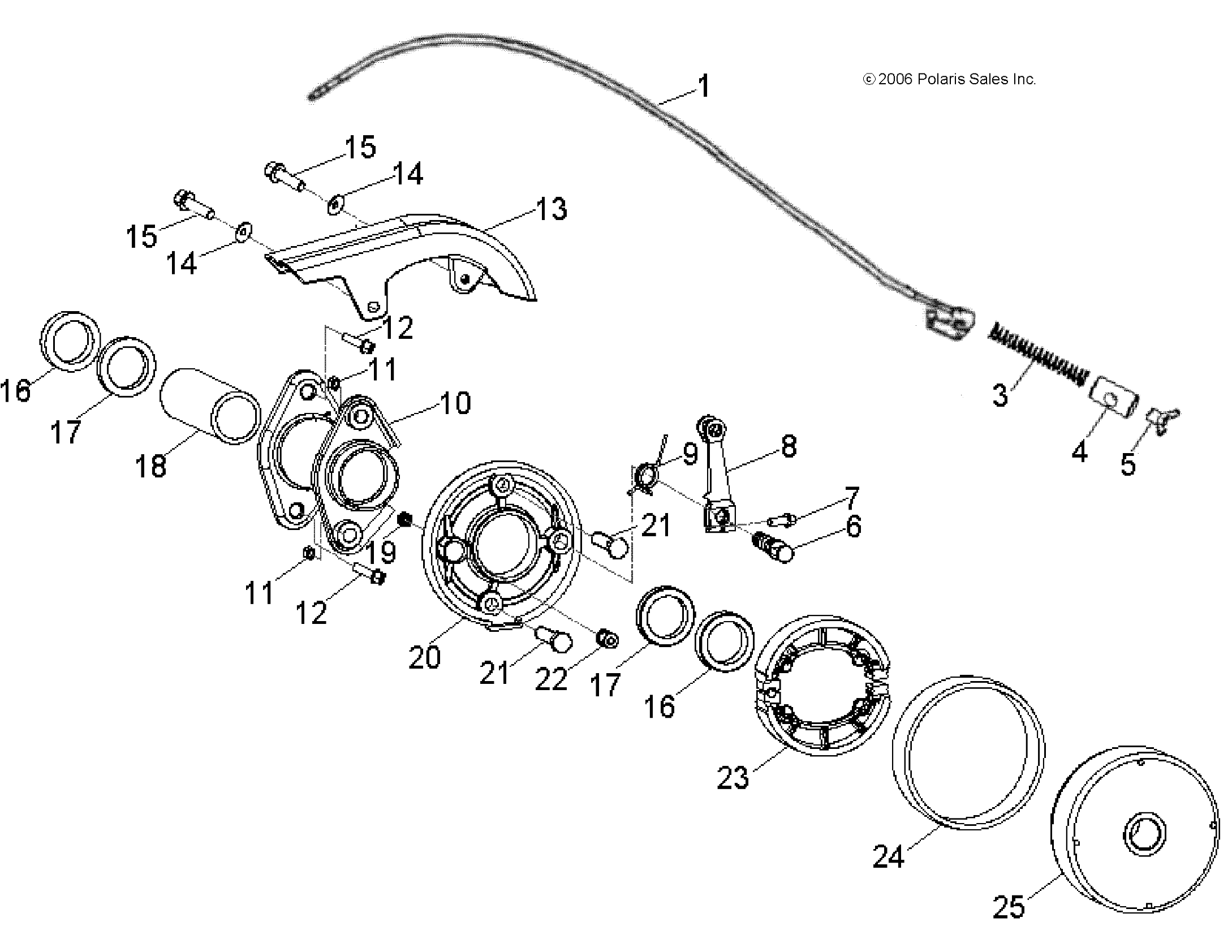

BRAKES, REAR - A26YKA11B1/B7 (49ATVBRAKERR08OUT90)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 OUTLAW 110 R02 - A26YKA11B1/B7 Assembly ID: 242824
Vehicle Compatibility
- 2026 Polaris OUTLAW 110 R02 - A26YKA11B1/B7
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0454015 | CABLE, BRAKE, REAR | 1 | $59.99 | In stock | |
| 3 | 0450435 | Spring, Cable, Rear Brake | 1 | $5.99 | In stock | |
| 4 | 0453094 | SPACER, BRAKE CABLE, REAR | 1 | $4.99 | In stock | |
| 5 | 0451079 | NUT, ADJUST, BRAKE | 1 | $6.99 | In stock | |
| 6 | 0450431 | Shaft, Cam, Rear Brake | 1 | $39.99 | In stock | |
| 7 | 0450433 | Bolt, Hex | 1 | $4.99 | Out of stock Est. Nov 23, 2026 | |
| 8 | 0454033 | ARM, BRAKE, REAR | 1 | $34.99 | In stock | |
| 9 | 0450453 | Spring, Arm, Rear Brake | 1 | $5.99 | In stock | |
| 10 | 0451683-385 | HOUSING, AXLE, REAR, SILVER [B1] | 1 | $131.49 | In stock | |
| 10 | 0451683-067 | HOUSING, AXLE, REAR, BLACK [B7] | 1 | $110.49 | In stock | |
| 11 | 0453706 | NUT, HEX, FLANGE | 2 | $5.99 | In stock | |
| 12 | 0453707 | BOLT | 2 | $3.99 | In stock | |
| 13 | 0454264 | COVER, SPROCKET, REAR | 1 | $69.99 | In stock | |
| 14 | 0452198 | WASHER, FLAT | 2 | $3.99 | In stock | |
| 15 | 0452030 | Bolt, Hex, Washer Face | 2 | $5.99 | In stock | |
| 16 | 0450430 | Seal, Oil | 2 | $19.99 | In stock | |
| 17 | 0454032 | BEARING | 2 | $54.99 | In stock | |
| 18 | 0450428 | Tube, Spacer | 1 | $49.99 | In stock | |
| 19 | 0450881 | Nut, Lock | 1 | $5.99 | In stock | |
| 20 | 0450440 | PLATE, BRAKE, REAR | 1 | $79.99 | In stock | |
| 21 | 0450452 | Bolt, Hex | 2 | $8.99 | In stock | |
| 22 | 0450854 | SHAFT, FIXED, BRAKE, REAR | 1 | $17.99 | In stock | |
| 23 | 0455441 | PAD-BRAKE RR | 1 | $34.99 | In stock | |
| 24 | 0450442 | Rubber, Protective | 1 | $11.99 | In stock | |
| 25 | 0450441 | DRUM, BRAKE, REAR | 1 | Price TBD | Out of stock |
