Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS-CHASSIS
Product Description

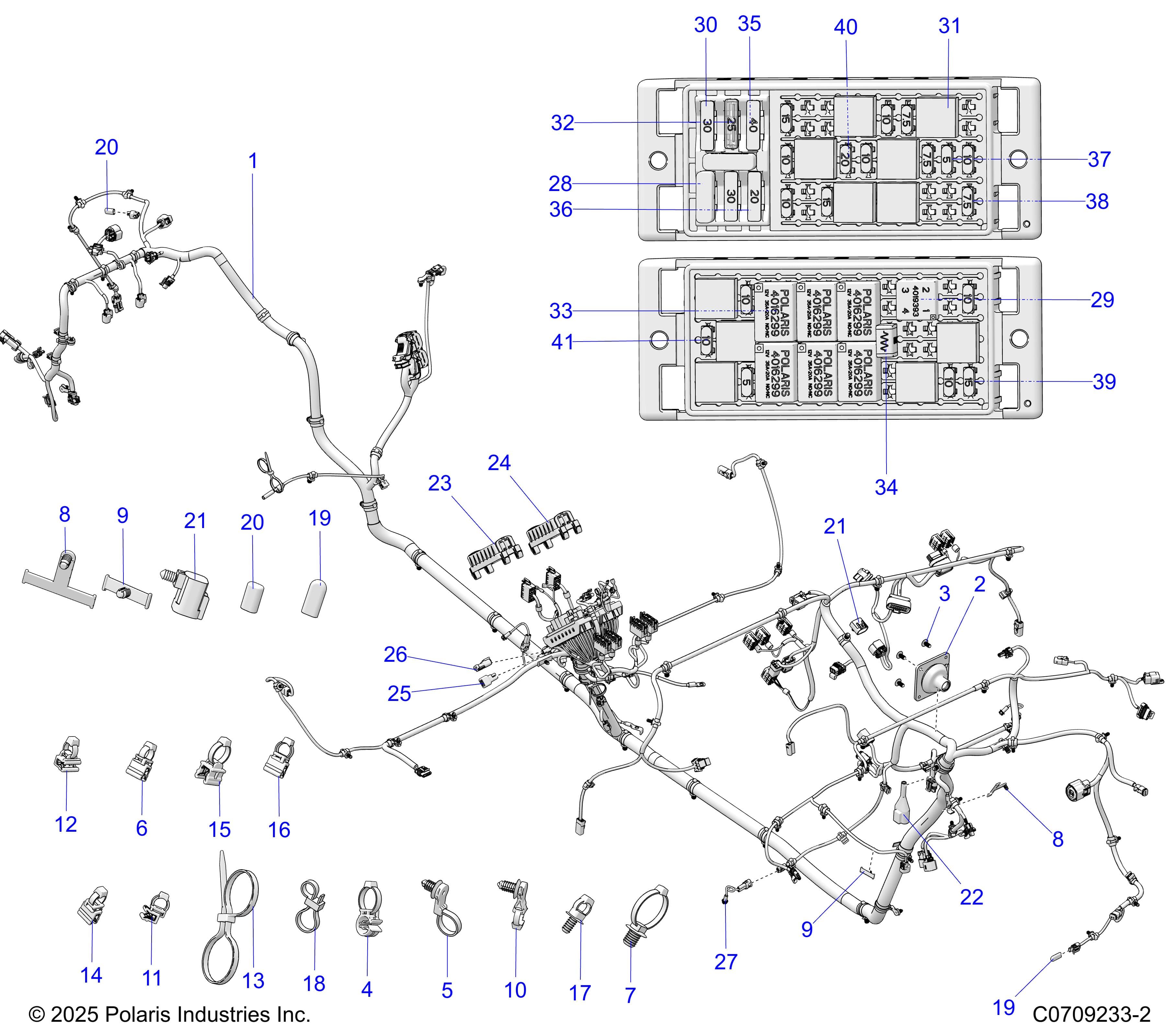

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 242767
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 32 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2417878 | HARN-CHASSIS,5P,HVAC [INCLUDES ALL] | 1 | $2,799.99 | In stock | |
| 2 | 5814560 | GROMMET - 65MM, W/FLANGE, BLK [INCLUDES 3] | 1 | Price TBD | Out of stock | |
| 3 | 7670090 | CLIP-FIR TREE,DART,6.35MM | 4 | Price TBD | Out of stock | |
| 4 | 7082744 | CLIP-OMEGA,CABLE,4-10MM DIA | 3 | Price TBD | Out of stock | |
| 5 | 7082458 | CLIP OFFSET 12.5MM FIRTREE(BK) | 5 | Price TBD | Out of stock | |
| 6 | 7082427 | CLIP- EDGE, 1-3MM THICKNESS | 2 | Price TBD | Out of stock | |
| 7 | 7082414 | CLIP-FIR TREE,9.7-10.0MM HOLE | 21 | Price TBD | Out of stock | |
| 8 | 7082412 | CLIP-XMAS, 31MM OFFSET, TAPE-ON | 1 | Price TBD | Out of stock | |
| 9 | 7082411 | CLIP-XMAS,6.35MM HOLE,TAPE-ON | 2 | Price TBD | Out of stock | |
| 10 | 7082406 | CLIP-FIR TREE,12.5MM OFF,90DEG | 1 | Price TBD | Out of stock | |
| 11 | 7082403 | CLIP-EDGE, 1-3mm THICKNESS | 1 | Price TBD | Out of stock | |
| 12 | 7082401 | CLIP-EDGE,1-3MM THICKNESS | 1 | Price TBD | Out of stock | |
| 13 | 7081916 | CABLE-TIE,DIA6-38MM,DUAL-LOOP | 2 | Price TBD | Out of stock | |
| 14 | 7081890 | CLIP-EDGE,HARNESS | 2 | Price TBD | Out of stock | |
| 15 | 7081824 | CLIP-EDGE,DIA5-50MM,OUT-SER | 2 | Price TBD | Out of stock | |
| 16 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 5 | Price TBD | Out of stock | |
| 17 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 28 | Price TBD | Out of stock | |
| 18 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 19 | 5438230 | CAP - VINYL, 125X375, BLACK | 1 | Price TBD | Out of stock | |
| 20 | 4018066 | CAP EVAP CONNECTOR | 1 | Price TBD | Out of stock | |
| 21 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 22 | 4080238 | THROTTLE-CON BOOT | 1 | Price TBD | Out of stock | |
| 23 | 4080191 | COVER-PDM,HVAC,2 | 1 | $39.99 | In stock | |
| 24 | 4081886 | COVER-PDM,HVAC | 1 | $64.99 | In stock | |
| 25 | 4013200 | TVS, 30 VOLT | 1 | $104.99 | In stock | |
| 26 | 2415626 | DIODE-2 AMP | 1 | Price TBD | Out of stock | |
| 27 | 2416797 | LED-PANEL MNT,12V,BLUE | 5 | $74.99 | In stock | |
| 28 | 4080193 | BREAKER-CIRCUIT,T2,25A,ATO | 2 | $29.99 | Out of stock Est. Jul 24, 2026 | |
| 29 | 4019393 | SSR-4PIN | 1 | Price TBD | Out of stock | |
| 30 | 4017557 | FUSE-ATC 30 AMP | 2 | $49.99 | In stock | |
| 31 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 11 | Price TBD | Out of stock | |
| 32 | 4016618 | FUSE-ATC,25 AMP | 1 | $14.99 | Out of stock Est. Aug 13, 2026 | |
| 33 | 4016299 | RELAY-SPDT, 12V, 35A, SEALED, HFA | 6 | $49.99 | In stock | |
| 34 | 4081932 | RESISTOR-620 OHM, MINI | 1 | Price TBD | Out of stock | |
| 35 | 4013062 | RESISTOR, 68 OHM, MINI | 1 | $54.99 | In stock | |
| 36 | 4011683 | FUSE, 20 AMP | 1 | $11.99 | In stock | |
| 37 | 4011652 | FUSE-5A,MINI BLADE | 2 | Price TBD | Out of stock | |
| 38 | 4011068 | FUSE - 7.5, MINI BLADE (BROWN) | 3 | Price TBD | Out of stock | |
| 39 | 4010859 | FUSE-15AMP,MINI BLADE | 3 | Price TBD | Out of stock | |
| 40 | 2434017 | FUSE-PARK,20 AMP | 1 | Price TBD | Out of stock | |
| 41 | 2434016 | FUSE-IGNITION,10 AMP | 8 | Price TBD | Out of stock |
