Polaris•Schematic assembly

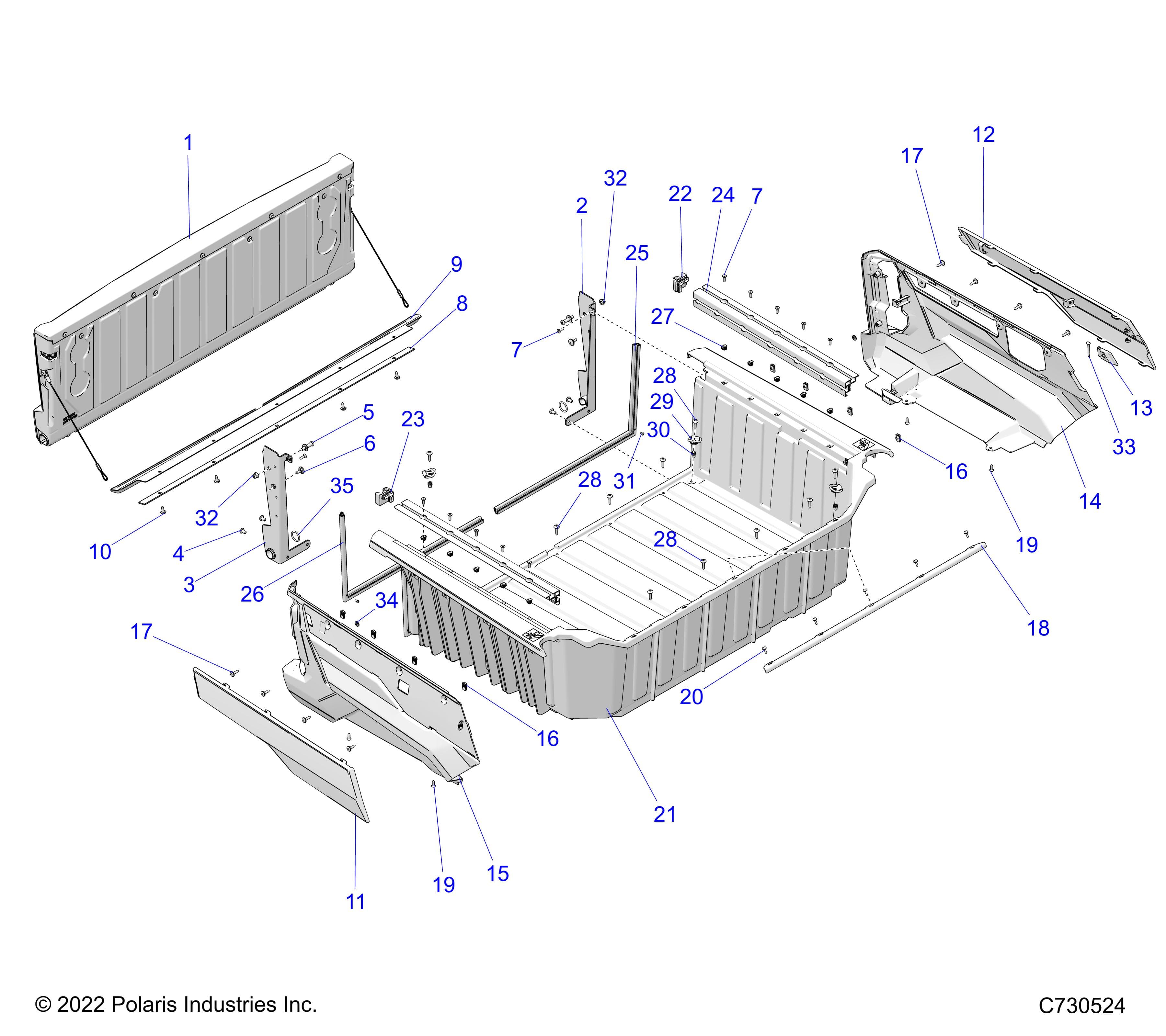

BODY, BOX ASSEMBLY, REAR
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION XP NORTHSTAR Assembly ID: 242751
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION XP NORTHSTAR
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | ------- | ASM-TAILGATE [SEE BODY - TAILGATE ASM.] | 1 | Price TBD | Out of stock | |
| 2 | 1028843-458 | WELD-TAILGATE SUPPORT,LH,BLK | 1 | $64.99 | In stock | |
| 3 | 1028844-458 | WELD-TAILGATE SUPPORT,RH,BLK | 1 | $64.99 | Out of stock Est. Aug 13, 2026 | |
| 4 | 7520311 | SCR-TXTH-M8X1.25X15 8.8 ZODP30 | 4 | $3.99 | In stock | |
| 5 | 7663084 | PIN-STRIKER,M8 | 2 | $9.99 | In stock | |
| 6 | 7520730 | SCR-TXTH-M6X1.0X20 ZPB SHDR | 2 | Price TBD | Out of stock | |
| 7 | 7528307 | SCR-M6X20MM,HXSOC FHCS,BG | 14 | $0.99 | In stock | |
| 8 | 5526506 | SEAL,DRIP-TRAY | 1 | $11.99 | In stock | |
| 9 | 5274724-458 | TRAY-DRIP,BLK | 1 | $119.99 | In stock | |
| 10 | 7518936 | SCR-M6X1X16 TR/TX-M | 5 | Price TBD | Out of stock | |
| 11 | 5465130-894 | PANEL-BOX,TRIM,RH,PNT,M.S.GRPH [AJ] [BJ] [SUPER GRAPHITE] | 1 | $184.99 | In stock | |
| 11 | 5465130-799 | PANEL-BOX,TRIM,RH,PNT,PER RED [AS] [BS] [PERFORMANCE RED] | 1 | $184.99 | In stock | |
| 11 | 5465130-A29 | PNL-BOX,TRM,RH,PNT,H.W.T.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $184.99 | Out of stock Est. Aug 6, 2026 | |
| 12 | 5465129-894 | PANEL-BOX,TRIM,LH,PNT,M.S.GRPH [AJ] [BJ] [SUPER GRAPHITE] | 1 | $184.99 | In stock | |
| 12 | 5465129-799 | PANEL-BOX,TRIM,LH,PNT,PER RED [AS] [BS] [PERFORMANCE RED] | 1 | $184.99 | In stock | |
| 12 | 5465129-A29 | PNL-BOX,TRM,LH,PNT,H.W.T.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $184.99 | Out of stock Est. Aug 31, 2026 | |
| 13 | 5457251-070 | PANEL-BOX,LATCH,LH,BLK | 1 | $8.99 | In stock | |
| 14 | 2639948-070 | ASM-PANEL,BOX,OUTER,LH,BLK | 1 | $204.99 | In stock | |
| 15 | 2639949-070 | ASM-PANEL,BOX,OUTER,RH,BLK | 1 | $204.99 | In stock | |
| 16 | 7081305 | CLIP-U SPEED NUT | 16 | Price TBD | Out of stock | |
| 17 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 8 | Price TBD | Out of stock | |
| 18 | 2639493 | ASM-SEAL,CARGO,BOX,WPER | 1 | $109.99 | In stock | |
| 19 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 4 | Price TBD | Out of stock | |
| 20 | 7518518 | SCREW-M4.2X1.40,12,HEX,BUTT,SHLD | 5 | Price TBD | Out of stock | |
| 21 | 2212029 | K-ASM,BOX,CARGO,XPED | 1 | $1,099.99 | In stock | |
| 22 | 5418788 | BUMPER-BOX,TAILGATE,LH | 1 | $5.99 | In stock | |
| 23 | 5418789 | BUMPER-BOX,TAILGATE,RH | 1 | $5.99 | In stock | |
| 24 | 5144443 | RAIL-BOX,MACH | 2 | $164.99 | In stock | |
| 25 | 5526501 | SEAL-TAILGATE,LH | 1 | $99.99 | In stock | |
| 26 | 5526502 | SEAL-TAILGATE,RH | 1 | $99.99 | In stock | |
| 27 | 7548058 | NUT-PAL NUT,M6 | 10 | $4.99 | In stock | |
| 28 | 7520748 | SCR-TXTH-M6X1.0X30 T40 ZPB | 14 | $4.99 | In stock | |
| 29 | 7081195 | RING,TIEDOWN 700087 | 4 | Price TBD | Out of stock | |
| 30 | 7547790 | NUT-RIVNUT,HEX,M6X1.00 | 14 | Price TBD | Out of stock | |
| 31 | 7518256 | SCR-#8-32X.375",TORX,TRI-S | 2 | $2.99 | In stock | |
| 32 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 33 | 5451236 | PIN-HINGE,DIN BOX | 1 | $8.99 | In stock | |
| 34 | 7557234 | WSHR-FLAT-M8X1.6 ZTB | 2 | Price TBD | Out of stock | |
| 35 | 5418014 | O-RING,28.17X3.53,VITON,60A | 2 | Price TBD | Out of stock |
