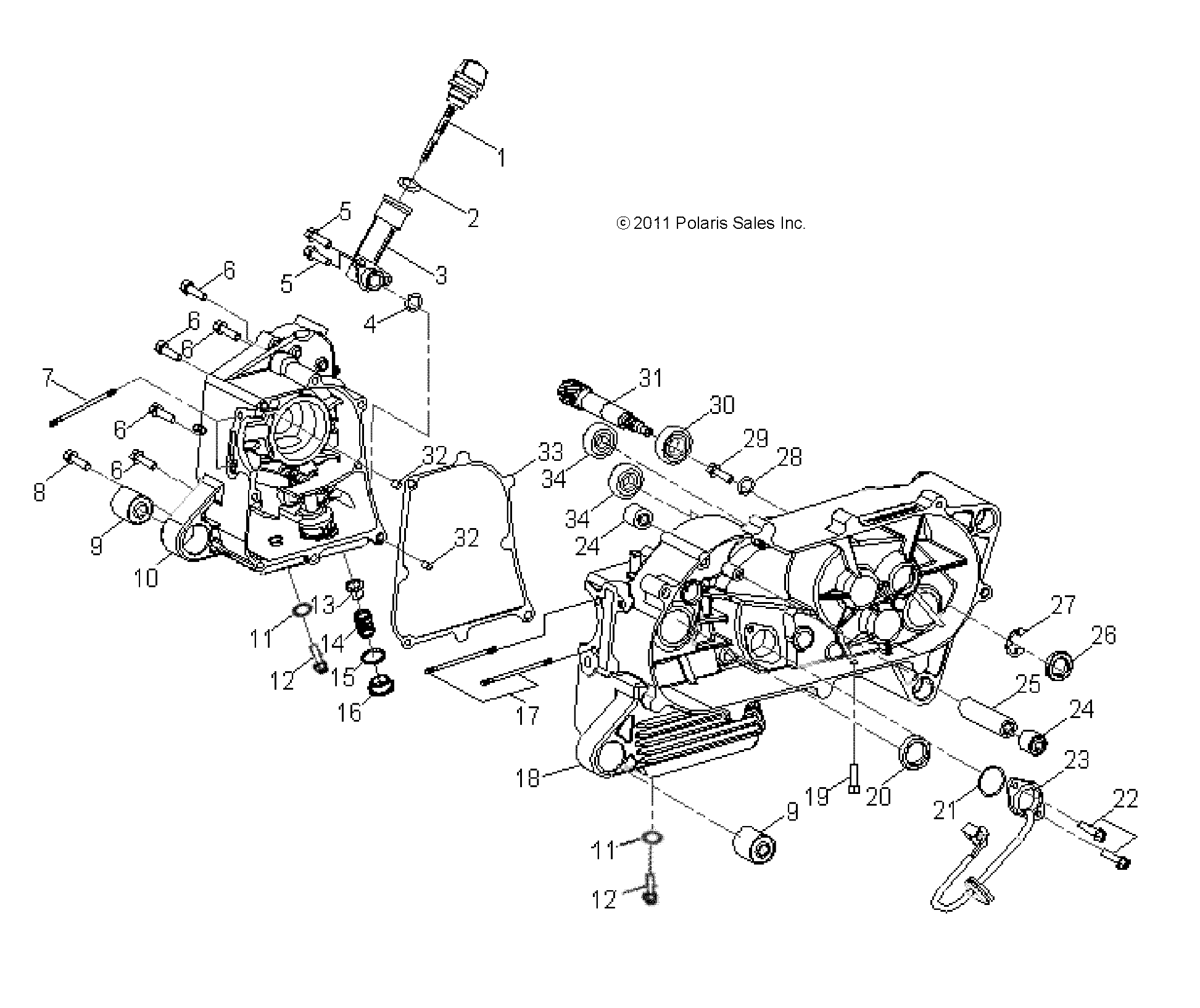

Polaris•Schematic assembly
ENGINE, CRANKCASE - A26YFA11B5 (49ATVCRANKCASE12SP90)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 110 R01 - A26YFA11B5 Assembly ID: 242540
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 110 R01 - A26YFA11B5
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 0455394 | ASM-ENGINE,110 | 1 | $2,399.99 | In stock | |
| 1 | 0453542 | DIPSTICK, OIL [INCL. 2] | 1 | $29.99 | In stock | |
| 2 | 0455117 | O-RING | 1 | $3.99 | In stock | |
| 3 | 0453611 | NECK, OIL FILLER | 1 | $69.99 | In stock | |
| 4 | 0453827 | O-RING | 1 | $2.49 | In stock | |
| 5 | 0453519 | Bolt | 2 | $4.99 | In stock | |
| 6 | 0453612 | BOLT | 5 | $4.99 | In stock | |
| 7 | 0453613 | STUD | 2 | $11.99 | In stock | |
| 8 | 0453614 | BOLT | 1 | $4.99 | In stock | |
| 9 | 0455172 | BUSHING, RUBBER | 2 | $15.99 | In stock | |
| 10 | 0455118 | CRANKCASE, RH, 110 | 1 | $239.99 | In stock | |
| 11 | 0452133 | WASHER, FLAT | 2 | $4.99 | In stock | |
| 12 | 0452132 | BOLT, DRAIN PLUG | 2 | $5.99 | In stock | |
| 13 | 0452369 | SCREEN, OIL | 1 | $16.99 | In stock | |
| 14 | 0452370 | SPRING, OIL SCREEN | 1 | $16.99 | In stock | |
| 15 | 0452371 | O-RING, DRAIN PLUG | 1 | $1.99 | In stock | |
| 16 | 0452368 | Plug, Drain, Oil | 1 | $34.99 | In stock | |
| 17 | 0453616 | STUD | 2 | $11.99 | In stock | |
| 18 | 0455120 | CRANKCASE, LH, 110 | 1 | $529.99 | In stock | |
| 19 | 0450325 | Bolt, Hex, Washer Face | 1 | Price TBD | Out of stock | |
| 20 | 0453522 | SEAL, OIL | 1 | $34.99 | In stock | |
| 21 | 0452129 | O-RING, GEAR POSITION SENSOR | 1 | $1.99 | In stock | |
| 22 | 0452138 | Bolt, Hex, Flange | 2 | $3.99 | In stock | |
| 23 | 0455508 | SENSOR, GEAR POSITION | 1 | $39.99 | In stock | |
| 24 | 0455173 | BUSHING, RUBBER | 2 | $10.99 | In stock | |
| 25 | 0453617 | SPACER, COLLAR | 1 | $15.99 | In stock | |
| 26 | 0450200 | Seal, Oil | 1 | $14.99 | In stock | |
| 27 | 0450198 | Circlip, External | 1 | $5.99 | In stock | |
| 28 | 0453460 | WASHER, FLAT | 1 | $5.99 | In stock | |
| 29 | 0450158 | Bolt, Socket, Hex | 1 | $6.99 | In stock | |
| 30 | 0450199 | BEARING | 1 | $39.99 | In stock | |
| 31 | 0453456 | SHAFT, DRIVE | 1 | $104.99 | In stock | |
| 32 | 0452342 | PIN, DOWEL | 2 | $4.99 | In stock | |
| 33 | 0455330 | GASKET-COVER,TRANSMISSION | 2 | Price TBD | Out of stock | |
| 34 | 0450254 | Bearing, Needle | 2 | $29.99 | In stock |
