Polaris•Schematic assembly

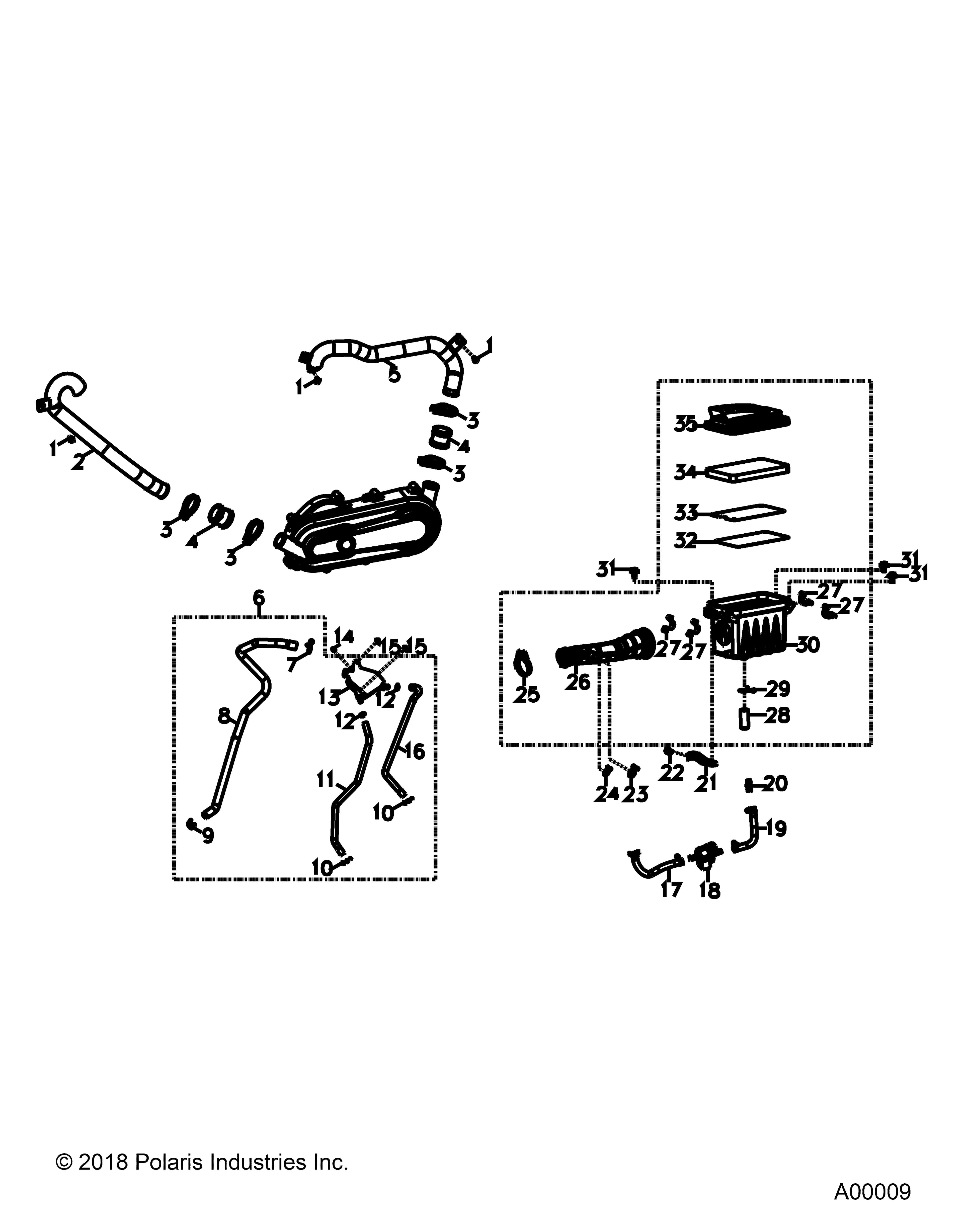

ENGINE, AIR INTAKE SYSTEM - A26YFA11B5 (A00009)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 SPORTSMAN 110 R01 - A26YFA11B5 Assembly ID: 242537
Vehicle Compatibility
- 2026 Polaris SPORTSMAN 110 R01 - A26YFA11B5
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 0450824 | Bolt, Hex, Washer Face | 3 | $2.99 | In stock | |
| 2 | 0453331 | BOLT, FLANGE | 1 | $79.99 | In stock | |
| 3 | 0453655 | CLAMP | 4 | $12.99 | In stock | |
| 4 | 0453656 | BOOT, DUCT | 2 | $11.99 | In stock | |
| 5 | 0453332 | DUCT, OUTLET | 1 | $79.99 | In stock | |
| 6 | ------- | ASM TUBES | 1 | Price TBD | Out of stock | |
| 7 | 0453187 | CLIP, RETAINING | 1 | Price TBD | Out of stock | |
| 8 | 0454008 | TUBE, BREATHER, VENTILATED | 1 | $54.99 | In stock | |
| 9 | 0452795 | Clip | 1 | $4.99 | In stock | |
| 10 | 0453516 | CLIP, OIL SEPARATOR | 2 | $4.99 | In stock | |
| 11 | 0454006 | Tube, Oil | 1 | $34.99 | In stock | |
| 12 | 0450865 | Asm., Fuel Line and Clip | 2 | $14.99 | In stock | |
| 13 | 0453184 | SEPARATOR, OIL | 1 | $84.99 | In stock | |
| 14 | 0450880 | NUT, FLANGE, HEX | 1 | $4.99 | Out of stock Est. Jul 16, 2026 | |
| 15 | 0452215 | BOLT, HEX | 2 | $4.99 | In stock | |
| 16 | 0454007 | TUBE, OIL | 1 | $17.99 | In stock | |
| 17 | 0455127 | HOSE, IAC | 1 | $14.99 | In stock | |
| 18 | 0455066 | VALVE, IDLE AIR CONTROLLER, IAC | 1 | $79.99 | In stock | |
| 19 | 0455128 | HOSE, IAC | 1 | $14.99 | In stock | |
| 20 | 0455064 | NIPPLE-INTAKE,DUCT | 1 | $7.99 | In stock | |
| 21 | 0453666 | BRACKET, MOUNT, AIR BOX | 1 | $34.99 | In stock | |
| 22 | 0453518 | BOLT | 1 | $4.99 | In stock | |
| 24 | 0455063 | CLIP | 1 | $5.99 | In stock | |
| 25 | 0453658 | CLAMP | 1 | $16.99 | In stock | |
| 26 | 0455129 | BOOT | 1 | $54.99 | In stock | |
| 27 | 0453660 | Clip, Air Box | 4 | Price TBD | Out of stock | |
| 28 | 0453725 | HOSE, DRAIN | 1 | $9.99 | In stock | |
| 29 | 0453661 | Clip | 1 | $5.99 | In stock | |
| 30 | 0453662 | BOX, AIR CLEANER | 1 | $54.99 | In stock | |
| 31 | 0452215 | BOLT, HEX | 3 | $4.99 | In stock | |
| 32 | 0453484 | Gasket, Cover, Air Box | 1 | $4.99 | In stock | |
| 33 | 0453663 | Filter, Air Cleaner | 1 | $11.99 | In stock | |
| 34 | 0454620 | Foam, Intake, Air Cleaner | 1 | $39.99 | In stock | |
| 35 | 0453665 | Cover, Air Cleaner | 1 | $49.99 | In stock |
