Schematic diagram
Polaris•Schematic assembly

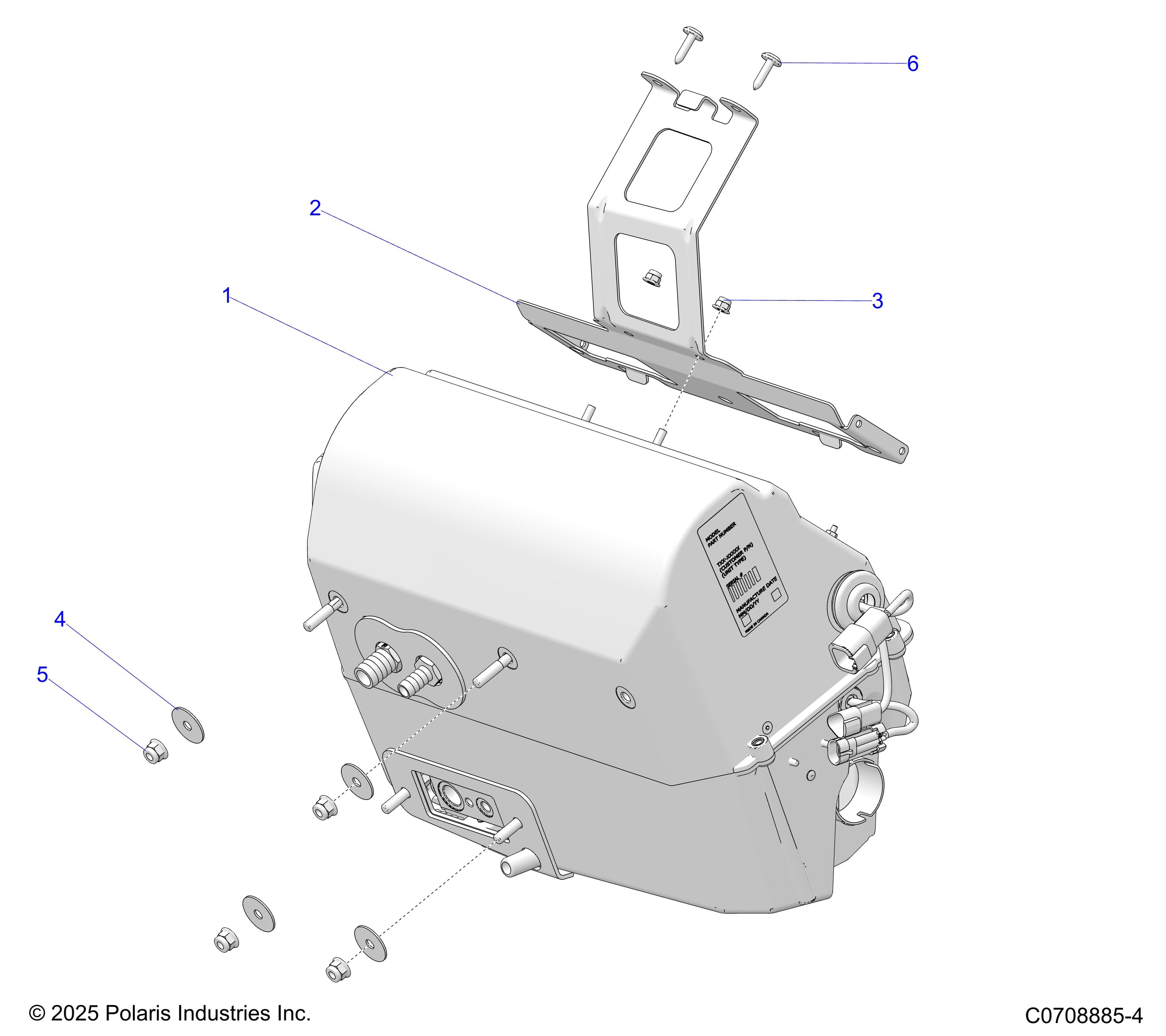

BODY, HVAC, MAIN MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241853
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2640427 | ASM-MAIN,HVAC,MP [FOR INTERNALs SEE BODY, HVAC MAIN] [TO 11/19/2025] | 1 | $2,669.99 | Out of stock Est. Sep 18, 2026 | |
| 1 | 2640735 | ASM-MAIN,HVAC,MP [FOR INTERNALs SEE BODY, HVAC MAIN] [FROM 11/19/2025 - 2/02/2026] | 1 | Price TBD | Out of stock | |
| 1 | 2640734 | ASM-MAIN,HVAC [FOR INTERNALs SEE BODY, HVAC MAIN] [FROM 2/02/2026] | 1 | $1,199.99 | Out of stock Est. Aug 11, 2026 | |
| 2 | 5269293-329 | BRACKET-MOUNT,HVAC MODULE,ECOT | 1 | $129.99 | In stock | |
| 3 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 4 | 7555716 | WASHER-.328X1.25X16GA, FL-Y | 4 | Price TBD | Out of stock | |
| 5 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 6 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock |
