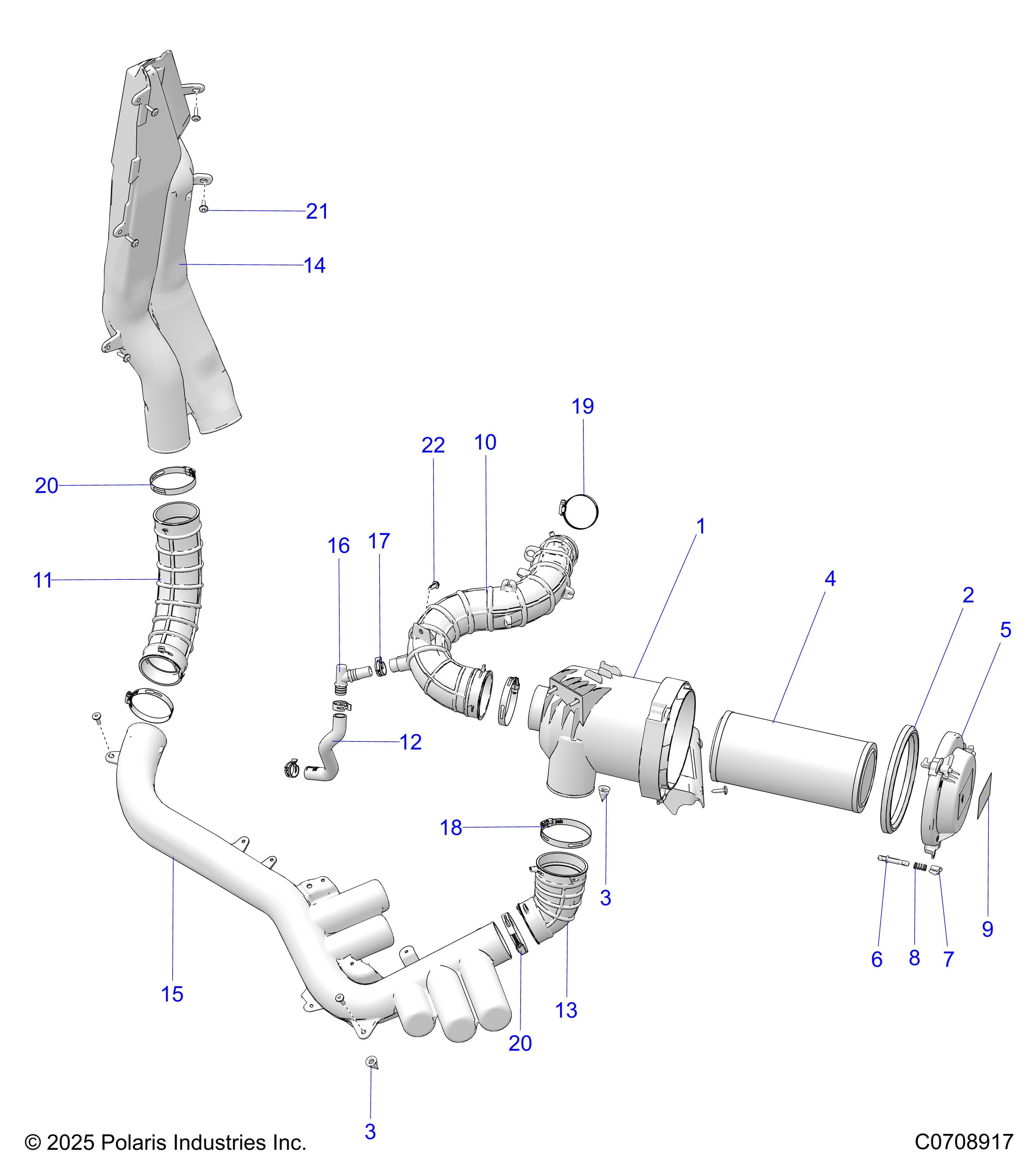

2026 POLARIS XPEDITION ADV 5 NORTHSTAR — ENGINE, AIR INTAKE diagram

Schematic diagram

Polaris•Schematic assembly

ENGINE, AIR INTAKE

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241832

Vehicle Compatibility

  • 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR

Checkout Note

Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
12637836ASM-AIRBOX [INCLUDES 1-9]1$224.99
In stock
15465631BASE-AIRBOX1$79.99
In stock
25814940SEAL-AIRBOX1$69.99
In stock
35414472PLUG-DRAIN2Price TBD
Out of stock
47083080FILTER-AIR1$44.99
In stock
51241428ASM-AIRBOX COVER [INCLUDES 6-9]1$124.99
In stock
65456270PIN-QUICK TURN3Price TBD
Out of stock
75456271LATCH-QUICK TURN3Price TBD
Out of stock
87045334SPRING-QUICK TURN3Price TBD
Out of stock
97182652DECAL-CAUT.AIR BOX1Price TBD
Out of stock
105417258HOSE-AIRBOX TO THROTTLE BODY1$114.99
In stock
115417259HOSE-PILLAR DUCT-DIRTY DUCT1$69.99
In stock
125419235HOSE-BREATHER1$15.99
Out of stock
135417520HOSE-AIRBOX TO CROSS DUCT1$59.99
In stock
145456745DUCT-SIDE INTAKE1$114.99
In stock
155457598DUCT-CROSS1$114.99
In stock
167055558FITTING-3/4 DOUBLE BARB1$4.99
In stock
177080841SPRINGBAND-CLAMP 27/12,GREEN3Price TBD
Out of stock
187081969CLAMP-HOSE SLOTTED,92-100 DIA2Price TBD
Out of stock
197082509CLAMP-HOSE SLOTTED,60-80 DIA1Price TBD
Out of stock
207082805CLAMP-HOSE SLOTTED,84-96 DIA3Price TBD
Out of stock
217519650SCR-TXTH-M6X1.0X25 ZFB11Price TBD
Out of stock
227661855RIVET-TUFLOK,.315-.325X.7871Price TBD
Out of stock
