Schematic diagram
Polaris•Schematic assembly
ENGINE, WATERPUMP AND BYPASS
Product Description

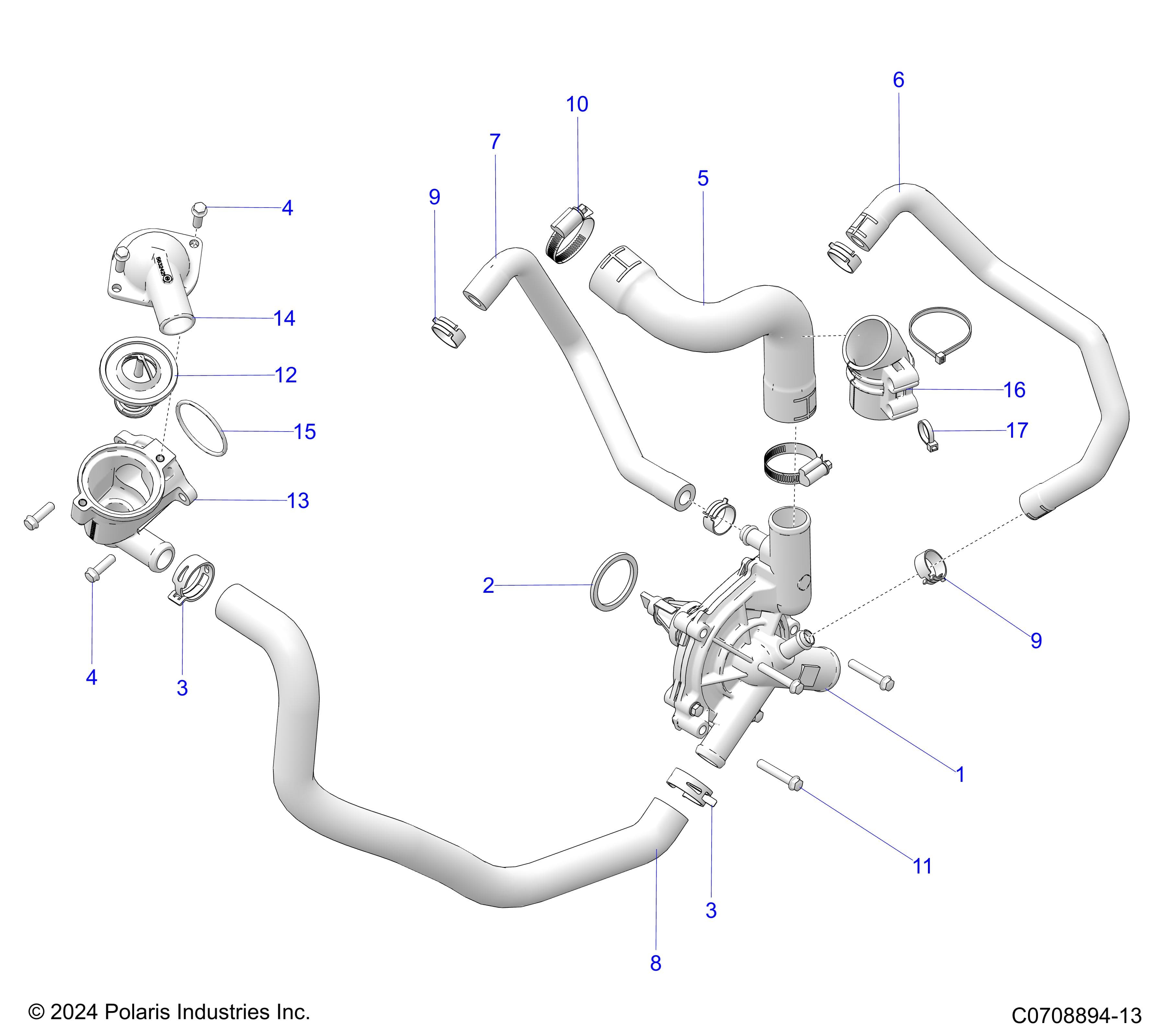

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241802
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 13 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023072 | ASM-WATERPUMP [FOR INTERNAL PARTS SEE ENGINE, WATERPUMP ASSEMBLY] | 1 | $244.99 | In stock | |
| 2 | 5814207 | FILTER-WP | 1 | Price TBD | Out of stock | |
| 3 | 7081970 | CLAMP, SPRINGBAND | 2 | Price TBD | Out of stock | |
| 4 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 4 | Price TBD | Out of stock | |
| 5 | 5415803 | HOSE-WATER PUMP OUT,FORMED | 1 | Price TBD | Out of stock | |
| 6 | 5417515 | HOSE-OIL COOLER OUT,HVAC | 1 | $44.99 | In stock | |
| 7 | 5416307 | HOSE, OIL COOLER IN | 1 | Price TBD | Out of stock | |
| 8 | 5416629 | HOSE, BYPASS | 1 | Price TBD | Out of stock | |
| 9 | 7081026 | CLAMP-HOSE,SPRING .81 | 4 | Price TBD | Out of stock | |
| 10 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | Price TBD | Out of stock | |
| 11 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 3 | Price TBD | Out of stock | |
| 12 | 7052600 | THERMOSTAT, DOUBLE, ACTING, 1MM | 1 | Price TBD | Out of stock | |
| 13 | 3023735 | ASM-THERMOSTAT HOUSING,HVAC | 1 | $34.99 | Out of stock Est. Aug 21, 2026 | |
| 14 | 5632421 | COVER, THERMOSTAT, CAST | 1 | Price TBD | Out of stock | |
| 15 | 5414591 | O-RING | 1 | Price TBD | Out of stock |
