Schematic diagram
Polaris•Schematic assembly

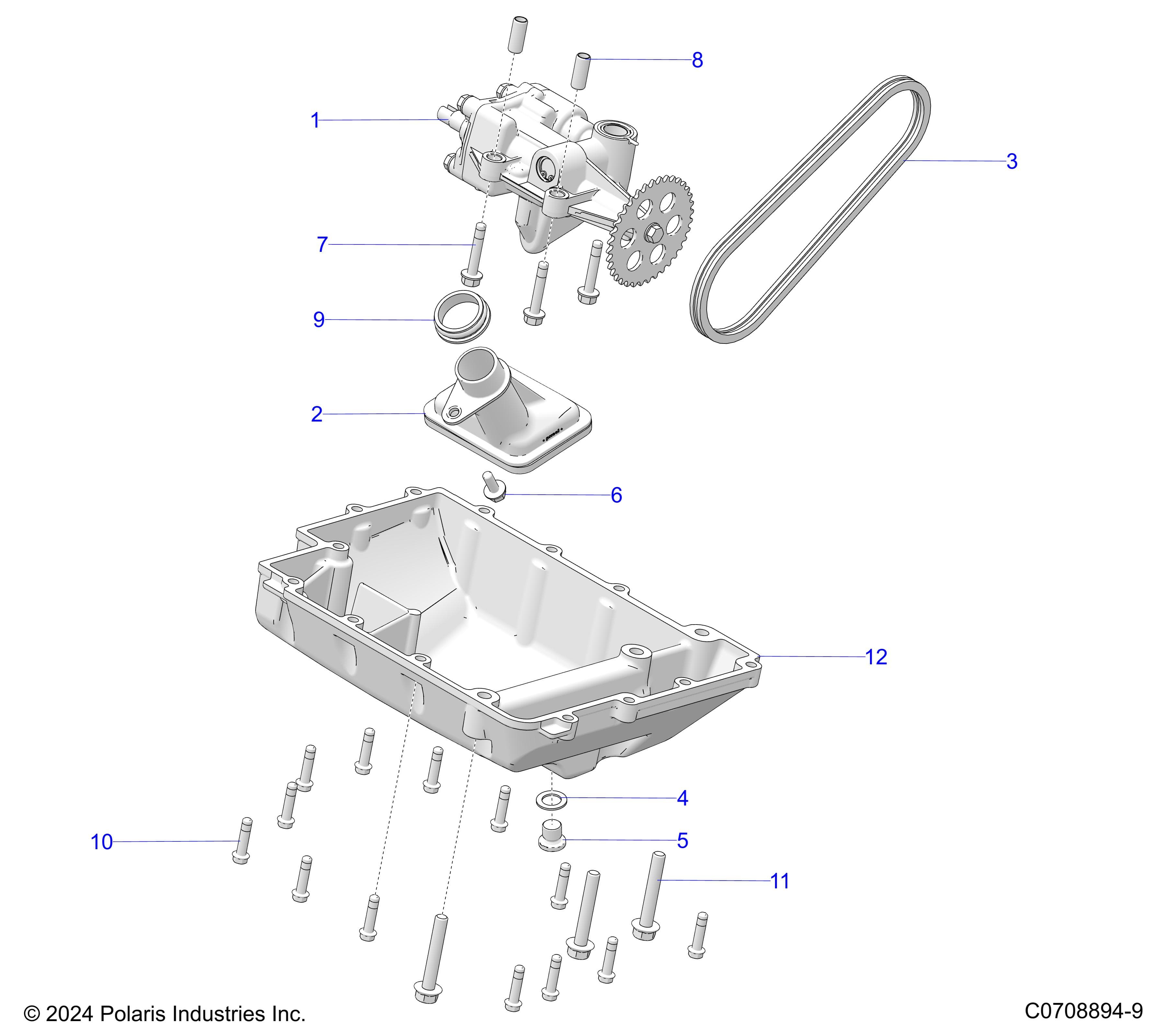

ENGINE, OIL PUMP
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241796
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023124 | PUMP, OIL [INCLUDES O-RING] | 1 | $254.99 | In stock | |
| 1 | 3610269 | O-RING,OIL PUMP | 1 | Price TBD | Out of stock | |
| 2 | 2521699 | PICKUP, OIL PUMP, WET SUMP | 1 | Price TBD | Out of stock | |
| 3 | 3225043 | CHAIN-OIL PUMP DRIVE,G-90 | 1 | Price TBD | Out of stock | |
| 4 | 5812232 | WASHER-19X12X1.3,COPPER | 1 | Price TBD | Out of stock | |
| 5 | 7052306 | PLUG-SOCKET,M12X1.5 DIN 908A | 1 | Price TBD | Out of stock | |
| 6 | 7519236 | SCR-HXFL-M6X1.0X16 8.8 ZYL NYL | 1 | Price TBD | Out of stock | |
| 7 | 7516827 | SCR-M6X1.0X35,HX/FL-Y/D | 3 | Price TBD | Out of stock | |
| 8 | 7661975 | DOWEL-HOLLOW,OIL PUMP | 2 | Price TBD | Out of stock | |
| 9 | 5415949 | SEAL-PICKUP | 1 | Price TBD | Out of stock | |
| 10 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 13 | Price TBD | Out of stock | |
| 11 | 7517793 | SCR-M8X1.25X50 HX/FL-Y | 3 | Price TBD | Out of stock | |
| 12 | 5143719 | COVER-SUMP,MACH | 1 | Price TBD | Out of stock |
