Schematic diagram
Polaris•Schematic assembly
ENGINE, DIPSTICK AND OIL FILTER
Product Description

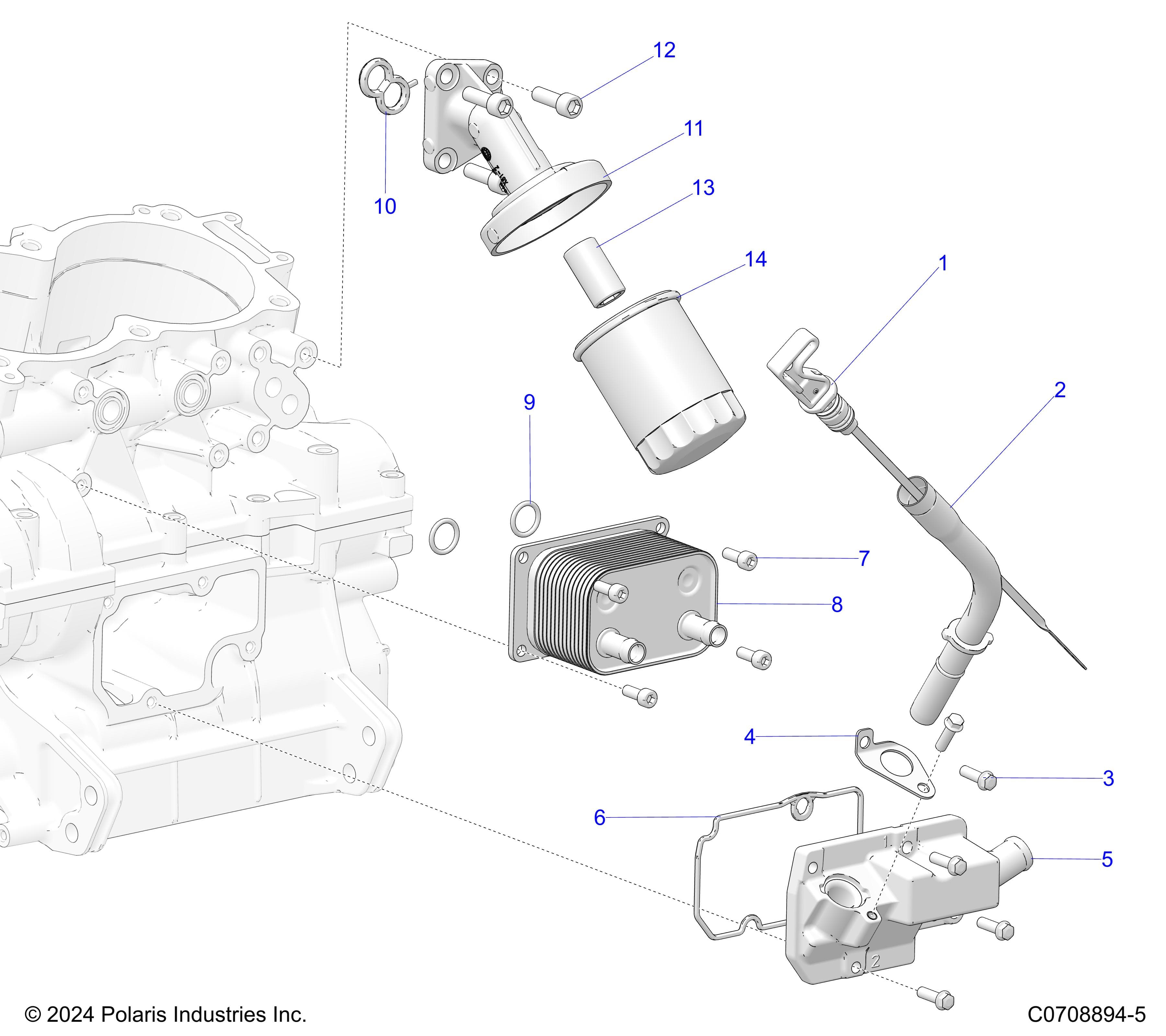

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241791
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3024377 | ASM-DIPSTICK | 1 | Price TBD | Out of stock | |
| 2 | 3023689 | ASM-OIL FILL TUBE [INCLUDES O-RING] | 1 | Price TBD | Out of stock | |
| 2 | 5414047 | O-RING, 12MMX2MM | 1 | Price TBD | Out of stock | |
| 3 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 5 | Price TBD | Out of stock | |
| 4 | 5255453 | BRACKET, TUBE, OIL FILL, LOWER | 1 | Price TBD | Out of stock | |
| 5 | 5145394 | COVER-BREATHER,MACH | 1 | Price TBD | Out of stock | |
| 6 | 5815811 | SEAL-COVER,BREATHER | 1 | Price TBD | Out of stock | |
| 7 | 7519303 | SCREW-SH-M6X1.0X16 8.8 ZPY D204 | 4 | Price TBD | Out of stock | |
| 8 | 1240820 | COOLER, OIL TO WATER, 7 | 1 | Price TBD | Out of stock | |
| 9 | 5413837 | O-RING,.612X.818X.103 | 2 | Price TBD | Out of stock | |
| 10 | 3610348 | SEAL-FILTER ADAPTER-3HOLE | 1 | Price TBD | Out of stock | |
| 11 | 5142156 | ADAPTER-OIL FILTER, MACH | 1 | Price TBD | Out of stock | |
| 12 | 7518142 | SCR-SH-M8X1.25X25 8.8 ZPC NYL | 3 | Price TBD | Out of stock | |
| 13 | 2521530 | ADAPTOR-FILTER,STRAIGHT | 1 | Price TBD | Out of stock | |
| 14 | 2540086 | FILTER-OIL (10 MICRON) | 1 | Price TBD | Out of stock |
