ENGINE, CYLINDER AND PISTON
Product Description

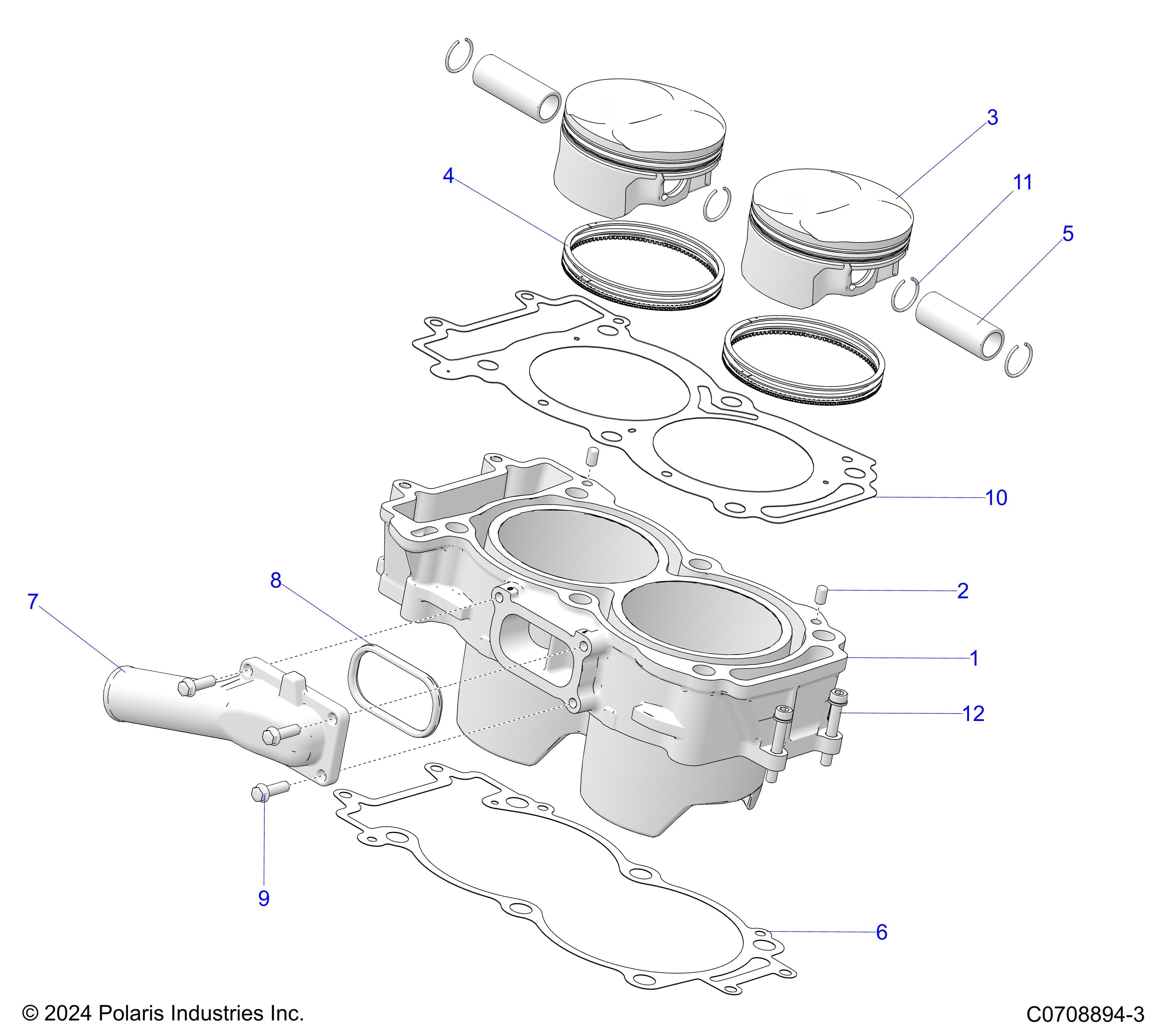

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241786
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 12 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3024167 | ASM-CYLINDER,999 [INCLUDES PIN, DOWELS] | 1 | Price TBD | Out of stock | |
| 2 | 5132835 | PIN-DOWEL,M6X10 | 2 | Price TBD | Out of stock | |
| 3 | 3024213 | ASM-PISTON [INCLUDES 4, 5, & 11] | 2 | Price TBD | Out of stock | |
| 4 | 2205245 | KIT-PISTON RINGS | 1 | Price TBD | Out of stock | |
| 5 | 3022358 | PIN-PISTON | 2 | Price TBD | Out of stock | |
| 6 | 5272850 | GASKET-BASE,2 CYL | 1 | Price TBD | Out of stock | |
| 7 | 5632557 | COVER-WATER INLET,CAST | 1 | Price TBD | Out of stock | |
| 8 | 5813736 | GASKET-WATER,INLET | 1 | Price TBD | Out of stock | |
| 9 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 3 | Price TBD | Out of stock | |
| 10 | 5814793 | GASKET-CYLINDER,HEAD | 1 | Price TBD | Out of stock | |
| 11 | 3022413 | RING-RTG,ROUND,20.0X1.6 | 4 | Price TBD | Out of stock | |
| 12 | 7528130 | SCR-SHFL-M6X1.0X40 10.9 ZY3 | 2 | Price TBD | Out of stock |
