Schematic diagram
Polaris•Schematic assembly
ENGINE, CRANKCASE AND CRANKSHAFT
Product Description

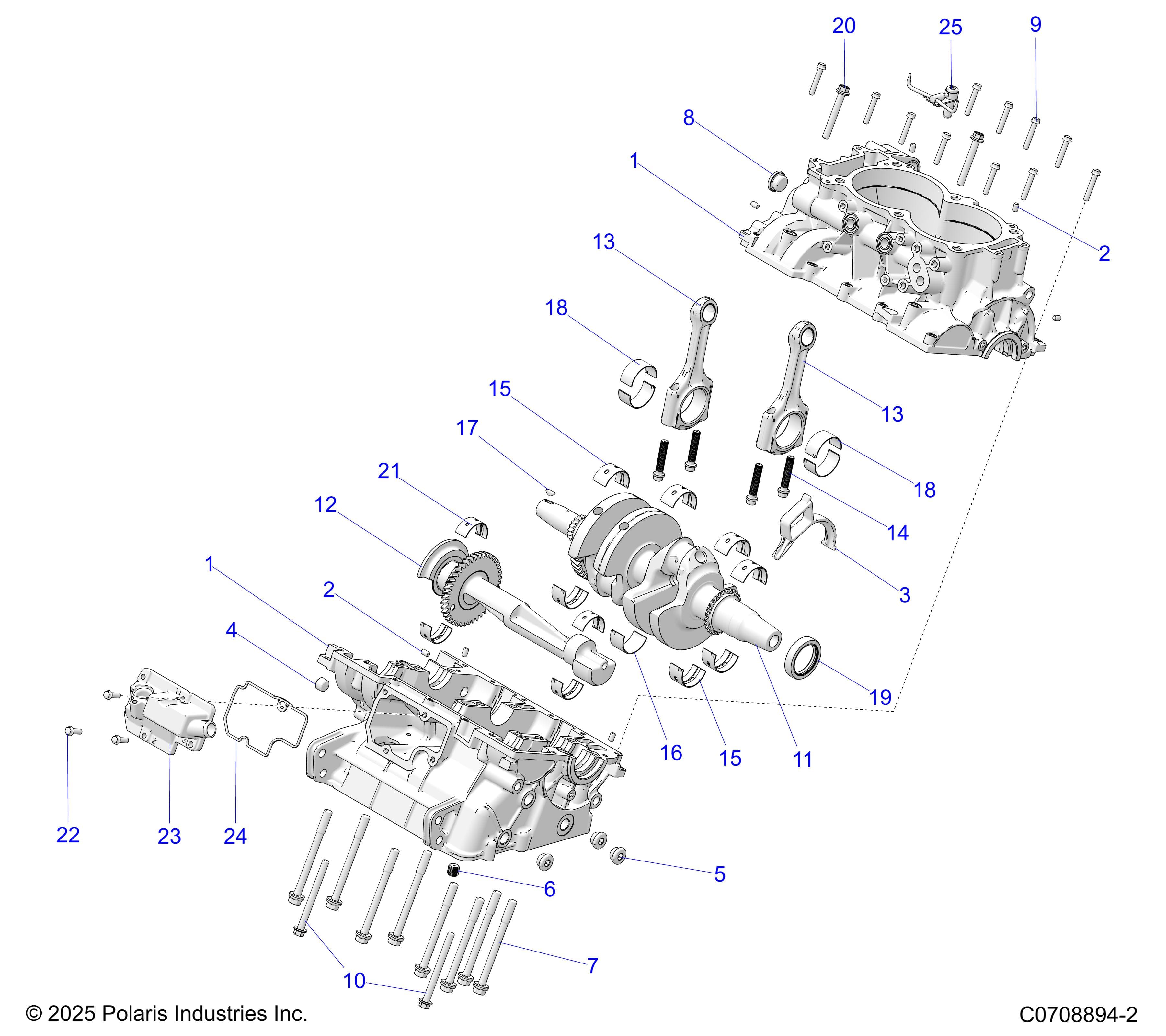

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241785
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 44 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2211921 | K-CRANKCASE 3024253 [INCLUDES 1-10] | 1 | $1,349.99 | Out of stock Est. Nov 11, 2026 | |
| 1 | 3024253 | ASM-CRANKCASE [INCLUDES 2-7] | 1 | Price TBD | Out of stock | |
| 2 | 5143560 | PIN-DOWEL,M6X10 | 8 | Price TBD | Out of stock | |
| 3 | 5455583 | DIVERTER, OIL DRAIN | 1 | Price TBD | Out of stock | |
| 4 | 7052413 | PLUG-3/8 NPT,HX/SOC W/SEALANT | 2 | Price TBD | Out of stock | |
| 5 | 7052642 | PLUG-HEX SCKT,W/O-RING,M16X1.5 | 3 | Price TBD | Out of stock | |
| 6 | 7518835 | PLUG-HEX SOCKET,1/4X18,SEALANT [TO 4/08/2026] | 2 | Price TBD | Out of stock | |
| 6 | 7528477 | PLUG-HEX SOCKET,1/4X18,SEALANT [FROM 4/08/2026] | 2 | Price TBD | Out of stock | |
| 7 | 7527904 | SCR-HXFL,M10X1.25X113MM 10.9 | 8 | Price TBD | Out of stock | |
| 8 | 7052643 | PLUG-HEX SCKT,W/O-RING,M20X1.5 | 1 | Price TBD | Out of stock | |
| 9 | 7518578 | SCR-HXFL-M6X1.0X35 8.8 ZY3 | 12 | Price TBD | Out of stock | |
| 10 | 7519154 | SCR-HXFLG,M8X1.25X90 | 2 | Price TBD | Out of stock | |
| 11 | 3023733 | ASM-CRANKSHAFT HVAC | 1 | $1,149.99 | In stock | |
| 12 | 1204835 | ASM-BALANCE SHAFT | 1 | Price TBD | Out of stock | |
| 13 | 3024355 | ASM-CONNECTING ROD [INCLUDES 14] | 2 | Price TBD | Out of stock | |
| 14 | 7520356 | BOLT-CONROD MJ9X1.0X44 | 4 | Price TBD | Out of stock | |
| 15 | 3515160-001 | BEARING-MAIN,G-90,41MM | 7 | Price TBD | Out of stock | |
| 15 | 3515160-002 | BEARING, MAIN, BLUE | 7 | Price TBD | Out of stock | |
| 15 | 3515160-003 | BEARING, MAIN, GREEN | 7 | Price TBD | Out of stock | |
| 15 | 3515160-004 | BEARING, MAIN, YELLOW | 7 | Price TBD | Out of stock | |
| 15 | 3515160-005 | BEARING, MAIN, RED | 7 | Price TBD | Out of stock | |
| 15 | 3515160-001 | BEARING-MAIN,G-90,41MM | 7 | Price TBD | Out of stock | |
| 15 | 3515160-002 | BEARING, MAIN, BLUE | 7 | Price TBD | Out of stock | |
| 15 | 3515160-003 | BEARING, MAIN, GREEN | 7 | Price TBD | Out of stock | |
| 15 | 3515160-004 | BEARING, MAIN, YELLOW | 7 | Price TBD | Out of stock | |
| 15 | 3515160-005 | BEARING, MAIN, RED | 7 | Price TBD | Out of stock | |
| 16 | 3515161-002 | BEARING-MAIN LRW, BLUE | 1 | Price TBD | Out of stock | |
| 16 | 3515161-003 | BEARING-MAIN LRW, GREEN | 1 | Price TBD | Out of stock | |
| 16 | 3515161-004 | BEARING-MAIN LRW, YELLOW | 1 | Price TBD | Out of stock | |
| 17 | 7721122 | KEY-WOODRUFF,4X5 | 1 | Price TBD | Out of stock | |
| 18 | 3515159-001 | BEARING, CONNECTING ROD, WHITE | 4 | Price TBD | Out of stock | |
| 18 | 3515159-002 | BEARING, CONNECTING ROD, BLUE | 4 | Price TBD | Out of stock | |
| 18 | 3515159-003 | BEARING, CONNECTING ROD, GREEN | 4 | Price TBD | Out of stock | |
| 18 | 3515159-004 | BEARING, CONNECTING ROD, YELLOW | 4 | Price TBD | Out of stock | |
| 18 | 3515159-001 | BEARING, CONNECTING ROD, WHITE | 4 | Price TBD | Out of stock | |
| 18 | 3515159-002 | BEARING, CONNECTING ROD, BLUE | 4 | Price TBD | Out of stock | |
| 18 | 3515159-003 | BEARING, CONNECTING ROD, GREEN | 4 | Price TBD | Out of stock | |
| 18 | 3515159-004 | BEARING, CONNECTING ROD, YELLOW | 4 | Price TBD | Out of stock | |
| 19 | 3610284 | SEAL-CRANKSHAFT [TO 4/1/2026] | 1 | Price TBD | Out of stock | |
| 19 | 3610419 | SEAL-CRANKSHAFT 40MM [FROM 4/1/2026] | 1 | Price TBD | Out of stock | |
| 20 | 7519186 | SCR-HXFLG,M8X1.25X60 | 2 | Price TBD | Out of stock | |
| 21 | 3514756 | BEARING-BAL SHAFT,38X41X17.5 | 4 | Price TBD | Out of stock | |
| 22 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 3 | Price TBD | Out of stock | |
| 23 | 5143720 | COVER-BREATHER,MACH | 1 | Price TBD | Out of stock | |
| 24 | 5813759 | SEAL-COVER,BREATHER | 1 | Price TBD | Out of stock | |
| 25 | 3022856 | JET, PISTON | 1 | $54.99 | In stock |
